Female Header Connector

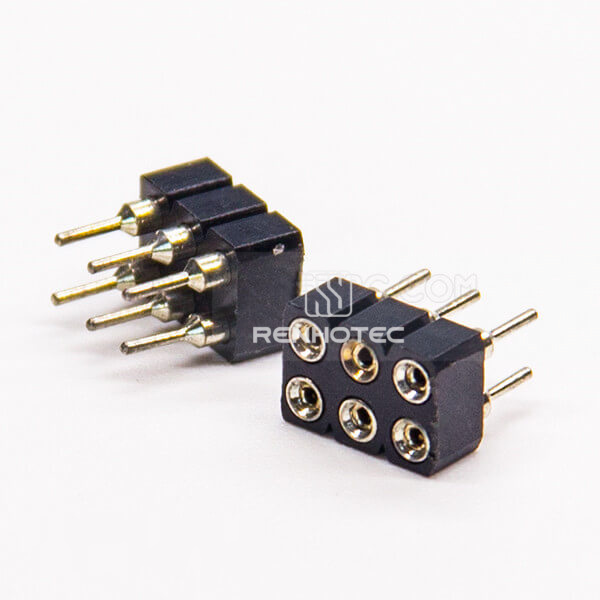

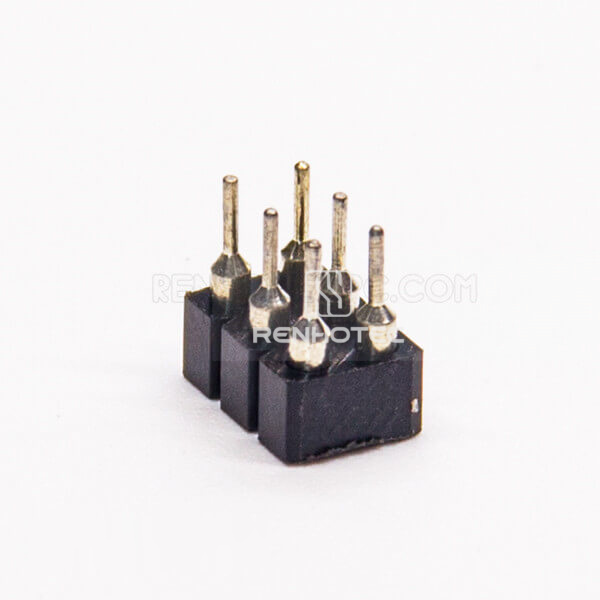

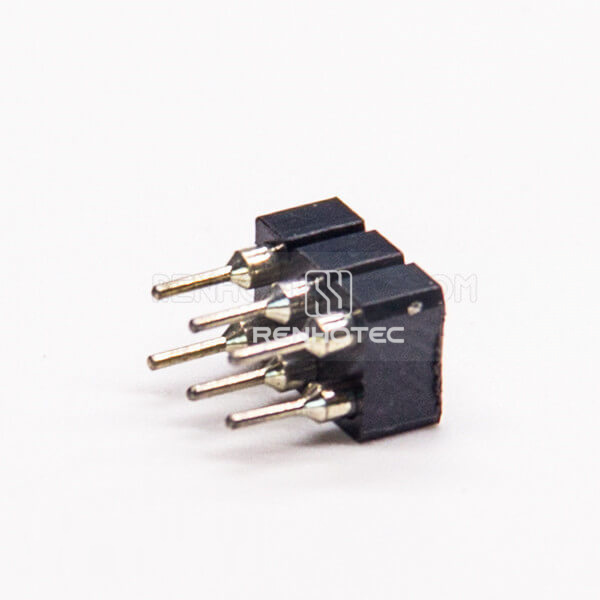

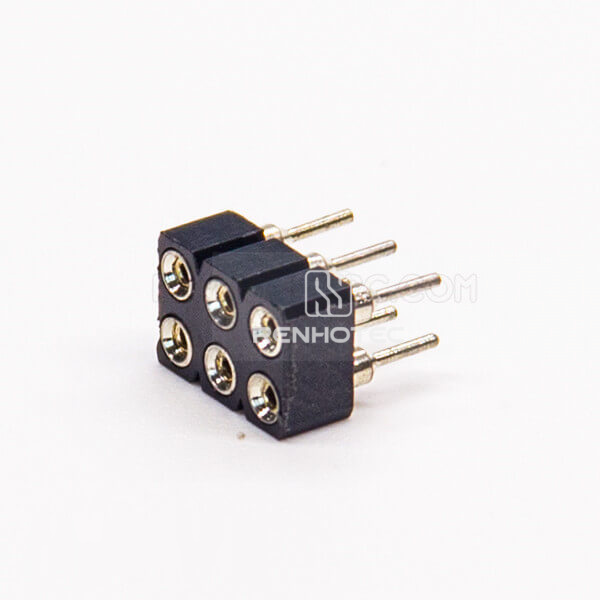

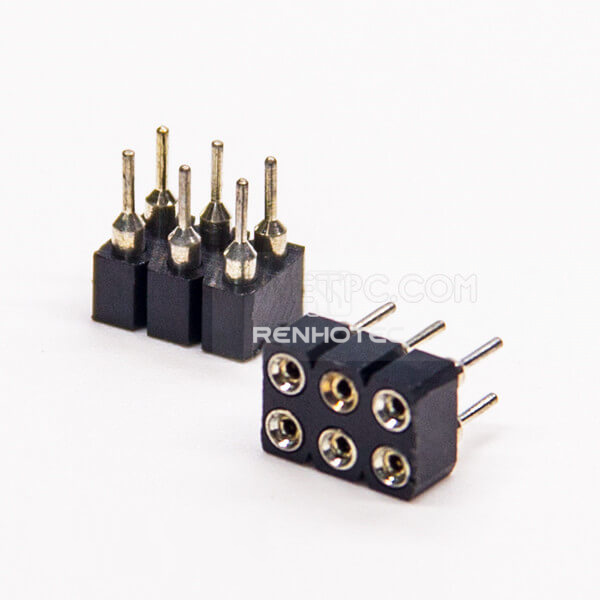

Circular Holes Female Header Dual Row 6 Way 2.54mm Pitch Through Hole

Public Part No. RHT-604-2010

Circular Holes Female Header Dual Row 6 Way 2.54mm Pitch Through Hole
Enlarge image
Circular Holes Female Header Dual Row 6 Way 2.54mm Pitch Through HoleCircular Holes Female Header Dual Row 6 Way 2.54mm Pitch Through HoleCircular Holes Female Header Dual Row 6 Way 2.54mm Pitch Through HoleCircular Holes Female Header Dual Row 6 Way 2.54mm Pitch Through HoleCircular Holes Female Header Dual Row 6 Way 2.54mm Pitch Through Hole

Key specifications

Pin Count
6 Pin
Gender
Female
Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

2.54 mm pitch 6-contact dual-row straight female header for through-hole mounting. Circular-hole version.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
6 Pin
Gender
Female
Orientation
Straight
Mounting Type
Through Hole
Pitch
2.54 mm
Number of Rows
Dual Row
Construction detail
Circular Holes

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
