Female Header Connector

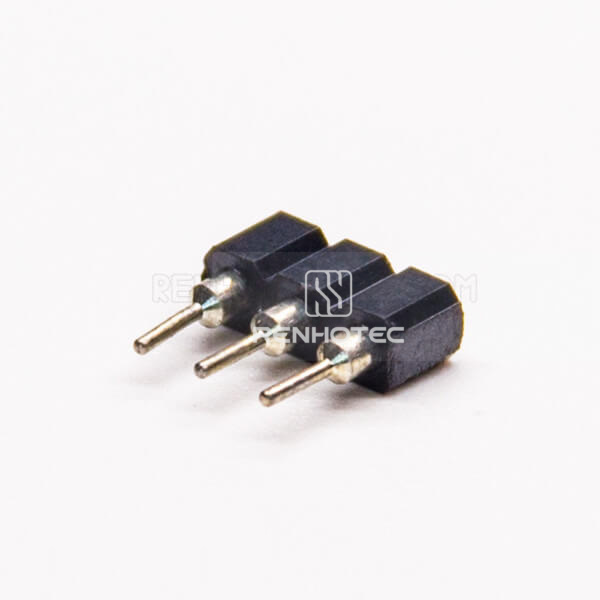

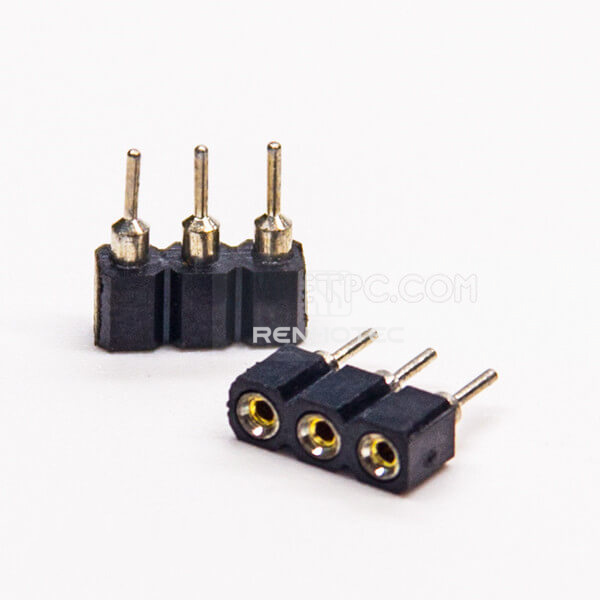

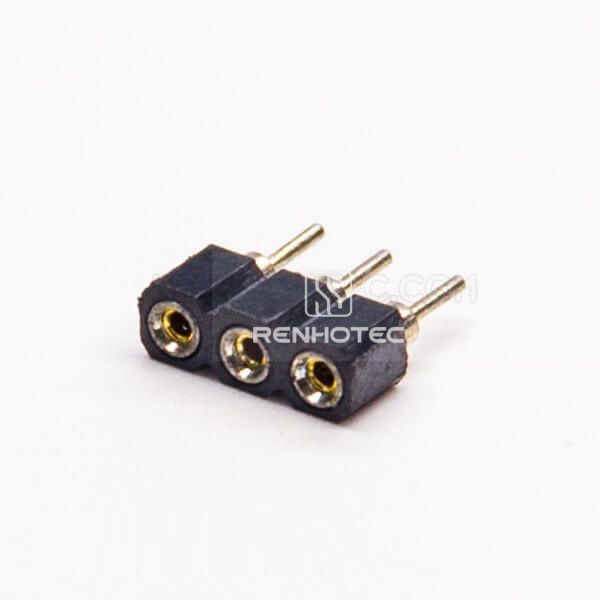

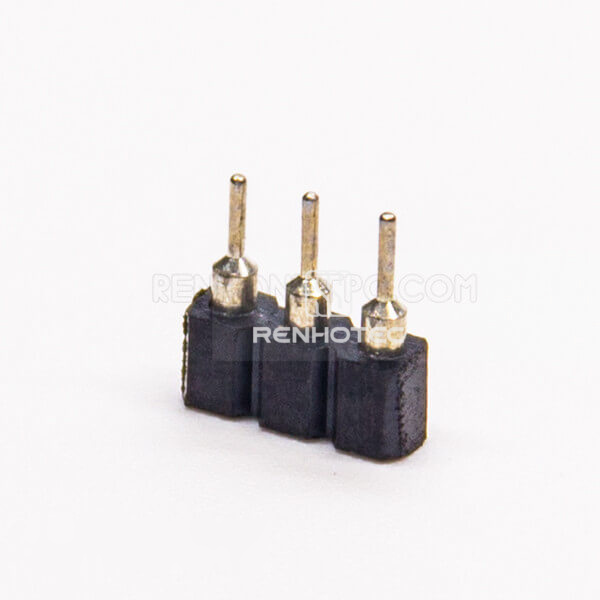

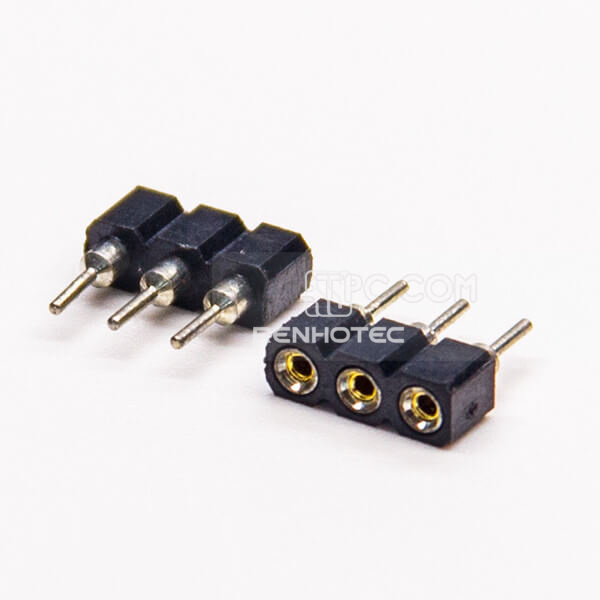

Circular Holes Single Row 3 way 2.54mm Pitch Female Header DIP Type

Public Part No. RHT-604-2009

Circular Holes Single Row 3 way 2.54mm Pitch Female Header DIP Type
Enlarge image
Circular Holes Single Row 3 way 2.54mm Pitch Female Header DIP TypeCircular Holes Single Row 3 way 2.54mm Pitch Female Header DIP TypeCircular Holes Single Row 3 way 2.54mm Pitch Female Header DIP TypeCircular Holes Single Row 3 way 2.54mm Pitch Female Header DIP TypeCircular Holes Single Row 3 way 2.54mm Pitch Female Header DIP Type

Key specifications

Pin Count
3 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Request QuoteFull specifications

Overview

2.54 mm pitch 3-contact single-row straight female header for DIP mounting. Circular-hole version.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
3 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Pitch
2.54 mm
Number of Rows
Single Row
Construction detail
Circular Holes

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
