Female Header Connector

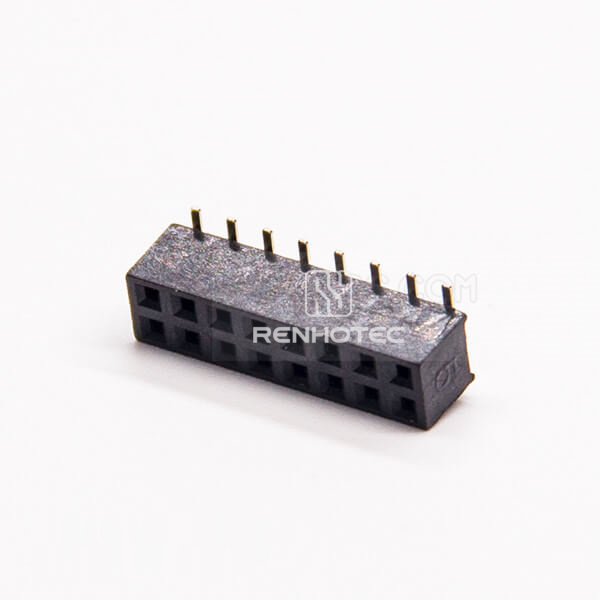

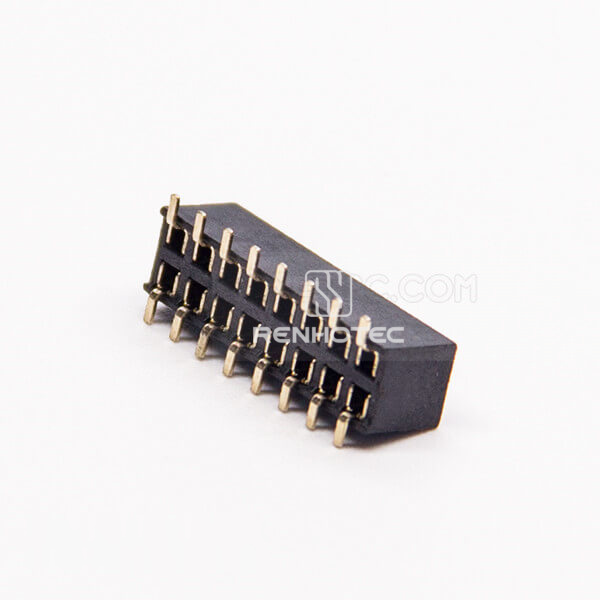

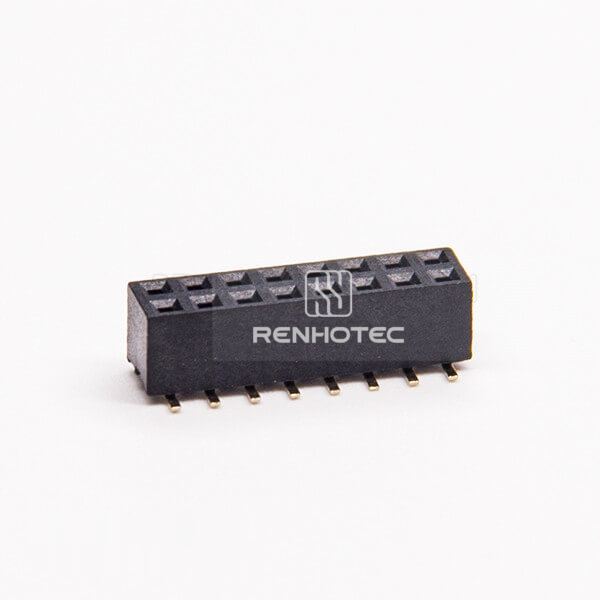

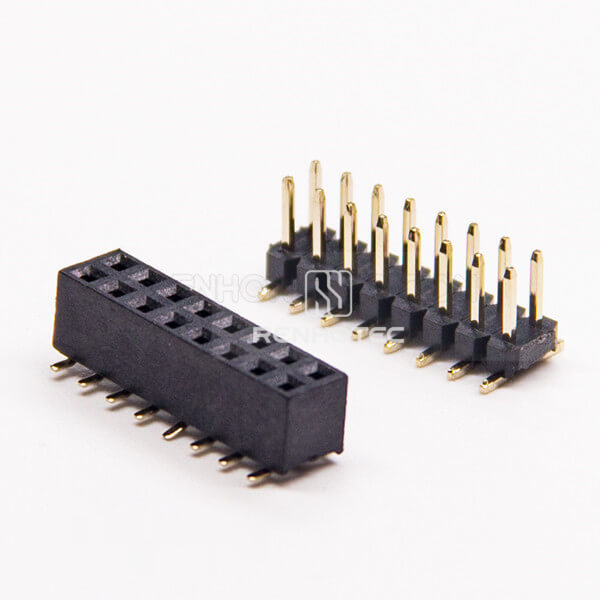

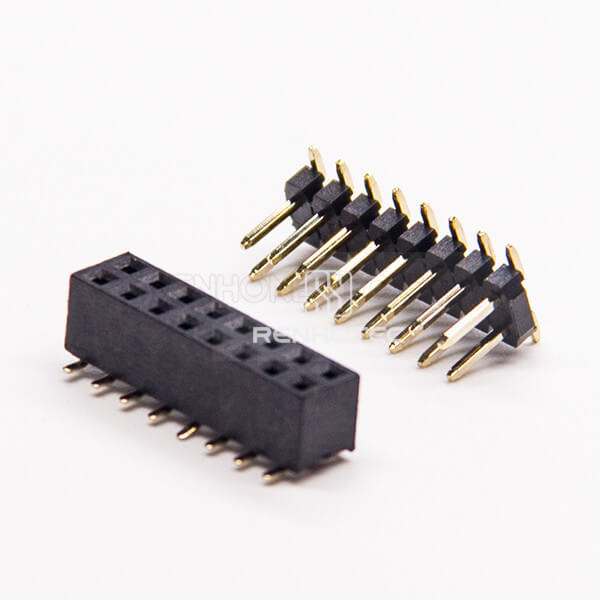

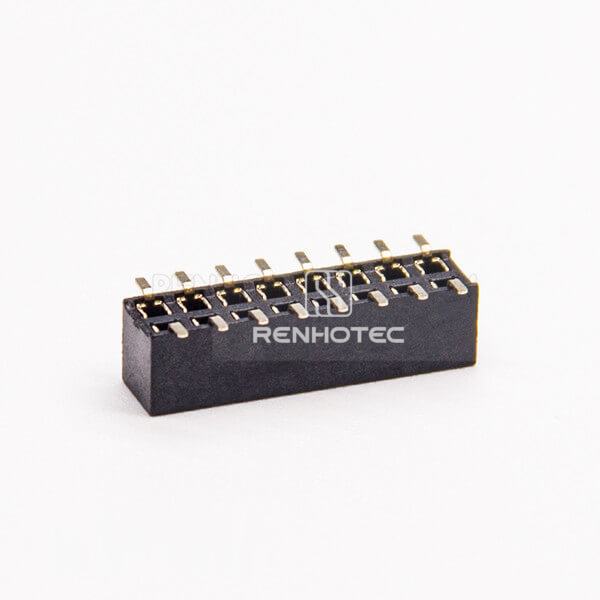

16-Pin Female Header, 2.0×1.5 PH, Straight SMT

Public Part No. RHT-604-2008

16-Pin Female Header, 2.0×1.5 PH, Straight SMT
Enlarge image
16-Pin Female Header, 2.0×1.5 PH, Straight SMT16-Pin Female Header, 2.0×1.5 PH, Straight SMT16-Pin Female Header, 2.0×1.5 PH, Straight SMT16-Pin Female Header, 2.0×1.5 PH, Straight SMT16-Pin Female Header, 2.0×1.5 PH, Straight SMT16-Pin Female Header, 2.0×1.5 PH, Straight SMT

Key specifications

Pin Count
16 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
SMT
Number of Rows
Dual Row
Pin Count
16 Pin
Pitch notation
2.0 × 1.5 PH
Contact configuration
16 Pin

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
