Female Header Connector

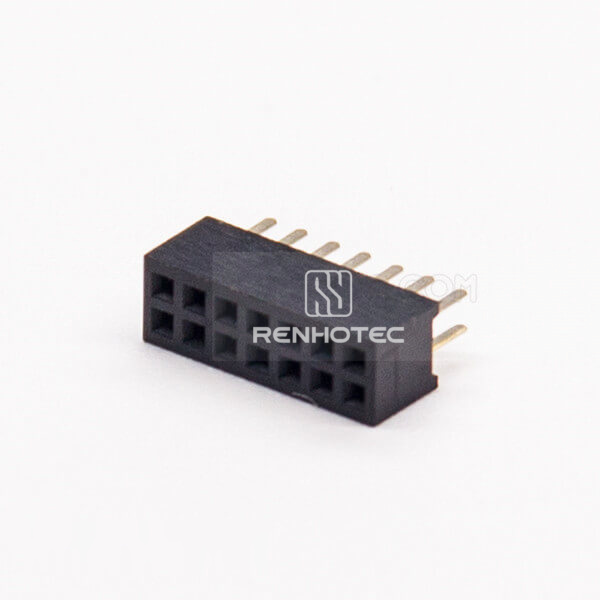

Female Header Connector RHT-604-2005

Part No.RHT-604-2005

1.27 mm pitch dual-row straight female header for through-hole mounting.

  • GenderFemale
  • OrientationStraight
  • Mounting TypeThrough Hole

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
Through Hole
Pitch
1.27 mm
Number of Rows
Dual Row
Contact configuration
Female Header 14 Pin 180 Degree Dual Row 2×7PIN Through Hole 1.27mm Center Spacing

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C

Before you specify

Selection guide

1.27 mm pitch dual-row straight female header for through-hole mounting. Contact arrangement: 2×7 (14 contacts).

RHT-604-2005
