Female Header Connector

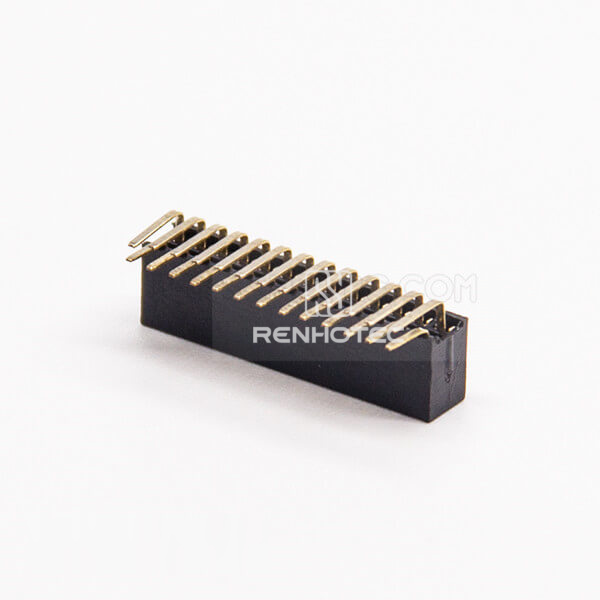

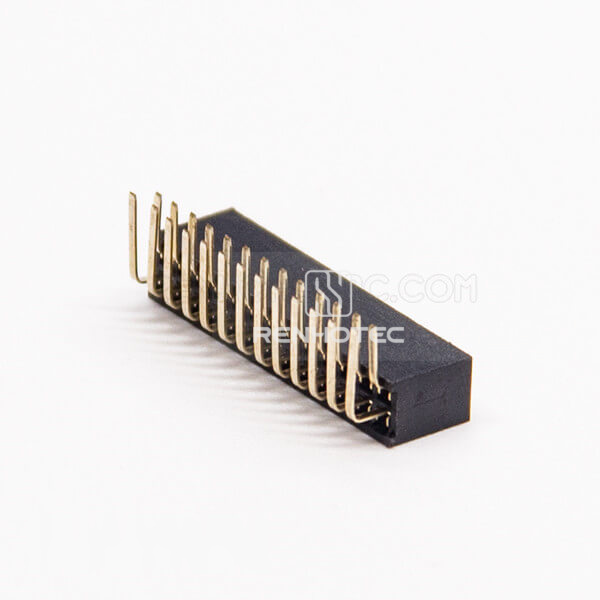

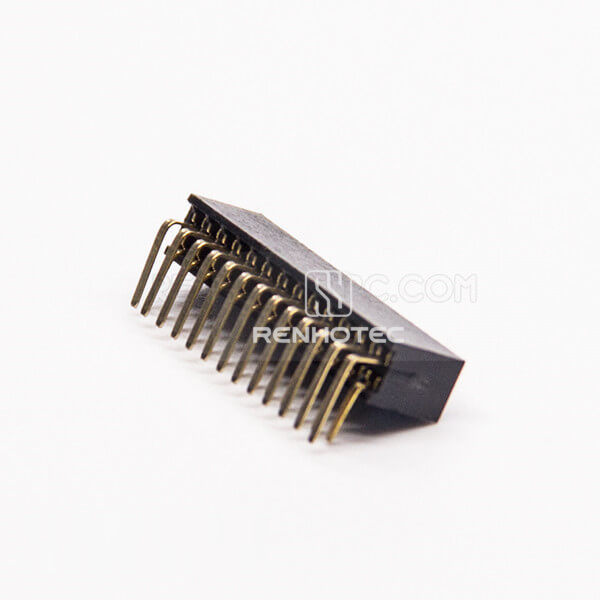

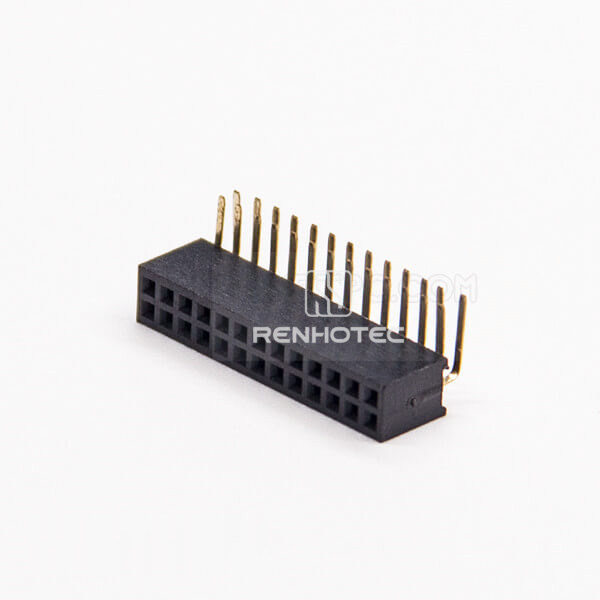

Pin Header Connector Female 1.27 2×13PIN Right Angled DIP

Part No.RHT-604-2004

1.27 mm pitch dual-row right-angle female header for DIP mounting.

  • GenderFemale
  • OrientationRight Angle
  • Mounting TypeDIP

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Female
Orientation
Right Angle
Mounting Type
DIP
Pitch
1.27 mm
Number of Rows
Dual Row
Contact configuration
2×13PIN
Dimension H notation
H4.3

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C

Before you specify

Selection guide

1.27 mm pitch dual-row right-angle female header for DIP mounting. Contact arrangement: 2×13; H designation: H4.3.

RHT-604-2004
