Female Header Connector

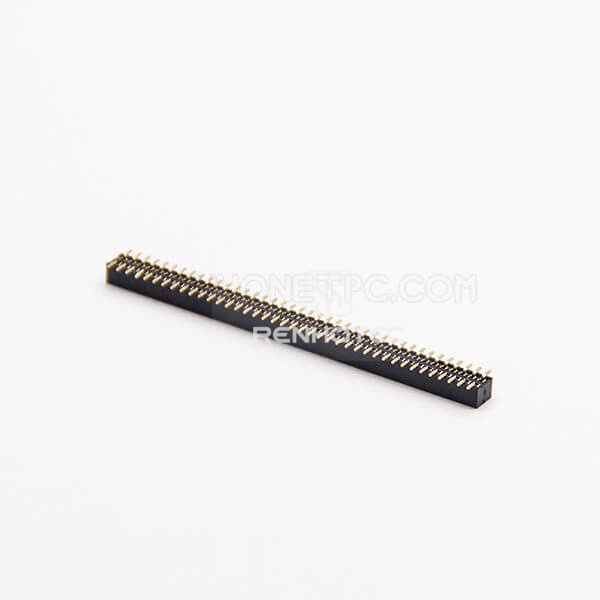

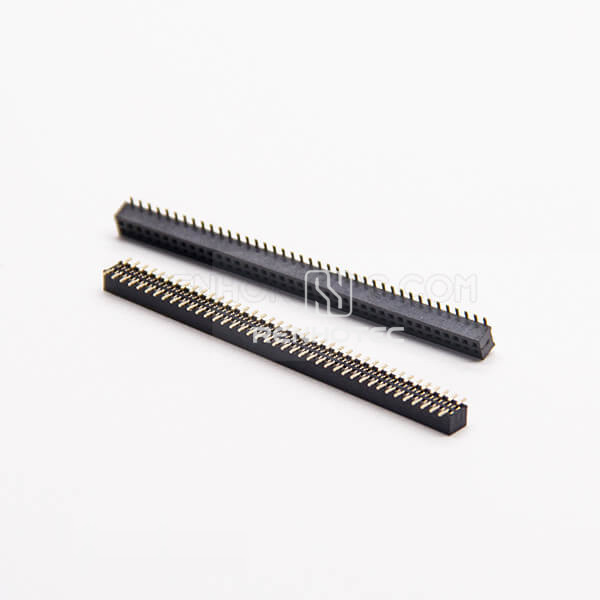

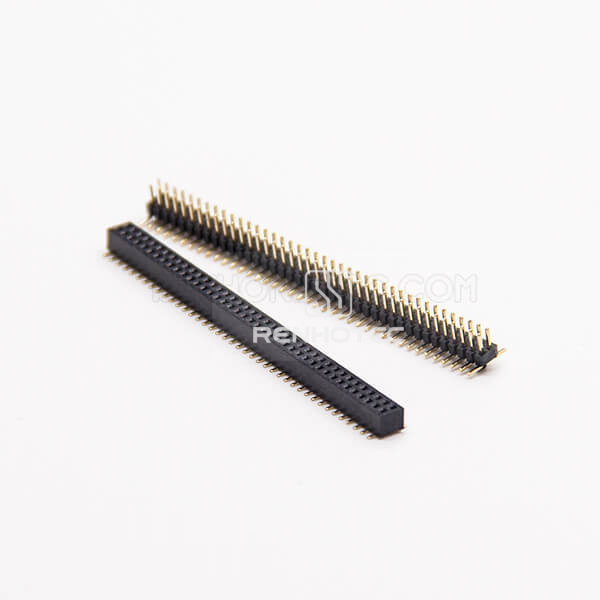

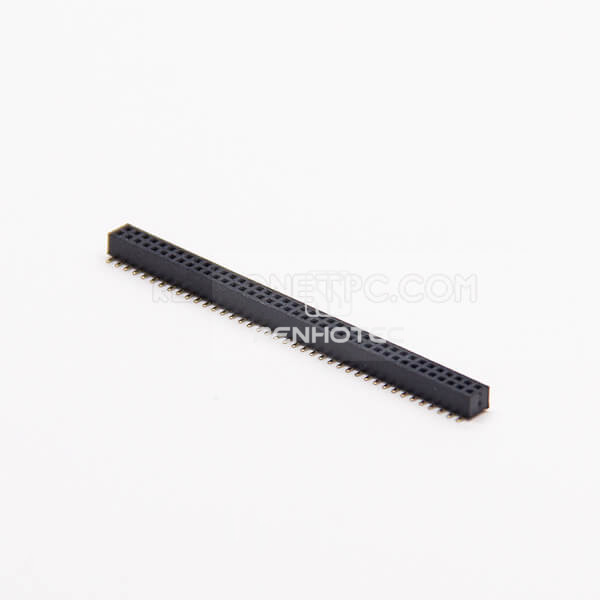

Female Header Connector RHT-604-2002

Part No.RHT-604-2002

Dual-row straight female header for SMT mounting.

  • GenderFemale
  • OrientationStraight
  • Mounting TypeSMT

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
SMT
Number of Rows
Dual Row
Pitch notation
1.0 PH
Contact configuration
2×40 PIN

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C

Before you specify

Selection guide

Dual-row straight female header for SMT mounting. Contact arrangement: 2×40. Pitch notation: 1.0 PH.

RHT-604-2002
