Female Header Connector

40Pin DIP Female Header Circular Holes 2.54mm Picth

Public Part No. RHT-603-3057

40Pin DIP Female Header Circular Holes 2.54mm Picth
Enlarge image
40Pin DIP Female Header Circular Holes 2.54mm Picth40Pin DIP Female Header Circular Holes 2.54mm Picth40Pin DIP Female Header Circular Holes 2.54mm Picth40Pin DIP Female Header Circular Holes 2.54mm Picth

Key specifications

Pin Count
40 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Request QuoteFull specifications

Overview

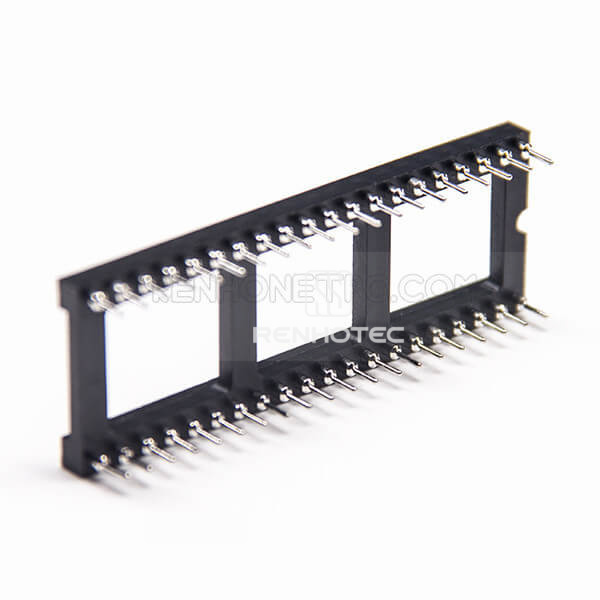

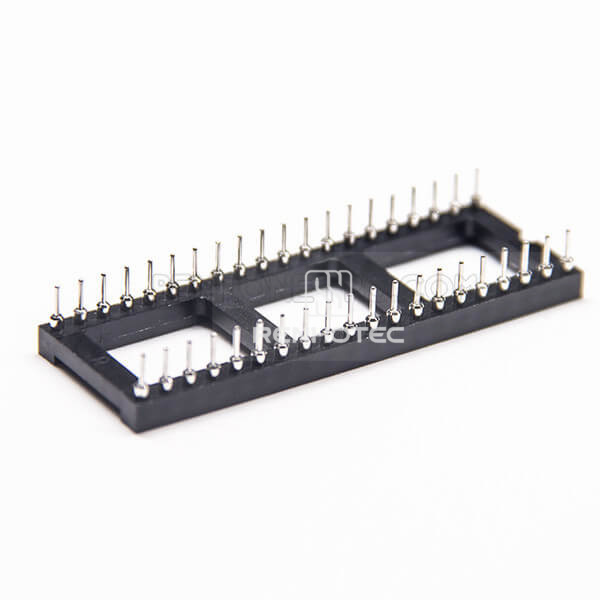

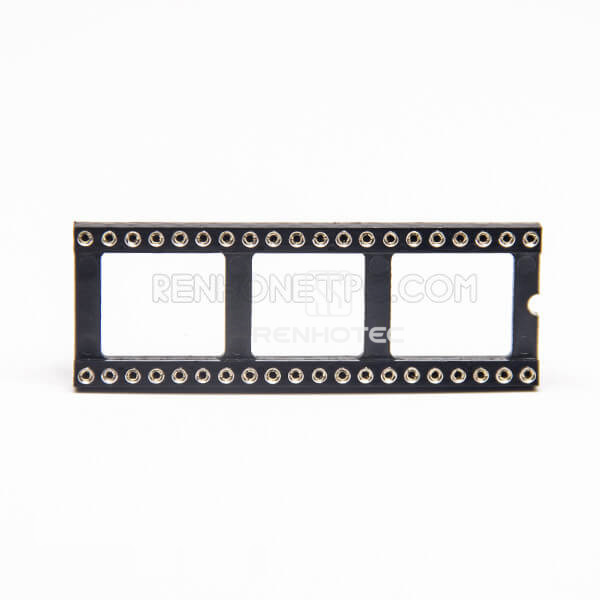

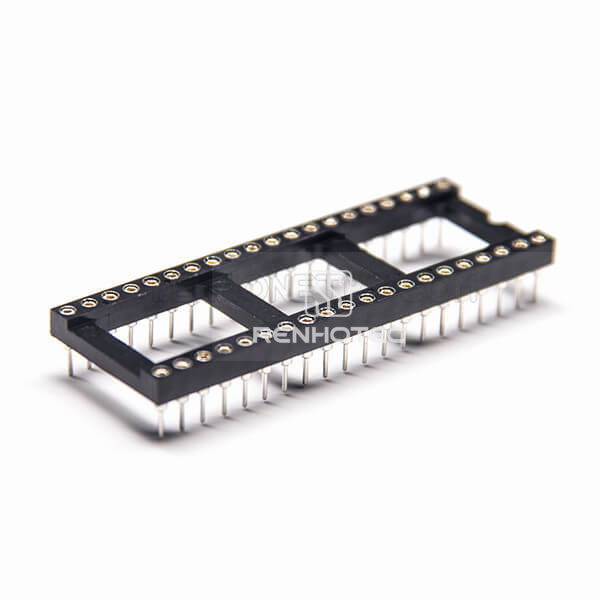

2.54 mm pitch 40-contact dual-row straight female header for DIP mounting. Circular-hole version. Dimension H: 3 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
40 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Construction detail
Circular
Dimension H
3 mm

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
