Pin Header Connector

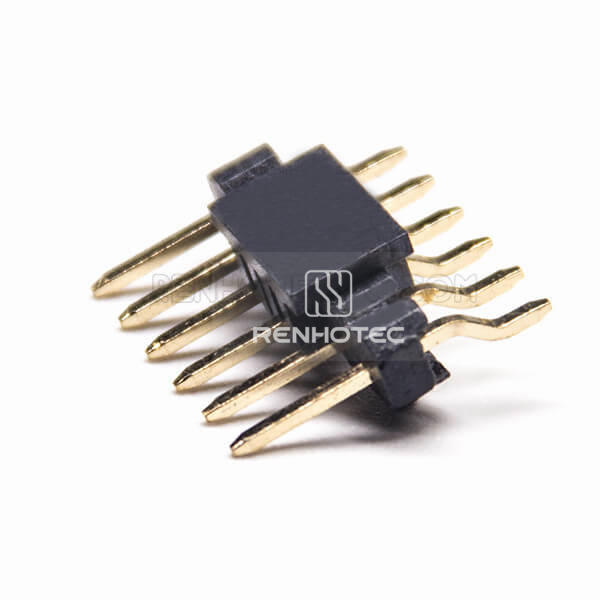

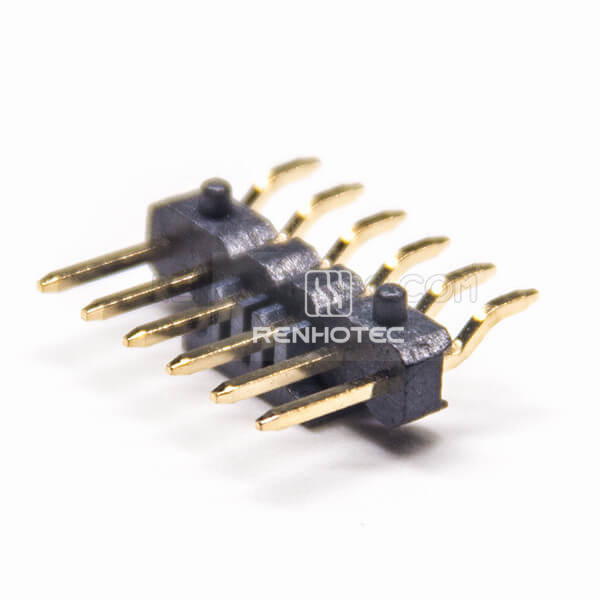

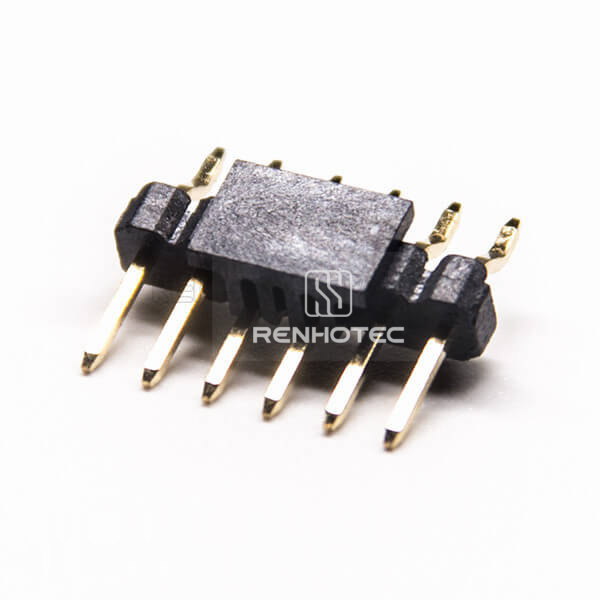

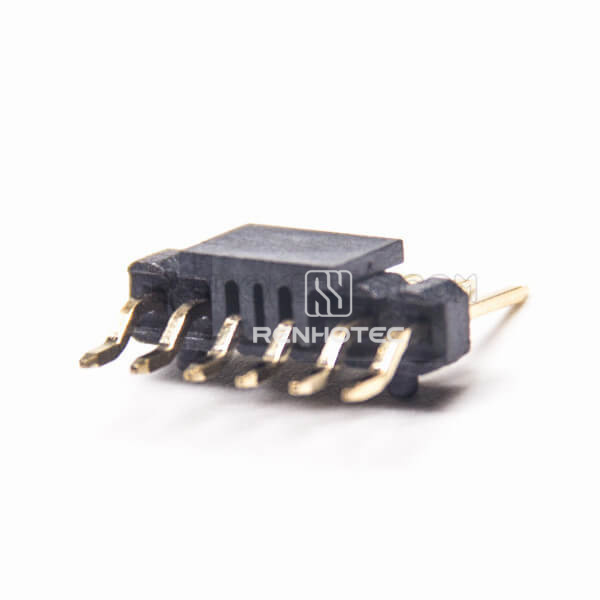

Single Row Pin Header SMT 180 Degree 2.54mm Center Spacing

Public Part No. RHT-603-3051

Single Row Pin Header SMT 180 Degree 2.54mm Center Spacing
Enlarge image
Single Row Pin Header SMT 180 Degree 2.54mm Center SpacingSingle Row Pin Header SMT 180 Degree 2.54mm Center SpacingSingle Row Pin Header SMT 180 Degree 2.54mm Center SpacingSingle Row Pin Header SMT 180 Degree 2.54mm Center Spacing

Key specifications

Pin Count
6 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with 6 Pin, Male, Straight. Mounting: SMT.

Termination Type: Solder Type. Pitch: 2.54 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
6 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Single Row
Dimension H
2.5 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
