Pin Header Connector

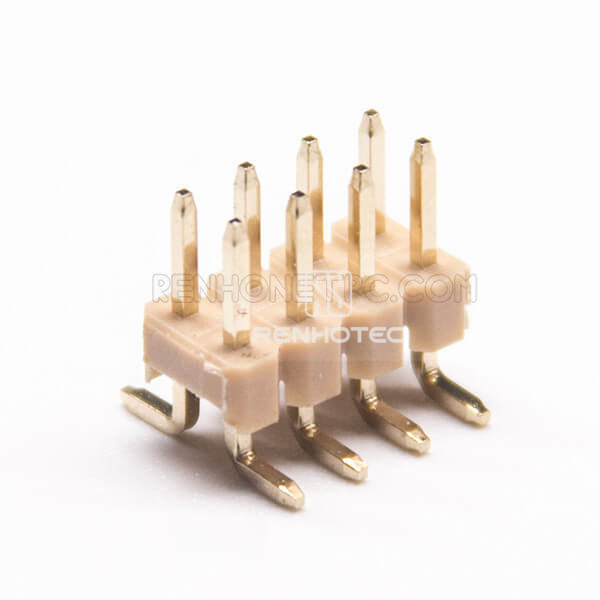

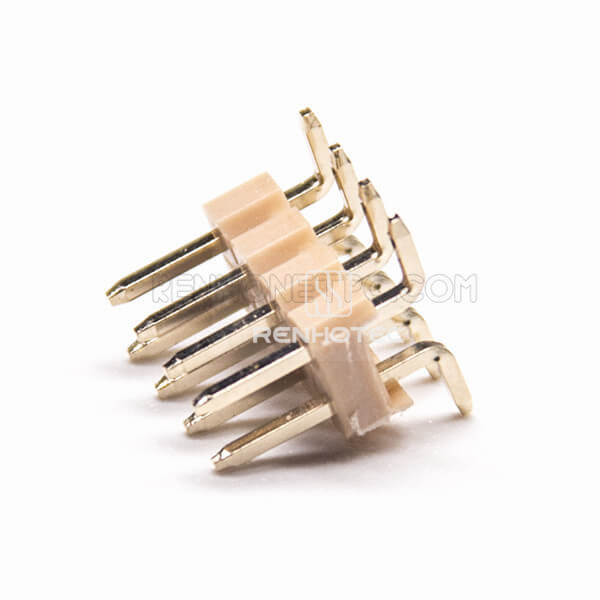

SMT PCB Header Dual Row 8 Way White Plastic 2.54mm Pitch
8-contact dual-row male header with 2.54 mm pitch; straight SMT mounting. Color: white. Dimension H: 2.5 mm.
- Pin Count8 Pin
- GenderMale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Pin Count
- 8 Pin
- Gender
- Male
- Orientation
- Straight
- Mounting Type
- SMT
- Termination Type
- Solder Type
- Pitch
- 2.54 mm
- Number of Rows
- Dual Row
- Dimension H
- 2.5 mm
- Construction detail
- Square
Material
- Contact Plating
- Gold Plating
- Color
- White
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Before you specify
Selection guide
Pin Header Connector with 8 Pin, Male, Straight. Mounting: SMT.
Termination Type: Solder Type. Pitch: 2.54 mm.
This dual-row header has white plastic. Dimension H is 2.5 mm.
RHT-603-3050
