5 Pin Header Connector 2.54mm Pitch 180 Degree SMT Type

Public Part No. RHT-603-3048

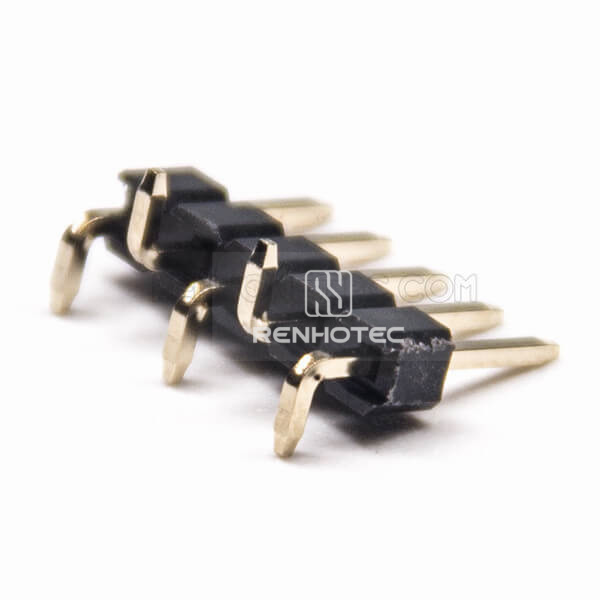

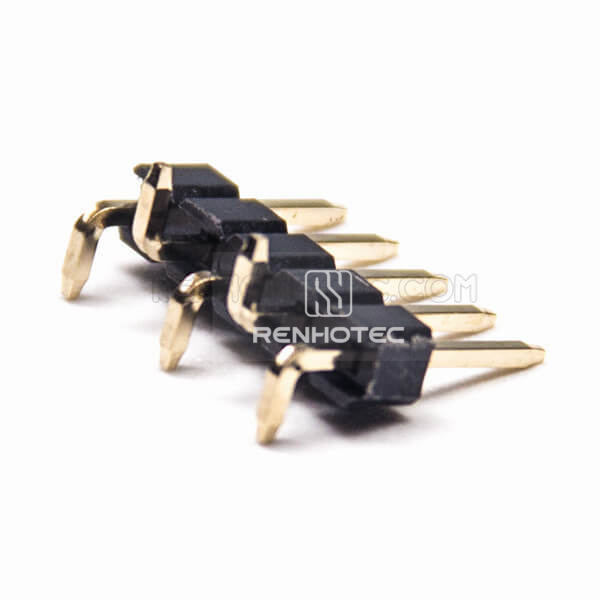

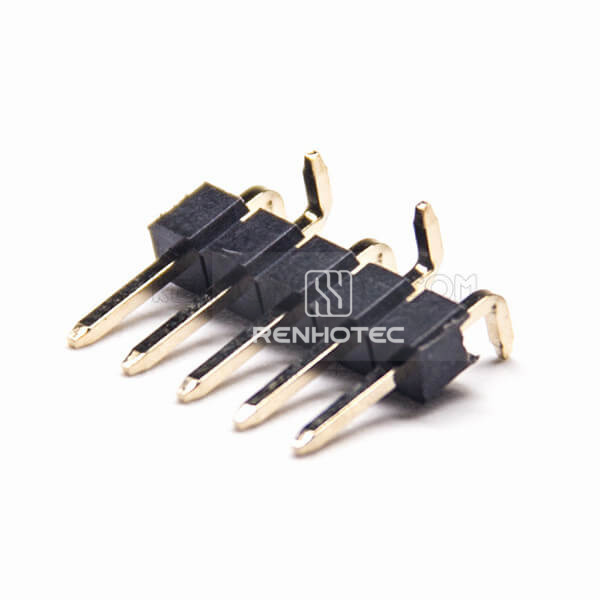

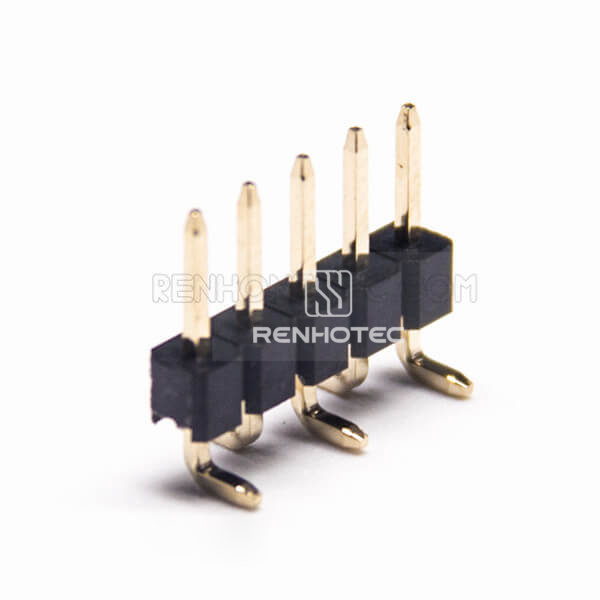

5 Pin Header Connector 2.54mm Pitch 180 Degree SMT Type
Enlarge image
5 Pin Header Connector 2.54mm Pitch 180 Degree SMT Type5 Pin Header Connector 2.54mm Pitch 180 Degree SMT Type5 Pin Header Connector 2.54mm Pitch 180 Degree SMT Type5 Pin Header Connector 2.54mm Pitch 180 Degree SMT Type

Key specifications

Pin Count
5 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with 5 Pin, Male, Straight. Mounting: SMT.

Termination Type: Solder Type. Pitch: 2.54 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
5 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Single Row
Dimension H
2.5 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
