Pin Header Connector

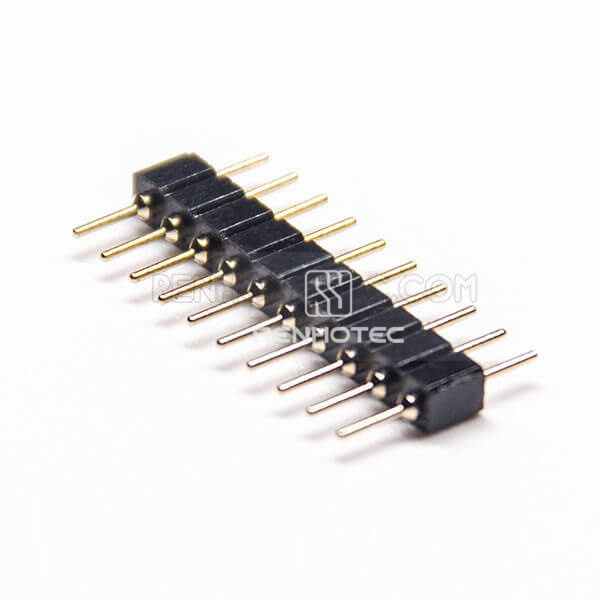

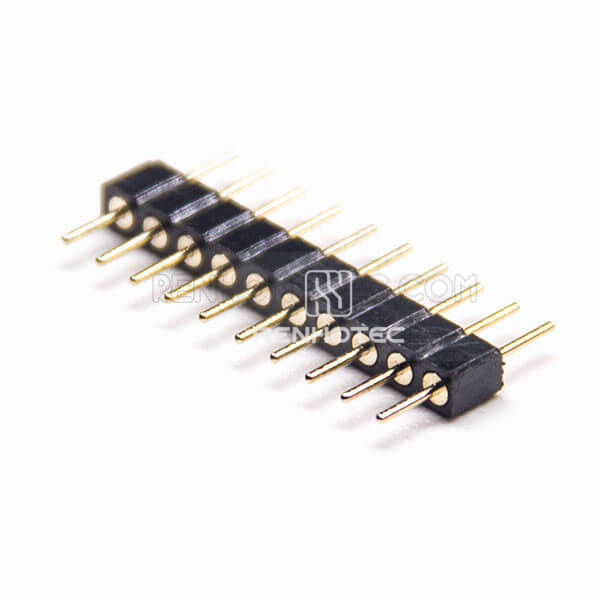

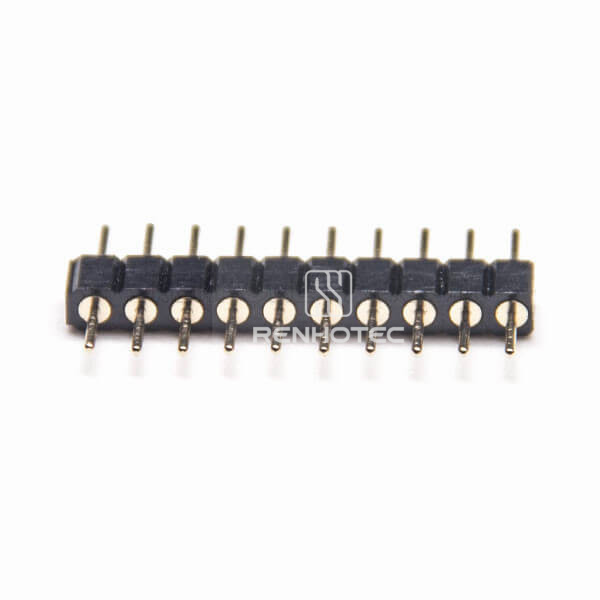

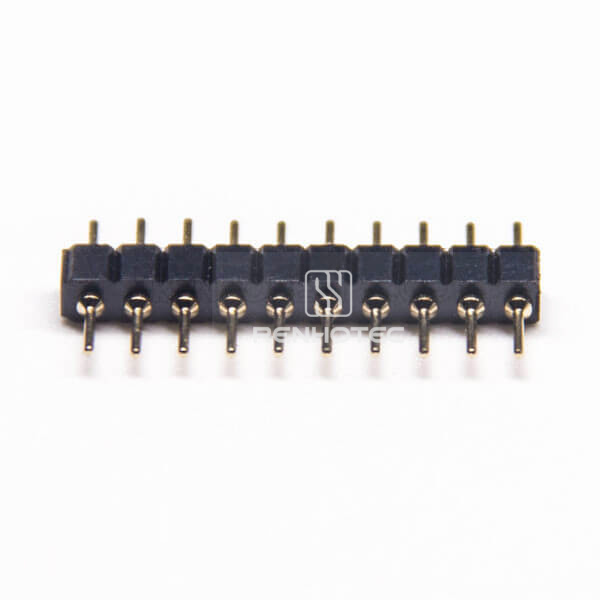

Single Row Header Connector 10 Pin Straight 2.0mm Picth Dip

Public Part No. RHT-603-3046

Single Row Header Connector 10 Pin Straight 2.0mm Picth Dip
Enlarge image
Single Row Header Connector 10 Pin Straight 2.0mm Picth DipSingle Row Header Connector 10 Pin Straight 2.0mm Picth DipSingle Row Header Connector 10 Pin Straight 2.0mm Picth DipSingle Row Header Connector 10 Pin Straight 2.0mm Picth Dip

Key specifications

Pin Count
10 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with 10 Pin, Male, Straight. Mounting: DIP.

Termination Type: Solder Type. Pitch: 2 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
10 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2 mm
Number of Rows
Single Row
Construction detail
Circular
Dimension H
2.8 mm

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
