Pin Header Connector

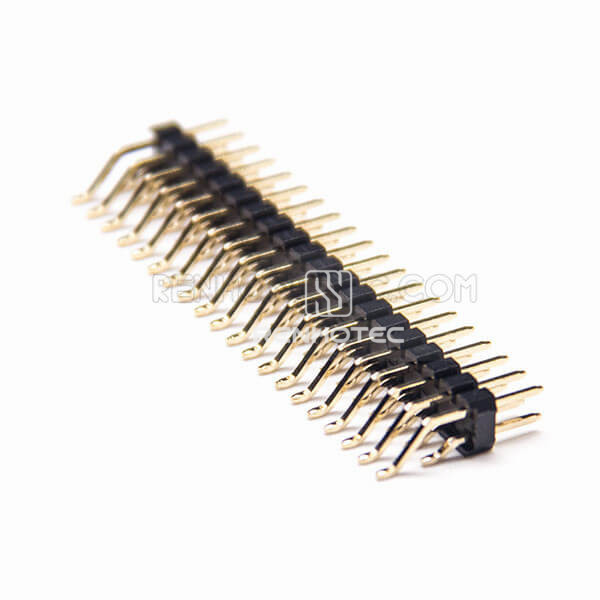

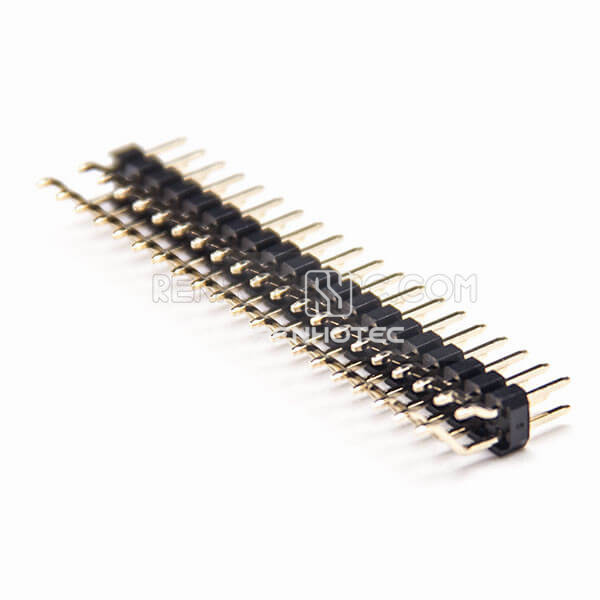

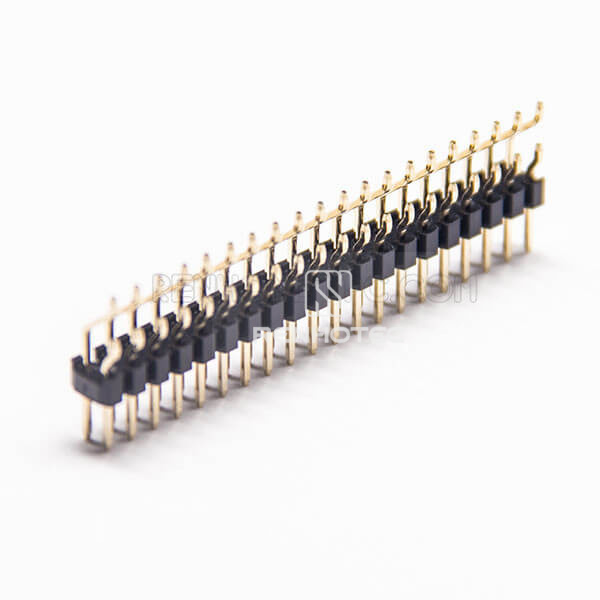

2.0mm Pitch Header Double Row 40 Pin SMT Type

Public Part No. RHT-603-3045

2.0mm Pitch Header Double Row 40 Pin SMT Type
Enlarge image
2.0mm Pitch Header Double Row 40 Pin SMT Type2.0mm Pitch Header Double Row 40 Pin SMT Type2.0mm Pitch Header Double Row 40 Pin SMT Type

Key specifications

Pin Count
40 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with 40 Pin, Female, Straight. Mounting: SMT.

Termination Type: Solder Type. Pitch: 2 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
40 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
2 mm
Number of Rows
Dual Row
Dimension H
2 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
