Pin Header Connector

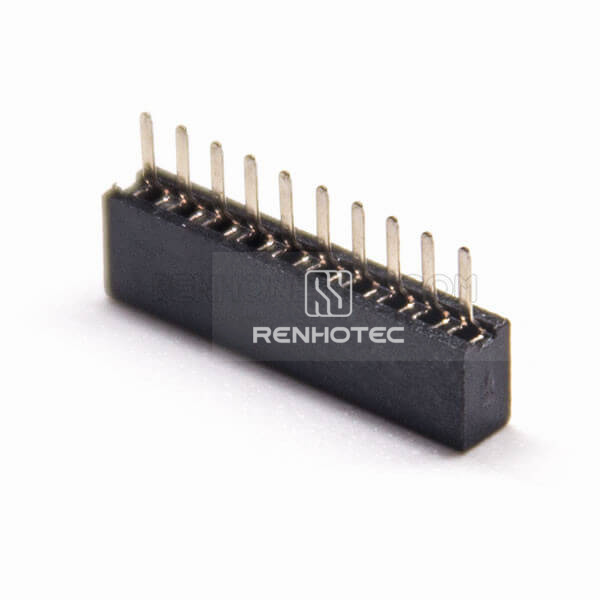

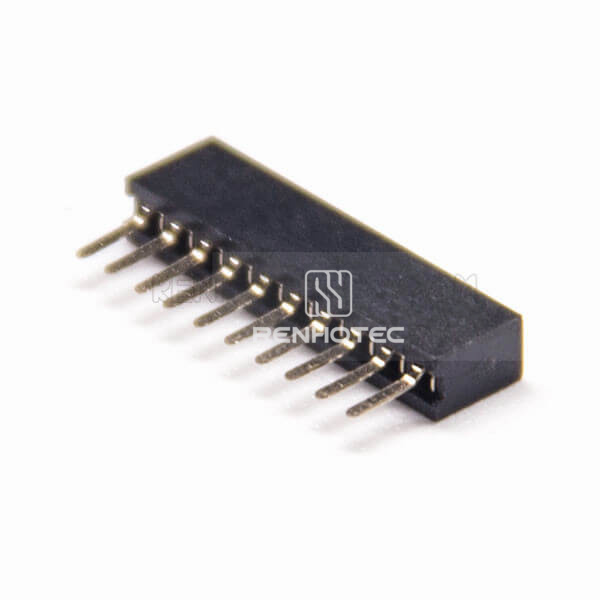

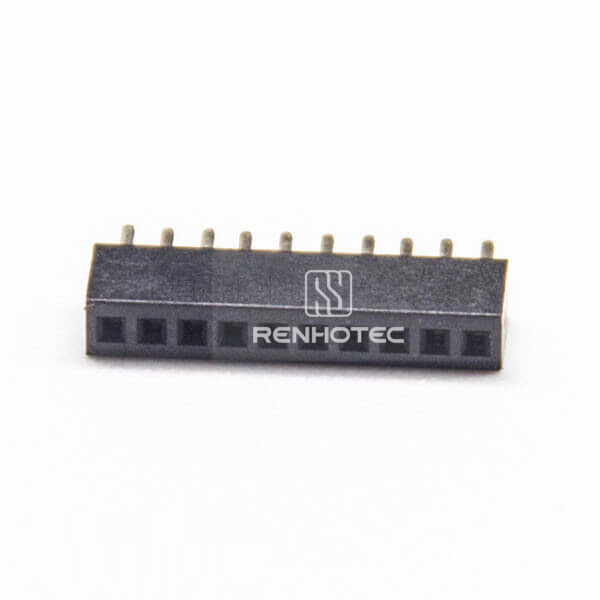

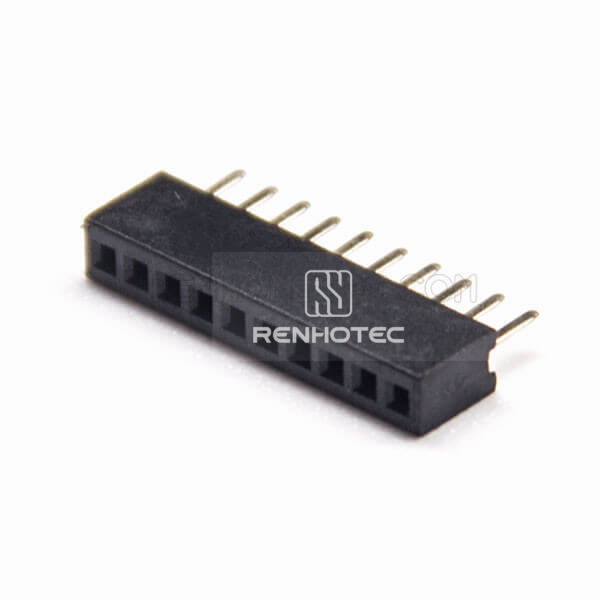

Single Row Female Pin Header 180 Degree 1.27mm Picth Through Hole

Public Part No. RHT-603-3044

Single Row Female Pin Header 180 Degree 1.27mm Picth Through Hole
Enlarge image
Single Row Female Pin Header 180 Degree 1.27mm Picth Through HoleSingle Row Female Pin Header 180 Degree 1.27mm Picth Through HoleSingle Row Female Pin Header 180 Degree 1.27mm Picth Through HoleSingle Row Female Pin Header 180 Degree 1.27mm Picth Through Hole

Key specifications

Pin Count
8 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with 8 Pin, Female, Straight. Mounting: DIP, Through Hole.

Termination Type: Solder Type. Pitch: 1.27 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
8 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Pitch
1.27 mm
Number of Rows
Single Row
Dimension H
3.4 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
