Pin Header Connector

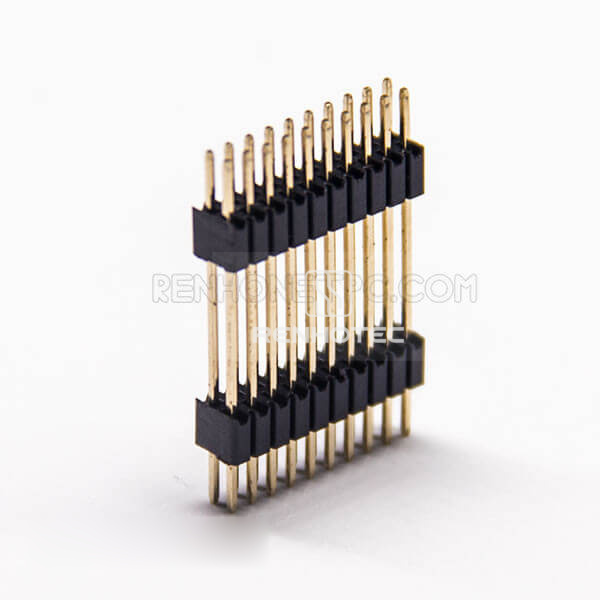

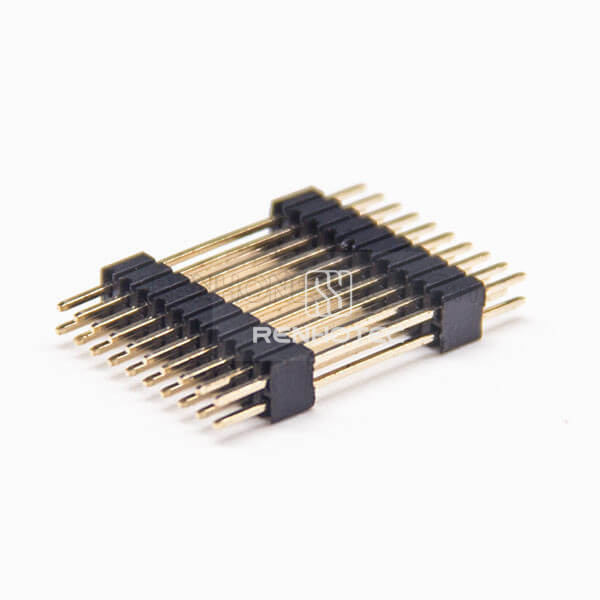

Double Row Header Connector Straight Dual Plastic 20 Way 1.27mm Picth Dip

Part No.RHT-603-3043

20-contact dual-row male header with 1.27 mm pitch; straight DIP mounting. Dimension H: 2.5 mm.

  • Pin Count20 Pin
  • GenderMale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
20 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
1.27 mm
Number of Rows
Dual Row
Dimension H
2.5 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Before you specify

Selection guide

Pin Header Connector with 20 Pin, Male, Straight. Mounting: DIP.

Termination Type: Solder Type. Pitch: 1.27 mm.

This dual-row header uses a double-plastic construction. Dimension H is 2.5 mm.

RHT-603-3043
