Pin Header Connector

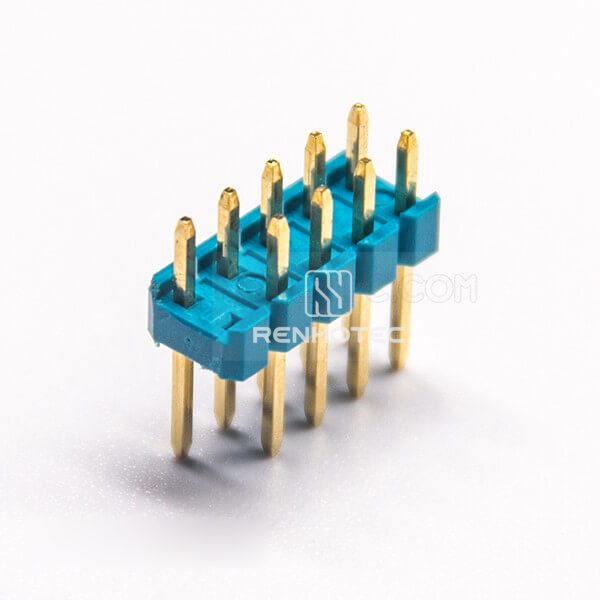

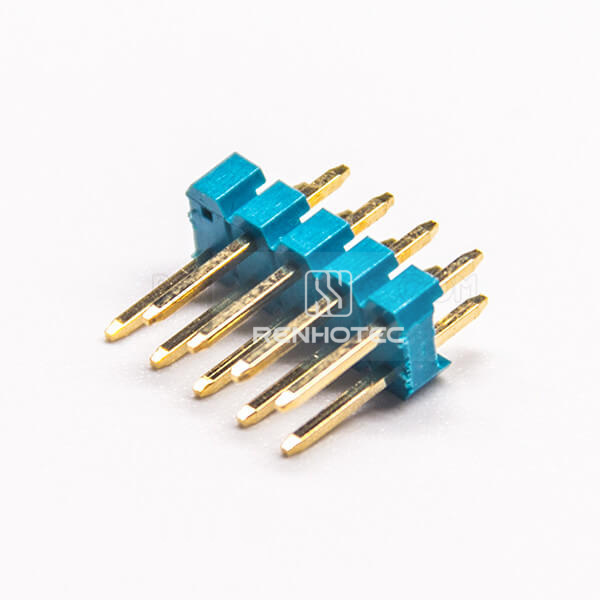

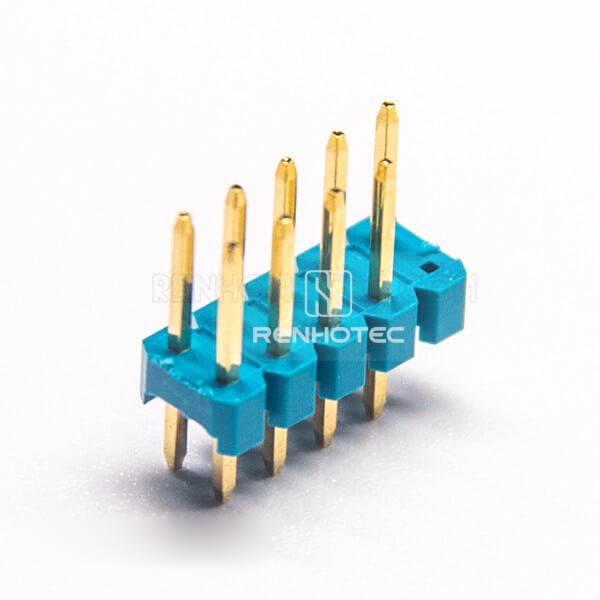

Header 9 Pin Dual Row Green Plastic Through Hole
9-contact dual-row male header with 2.54 mm pitch; straight through-hole mounting. Color: green. Dimension H: 2.5 mm.
- Pin Count9 Pin
- GenderMale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Pin Count
- 9 Pin
- Gender
- Male
- Orientation
- Straight
- Mounting Type
- DIP / Through Hole
- Termination Type
- Solder Type
- Pitch
- 2.54 mm
- Number of Rows
- Dual Row
- Dimension H
- 2.5 mm
- Construction detail
- Square
Material
- Contact Plating
- Gold Plating
- Color
- Green
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Before you specify
Selection guide
Pin Header Connector with 9 Pin, Male, Straight. Mounting: DIP, Through Hole.
Termination Type: Solder Type. Pitch: 2.54 mm.
This dual-row header has green plastic. Dimension H is 2.5 mm.
RHT-603-3041
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Header 9 Pin Dual Row Green Plastic Through Hole- Product family
- Pin Header Connector
- Public Part No.
- RHT-603-3041
