Pin Header Connector

Pin Header Connector RHT-603-3039

Public Part No. RHT-603-3039

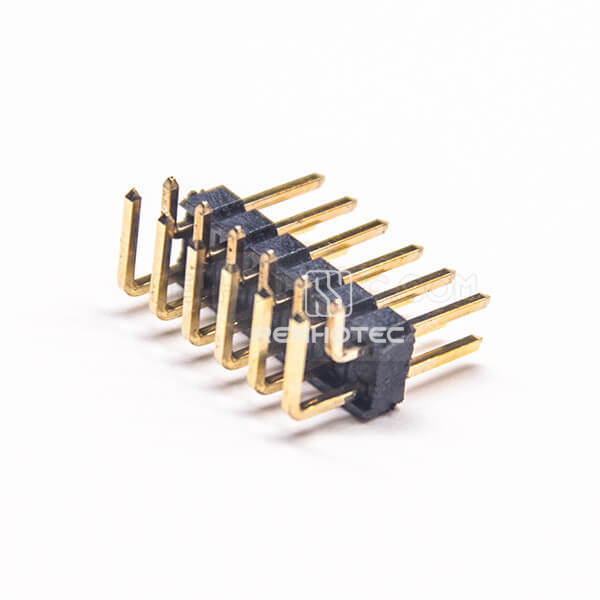

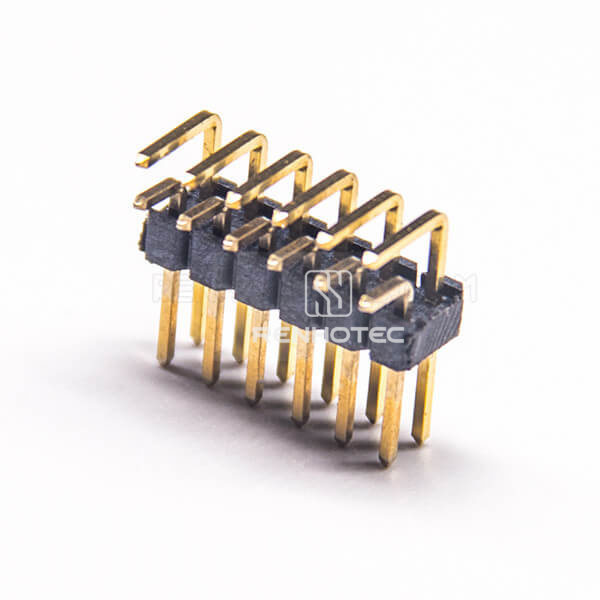

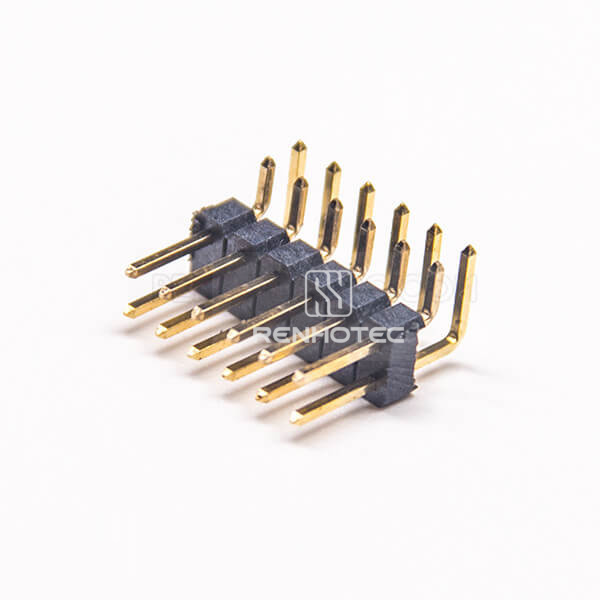

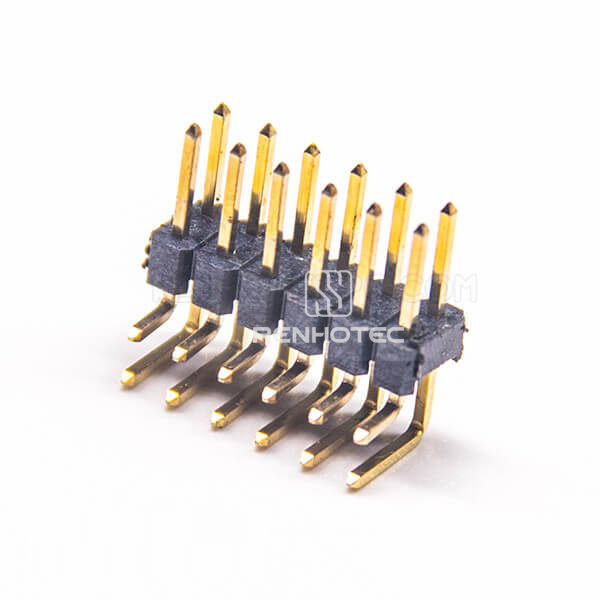

Pin Header Connector RHT-603-3039
Enlarge image
Pin Header Connector RHT-603-3039Pin Header Connector RHT-603-3039Pin Header Connector RHT-603-3039Pin Header Connector RHT-603-3039

Key specifications

Gender
Male
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with Male, Right Angle. Mounting: Through Hole, DIP.

Termination Type: Solder Type. Pitch: 2.54 mm.

The dual-row contact arrangement is 2×6. Dimension H is 3 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Male
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension H
3 mm
Construction detail
Square
Contact configuration
2×6 Pin

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
