Pin Header Connector

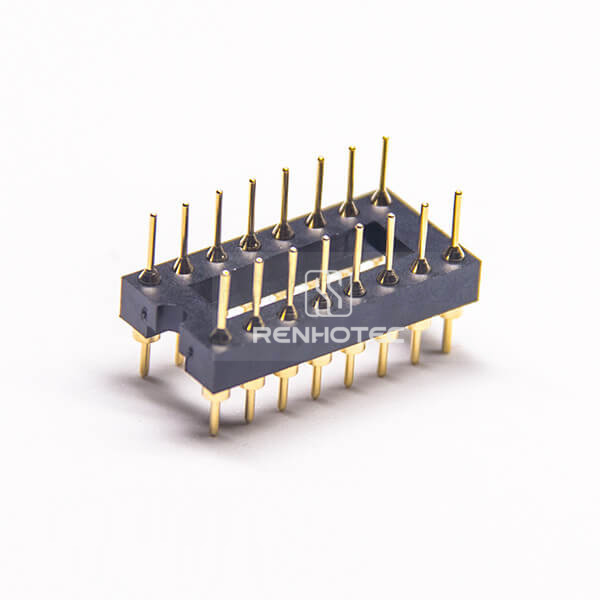

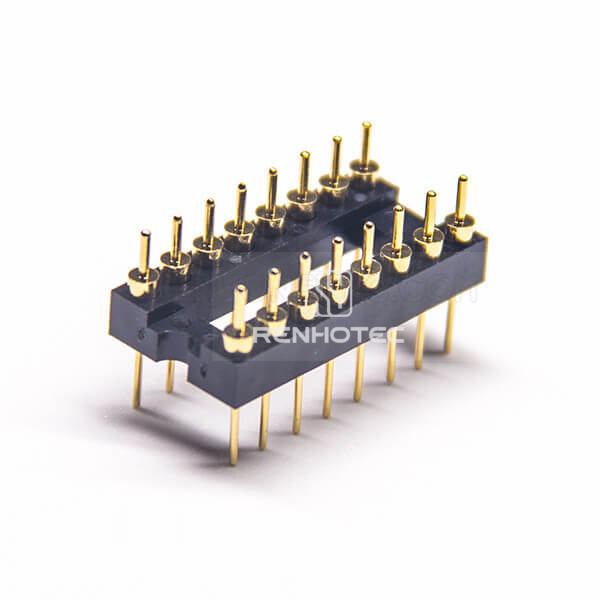

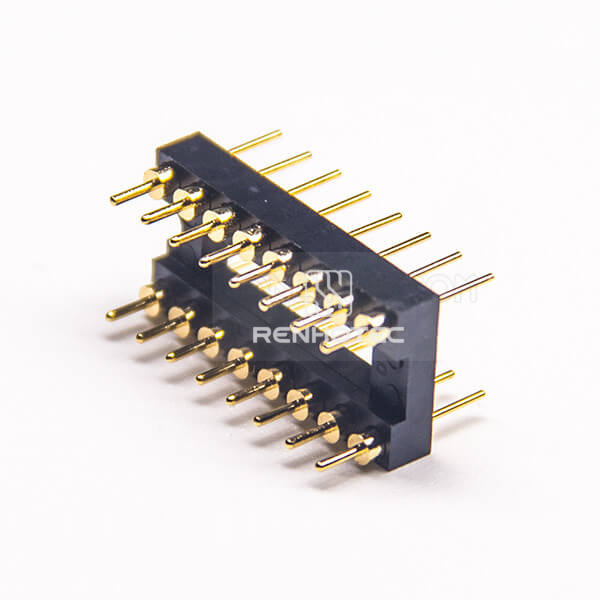

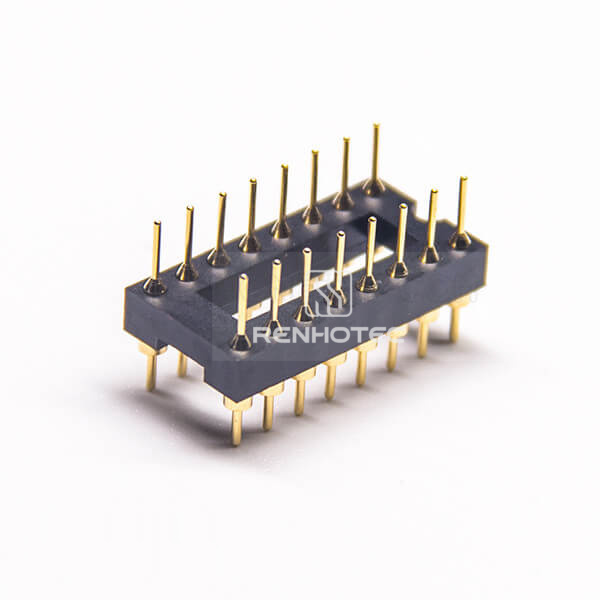

16-Pin Male Header, Dual Row, Straight Through-Hole

Public Part No. RHT-603-3036

16-Pin Male Header, Dual Row, Straight Through-Hole
Enlarge image
16-Pin Male Header, Dual Row, Straight Through-Hole16-Pin Male Header, Dual Row, Straight Through-Hole16-Pin Male Header, Dual Row, Straight Through-Hole16-Pin Male Header, Dual Row, Straight Through-Hole

Key specifications

Pin Count
16 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
16 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension H
3 mm

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
