Pin Header Connector

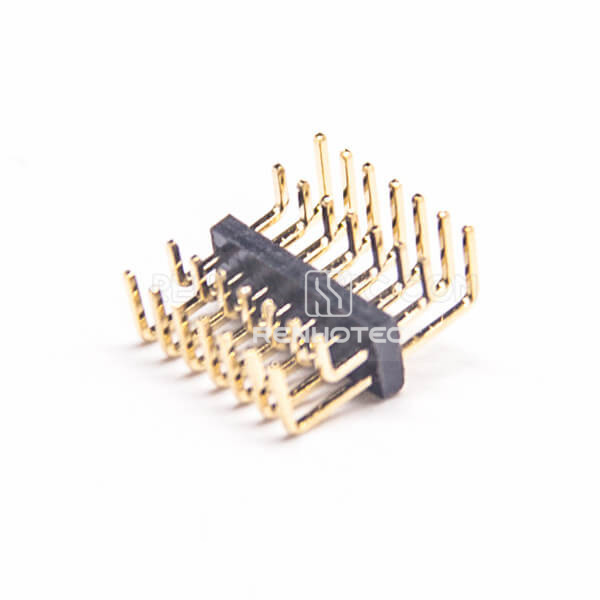

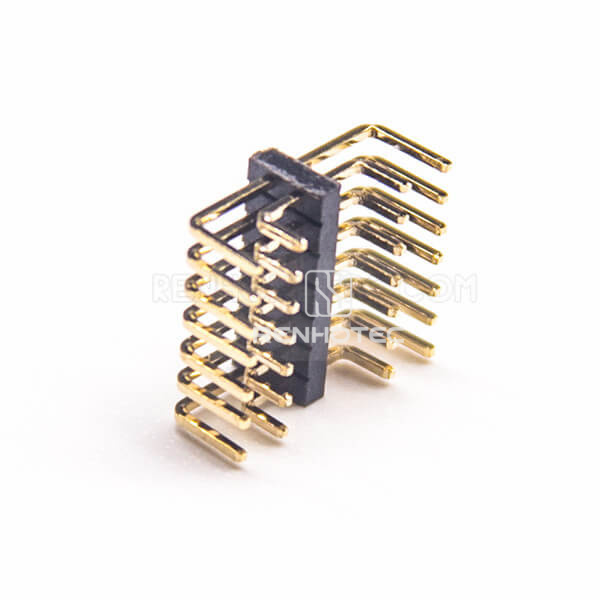

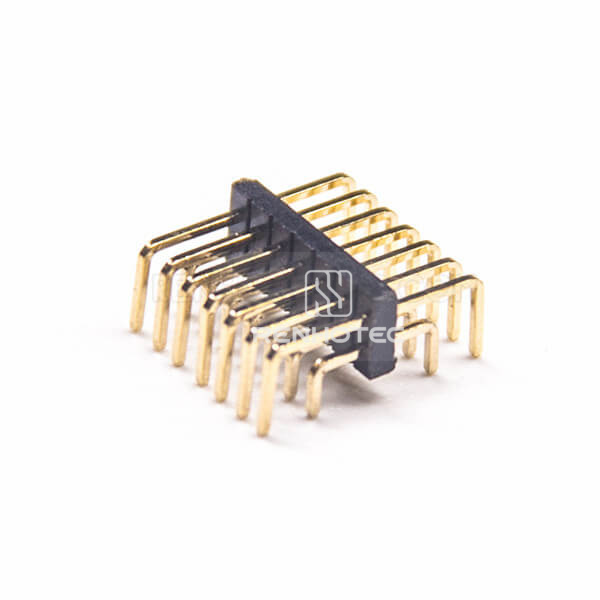

Pin Header Connector RHT-603-3028

Public Part No. RHT-603-3028

Pin Header Connector RHT-603-3028
Enlarge image
Pin Header Connector RHT-603-3028Pin Header Connector RHT-603-3028Pin Header Connector RHT-603-3028

Key specifications

Gender
Male
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with Male, Right Angle. Mounting: DIP, Through Hole.

Termination Type: Solder Type. Pitch: 1.27 mm.

The dual-row contact arrangement is 2×7. Dimension H is 1 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Male
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Pitch
1.27 mm
Number of Rows
Dual Row
Dimension H
1 mm
Construction detail
Square / U Type
Contact configuration
2x7 pin

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
