Pin Header Connector

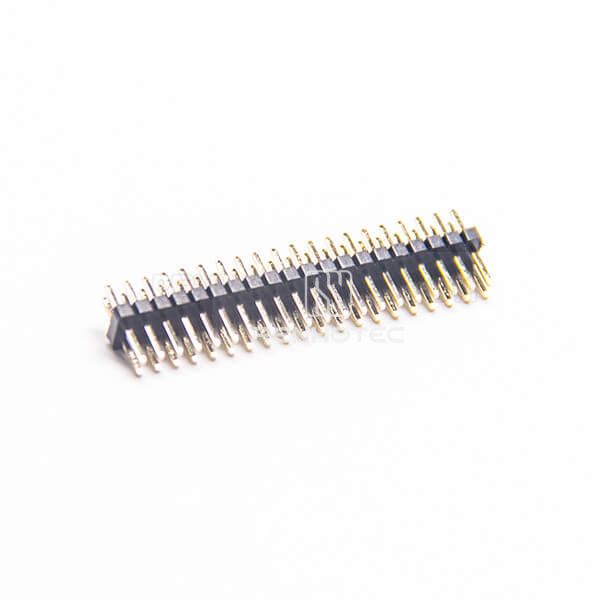

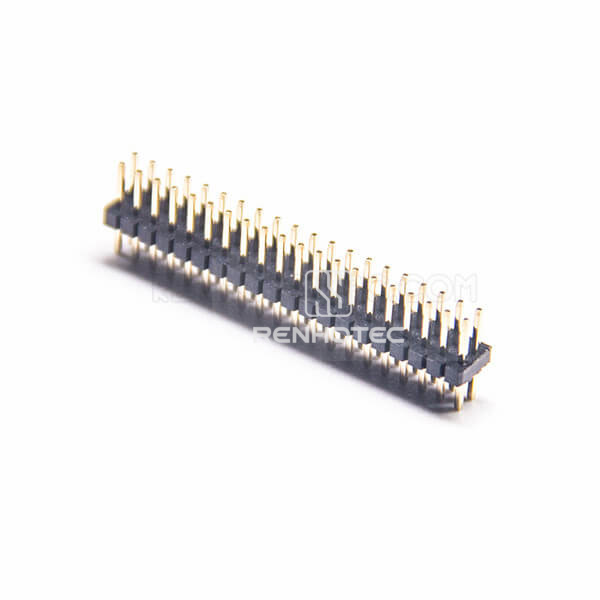

40 Pin Header Connector 180 Degree 1.27mm Dual Row Dip Type

Public Part No. RHT-603-3027

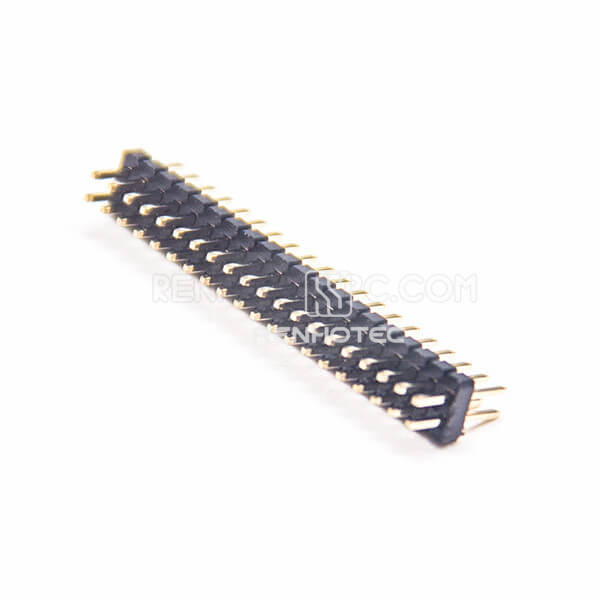

40 Pin Header Connector 180 Degree 1.27mm Dual Row Dip Type
Enlarge image
40 Pin Header Connector 180 Degree 1.27mm Dual Row Dip Type40 Pin Header Connector 180 Degree 1.27mm Dual Row Dip Type40 Pin Header Connector 180 Degree 1.27mm Dual Row Dip Type

Key specifications

Pin Count
40 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Overview

Pin Header Connector with 40 Pin, Male, Straight. Mounting: Through Hole, DIP.

Termination Type: Solder Type. Pitch: 1.27 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
40 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Pitch
1.27 mm
Number of Rows
Dual Row
Dimension H
1 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Connector requirement

Request a quote
