Pin Header Connector

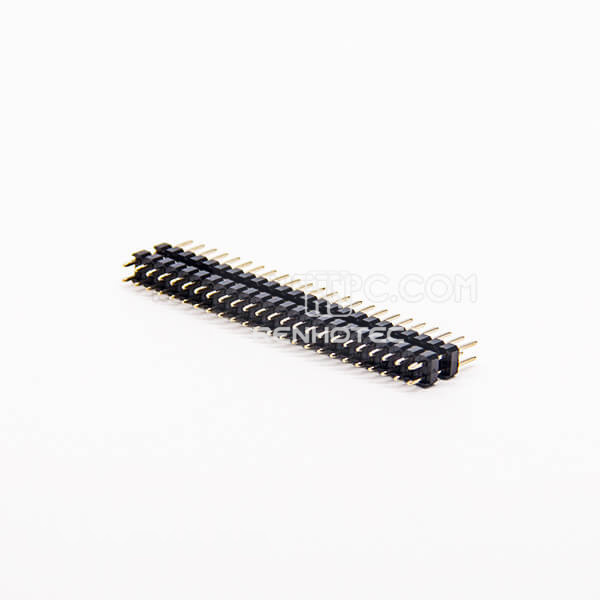

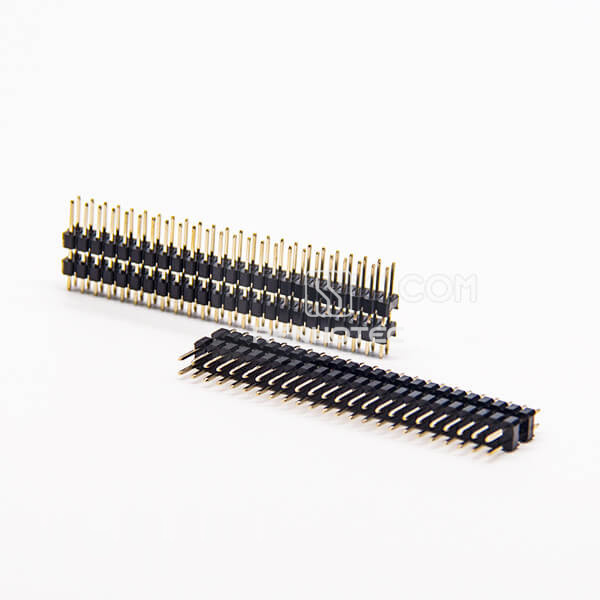

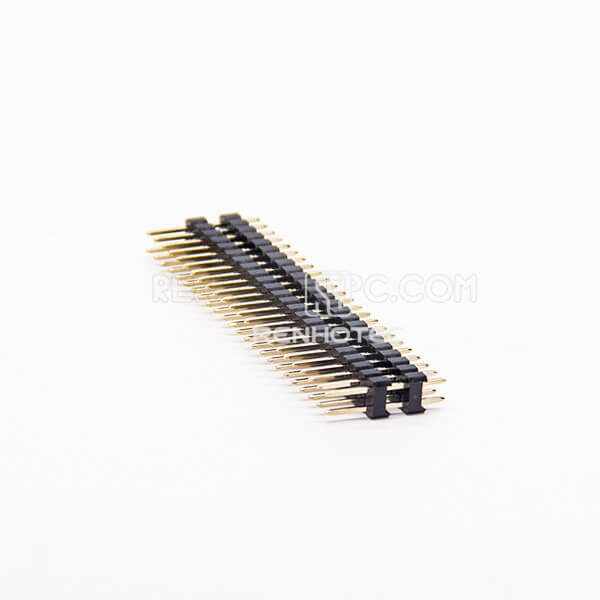

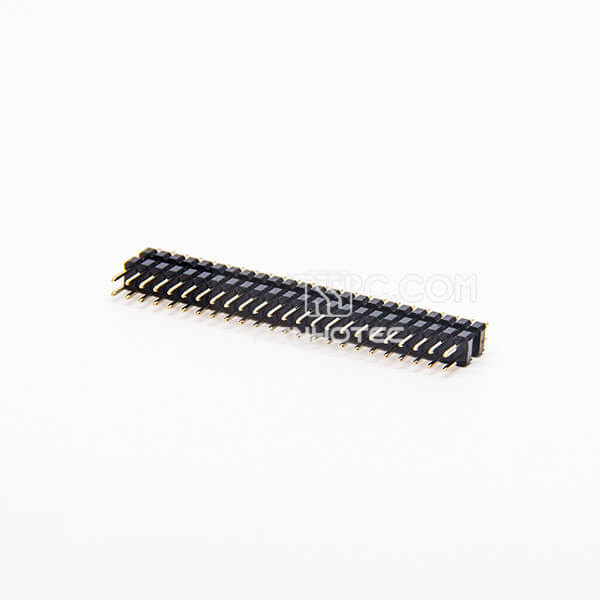

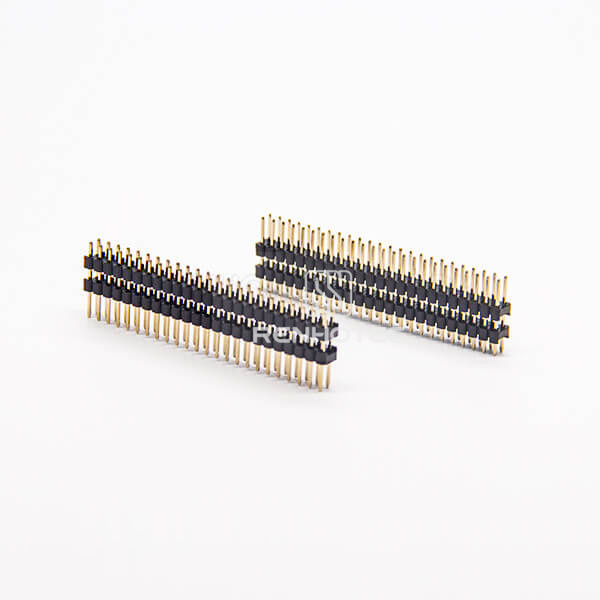

2 Row Pin Header 48 Pin 2.54mm Pitch Straight Dual Row DIP

Part No.rht-603-3025

48-contact dual-row male header with 2.54 mm pitch; straight DIP mounting. Dimension L: 15 mm.

  • Pin Count48 Pin
  • GenderMale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
48 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension L
15 mm

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Before you specify

Selection guide

Pin Header Connector with 48 Pin, Male, Straight. Mounting: DIP.

Pitch: 2.54 mm.

Dimension L is 15 mm.

rht-603-3025
