Pin Header Connector

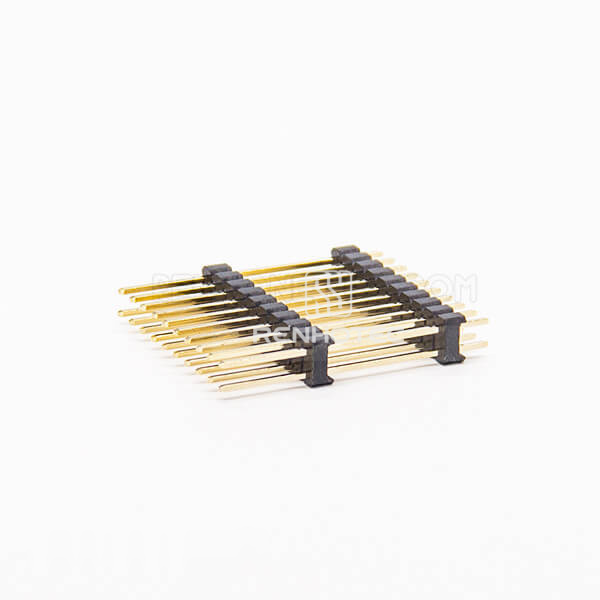

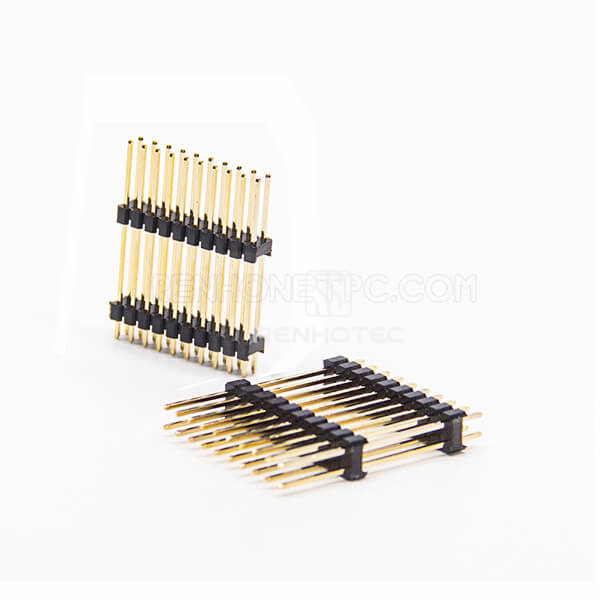

2.54mm Pitch Dual Row 180 Degree Pin Header Through Hole

Public Part No. RHT-603-3024

2.54mm Pitch Dual Row 180 Degree Pin Header Through Hole
Enlarge image

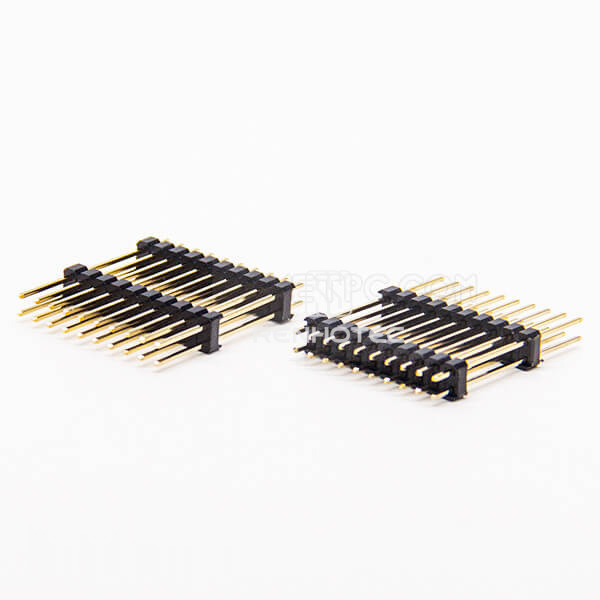

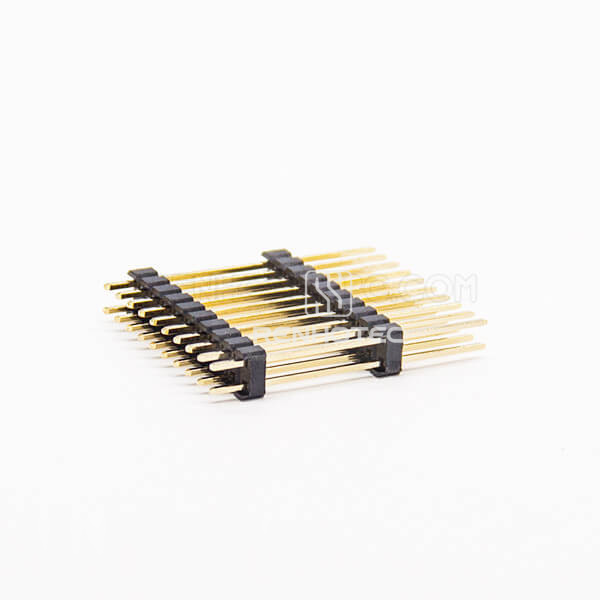

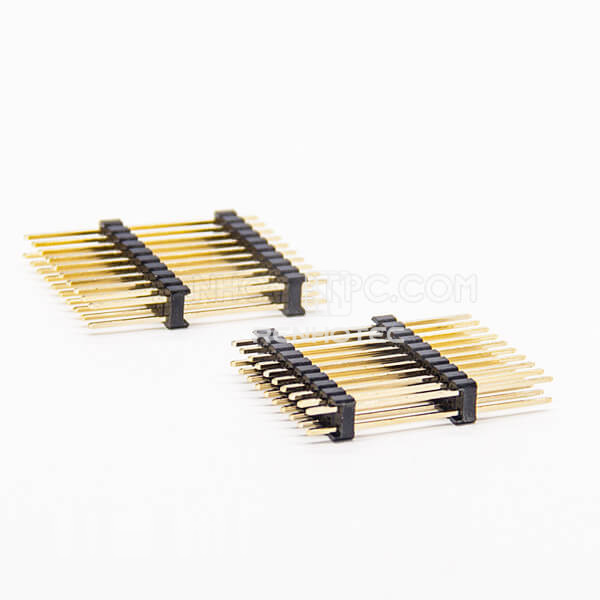

2.54mm Pitch Dual Row 180 Degree Pin Header Through Hole2.54mm Pitch Dual Row 180 Degree Pin Header Through Hole2.54mm Pitch Dual Row 180 Degree Pin Header Through Hole2.54mm Pitch Dual Row 180 Degree Pin Header Through Hole2.54mm Pitch Dual Row 180 Degree Pin Header Through Hole

Key specifications

Pin Count
20 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Request QuoteFull specifications

Overview

Pin Header Connector with 20 Pin, Male, Straight. Mounting: DIP, Through Hole.

Pitch: 2.54 mm.

Dimension L is 20 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
20 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension L
20 mm

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
