Pin Header Connector

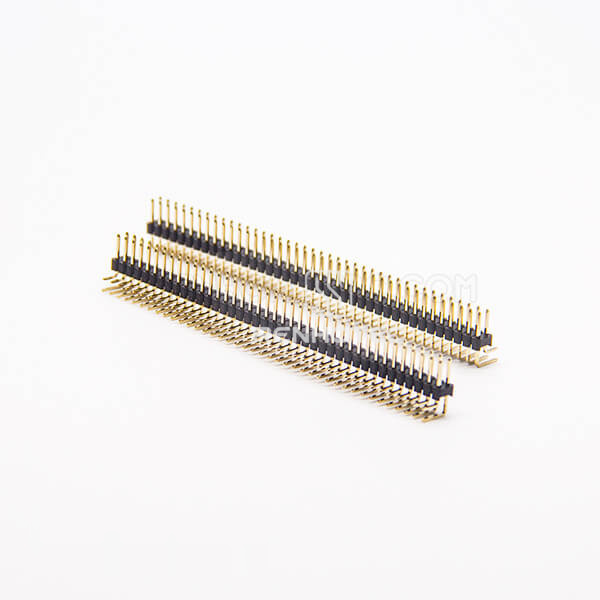

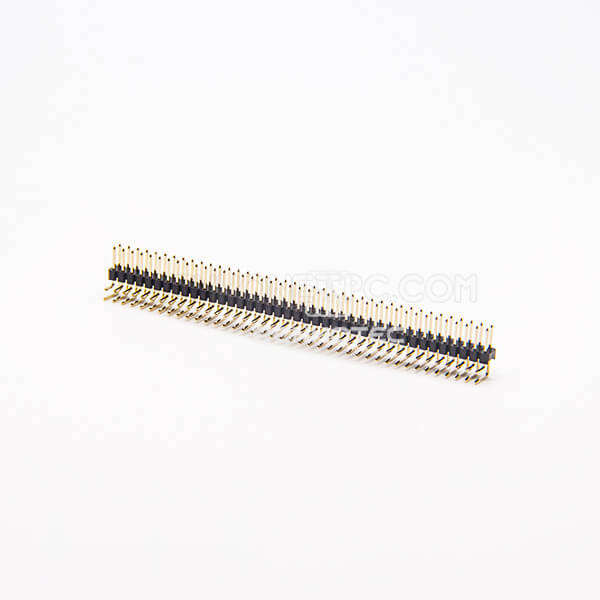

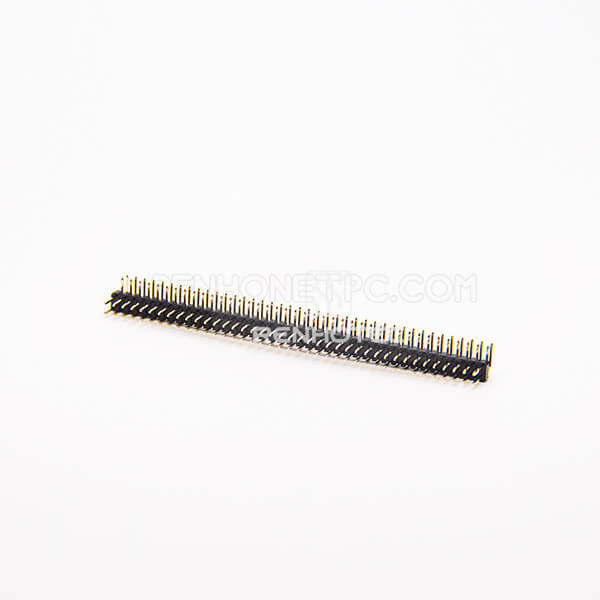

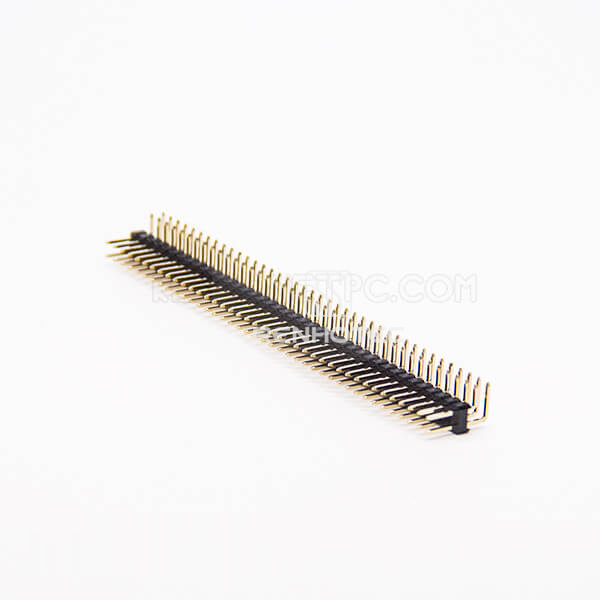

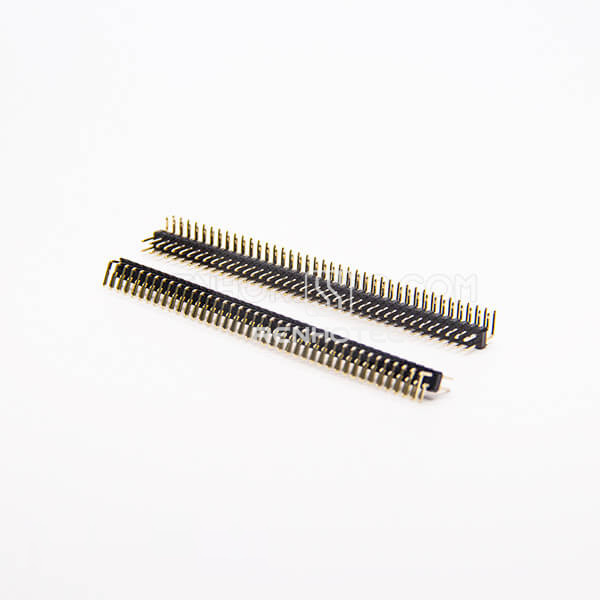

80-Pin Dual-Row Header, Right Angle, 2.54 mm Pitch

Part No.RHT-603-3023
80-pin male header with a dual-row contact layout, 2.54 mm pitch and right-angle through-hole mounting.
  • Pin Count80 Pin
  • GenderMale
  • OrientationRight Angle

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
80 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension L
11.5 mm

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Before you specify

Selection guide

80-pin male header with a dual-row contact layout, 2.54 mm pitch and right-angle through-hole mounting.
