Pin Header Connector

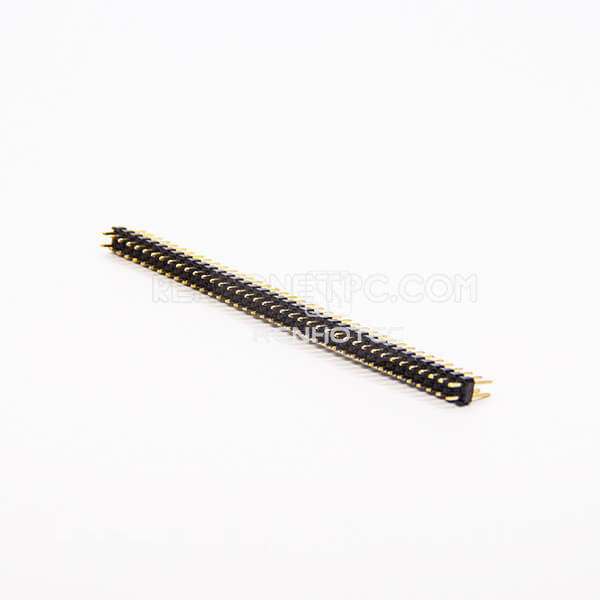

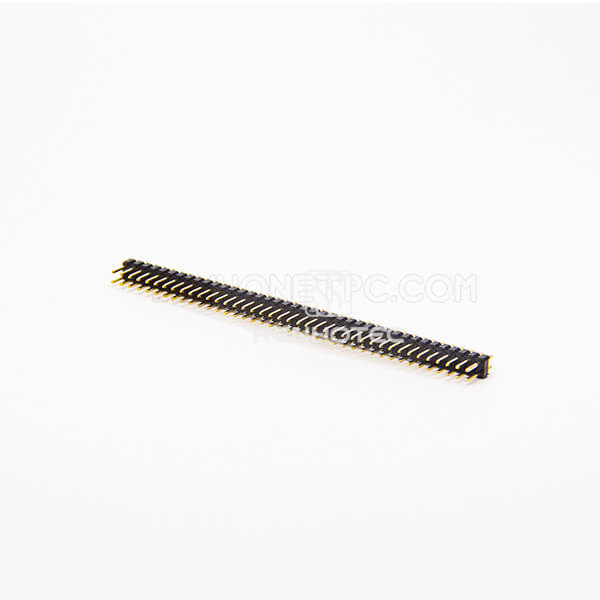

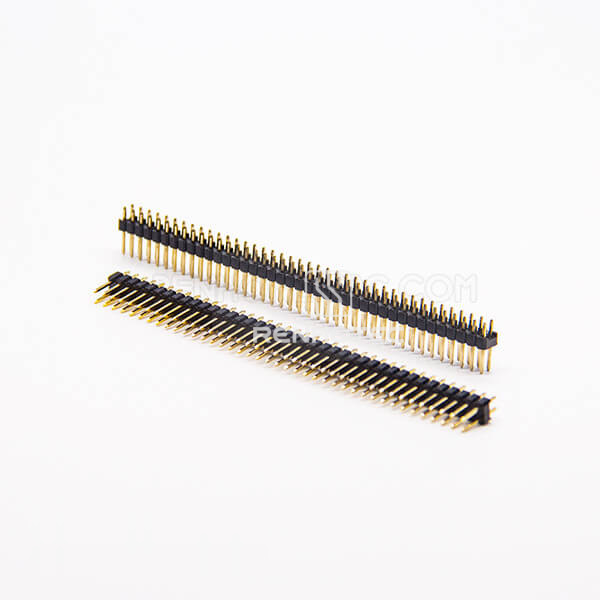

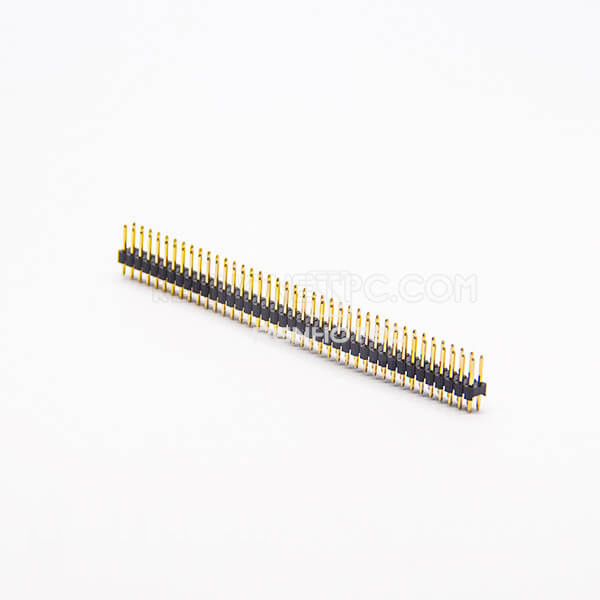

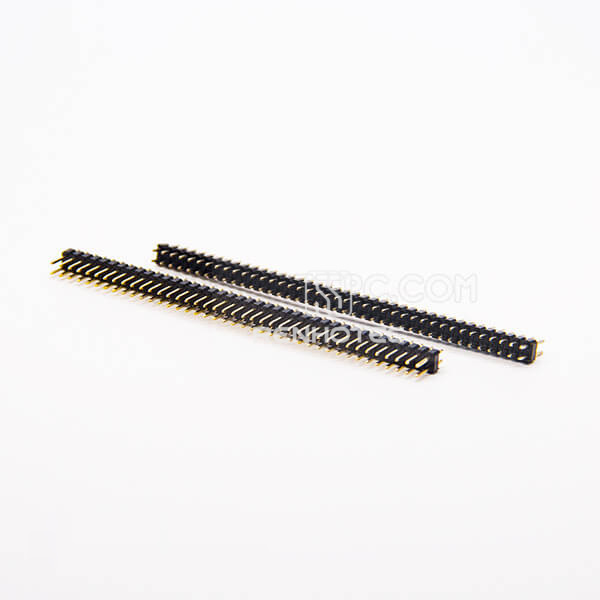

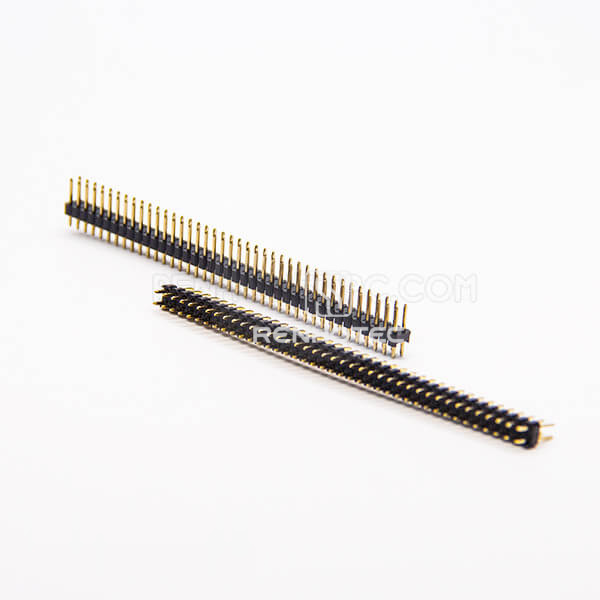

2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree

Public Part No. RHT-603-3022

2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree
Enlarge image
2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree2.54 mm Male Pin Header Connectors Dual Row 80 Pin 180 Degree

Key specifications

Pin Count
80 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Request QuoteFull specifications

Overview

Pin Header Connector with 80 Pin, Male, Straight. Mounting: DIP.

Pitch: 2.54 mm.

Dimension L is 11.5 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
80 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension L
11.5 mm

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Connector requirement

Request a quote

Share your connector requirements and the specifications you need.

    Inquiry details

    Attach one PDF, JPEG or PNG, up to 5 MB.

    Include the details needed to help with your connector inquiry. You can check them before sending.

    Complete verification before sending.
