Pin Header Connector

2.54mm Pin Header Male 40 Pin Straight Single Row Through Hole for PCB

Public Part No. RHT-603-3021

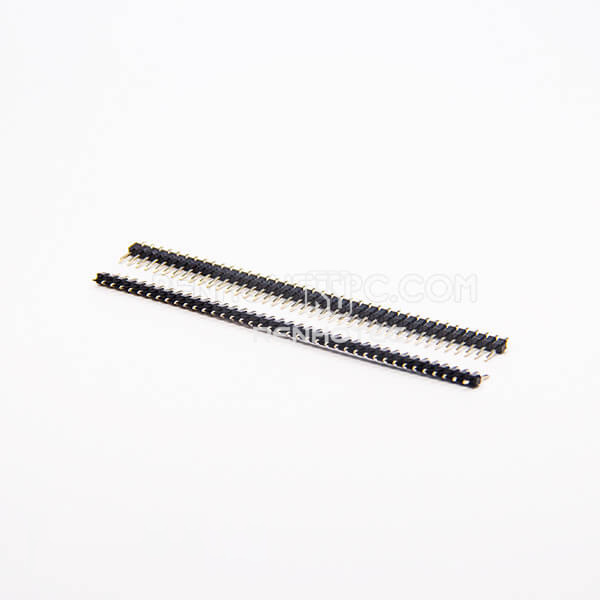

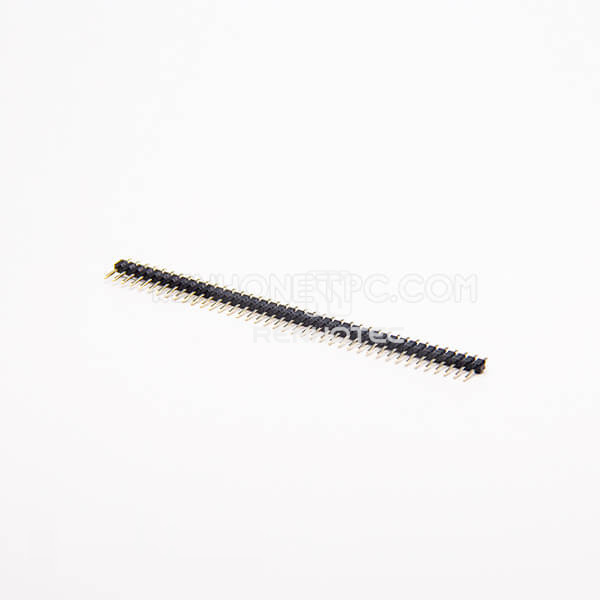

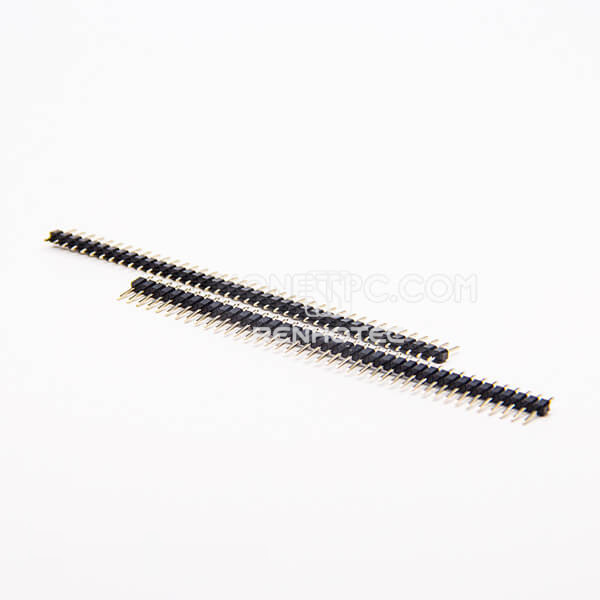

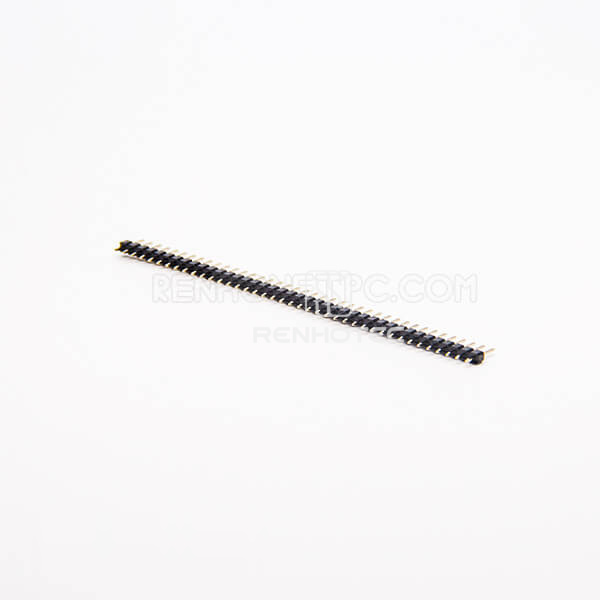

2.54mm Pin Header Male 40 Pin Straight Single Row Through Hole for PCB
Enlarge image
2.54mm Pin Header Male 40 Pin Straight Single Row Through Hole for PCB2.54mm Pin Header Male 40 Pin Straight Single Row Through Hole for PCB2.54mm Pin Header Male 40 Pin Straight Single Row Through Hole for PCB2.54mm Pin Header Male 40 Pin Straight Single Row Through Hole for PCB

Key specifications

Pin Count
40 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Request QuoteFull specifications

Overview

Pin Header Connector with 40 Pin, Male, Straight. Mounting: DIP, Through Hole.

Pitch: 2.54 mm.

Dimension L is 11.5 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
40 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP / Through Hole
Pitch
2.54 mm
Number of Rows
Single Row
Dimension L
11.5 mm

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
