Pin Header Connector

2.54mm Pin Header Dual Row 180 Degree 2.54mm 80 Pin DIP

Public Part No. RHT-603-3019

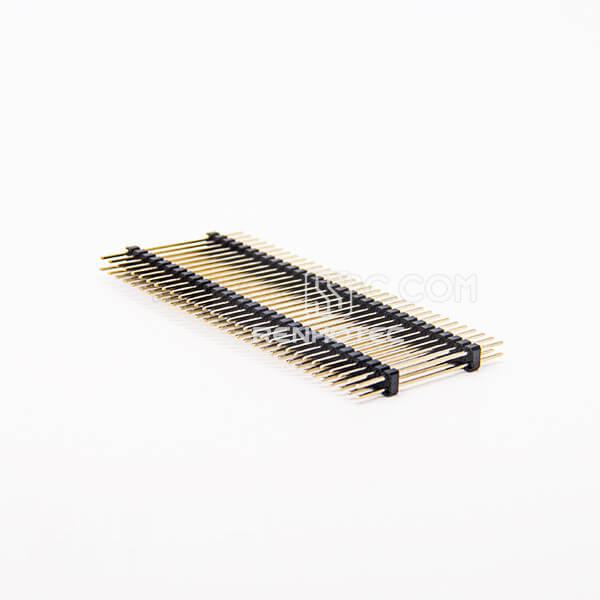

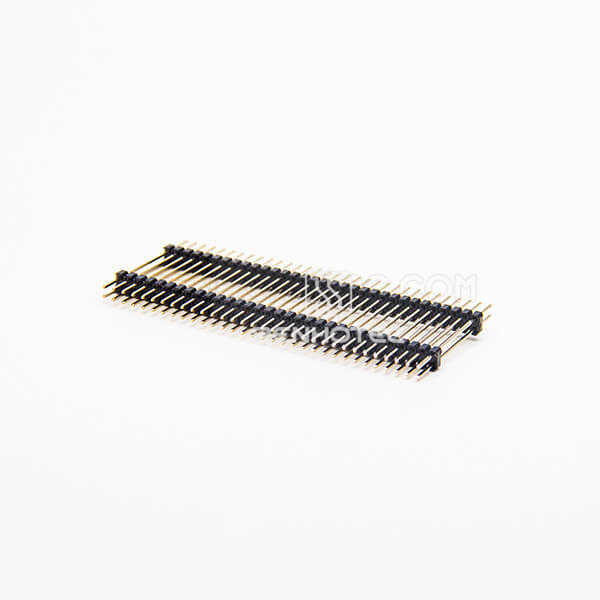

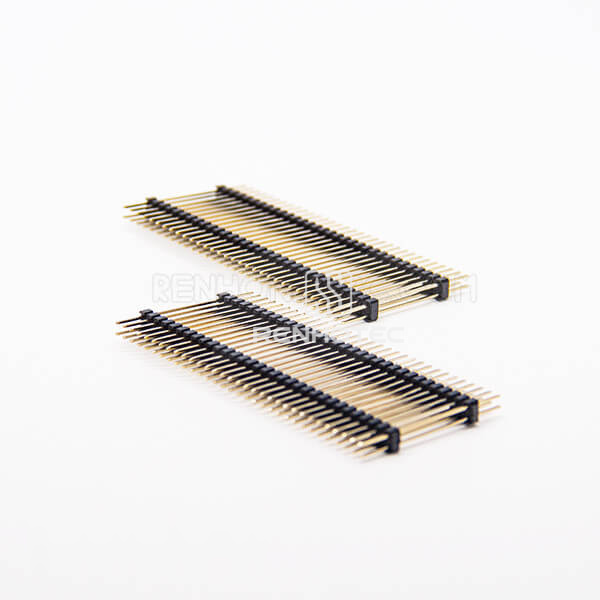

2.54mm Pin Header Dual Row 180 Degree 2.54mm 80 Pin DIP
Enlarge image
2.54mm Pin Header Dual Row 180 Degree 2.54mm 80 Pin DIP2.54mm Pin Header Dual Row 180 Degree 2.54mm 80 Pin DIP2.54mm Pin Header Dual Row 180 Degree 2.54mm 80 Pin DIP2.54mm Pin Header Dual Row 180 Degree 2.54mm 80 Pin DIP

Key specifications

Pin Count
80 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Request QuoteFull specifications

Overview

Pin Header Connector with 80 Pin, Male, Straight. Mounting: DIP.

Pitch: 2.54 mm.

Dimension L is 35 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
80 Pin
Gender
Male
Orientation
Straight
Mounting Type
DIP
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension L
35 mm

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
