Pin Header Connector

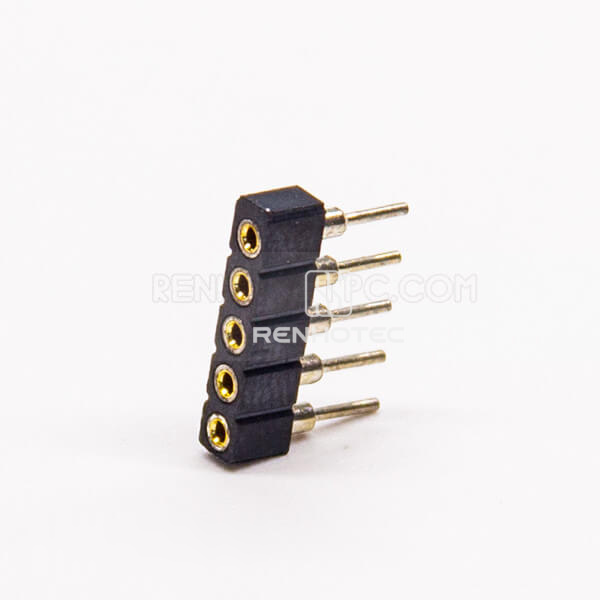

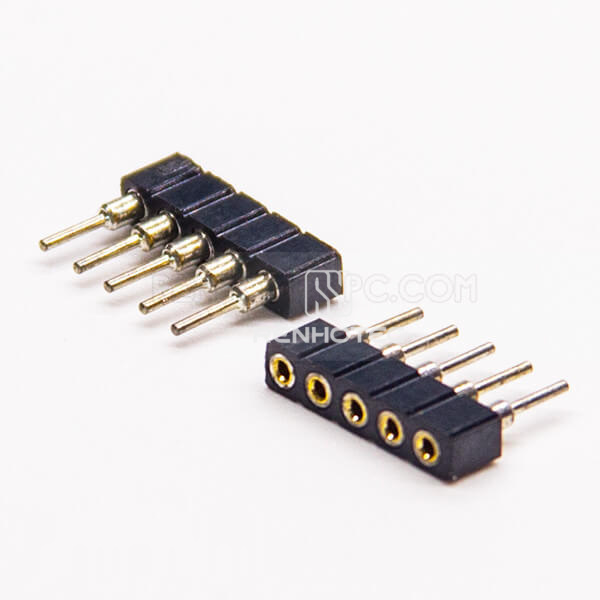

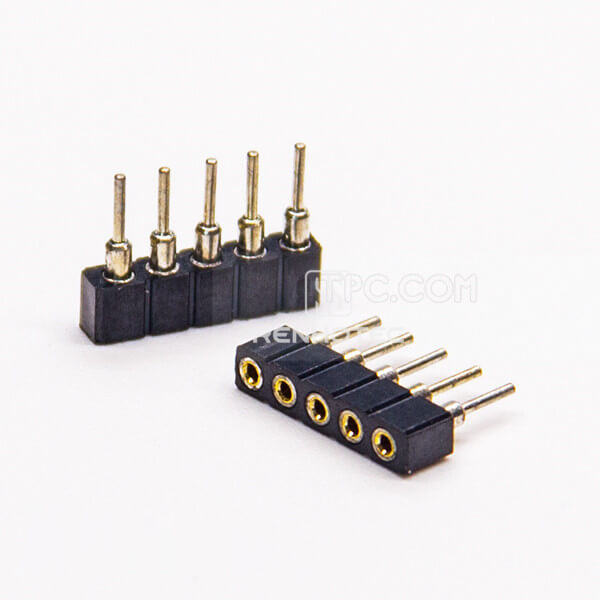

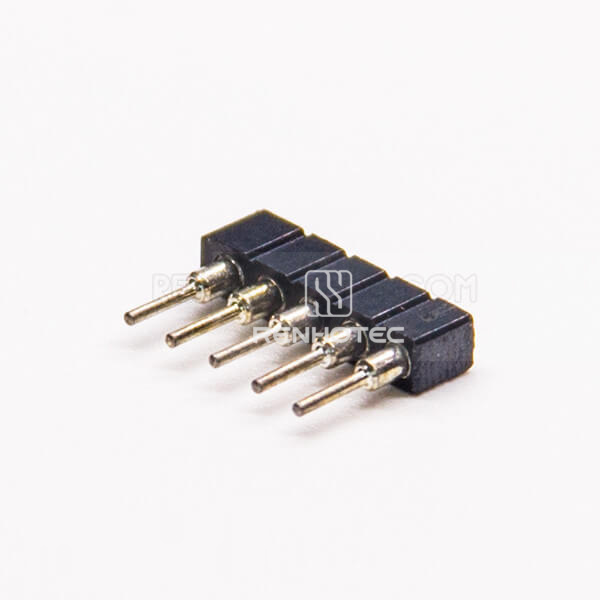

Female Header Circular Holes Socket 5 Pin 180 Degree 2.0mm Gap

Public Part No. RHT-603-3017

Female Header Circular Holes Socket 5 Pin 180 Degree 2.0mm Gap
Enlarge image
Female Header Circular Holes Socket 5 Pin 180 Degree 2.0mm GapFemale Header Circular Holes Socket 5 Pin 180 Degree 2.0mm GapFemale Header Circular Holes Socket 5 Pin 180 Degree 2.0mm GapFemale Header Circular Holes Socket 5 Pin 180 Degree 2.0mm GapFemale Header Circular Holes Socket 5 Pin 180 Degree 2.0mm Gap

Key specifications

Pin Count
5 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Request QuoteFull specifications

Overview

Pin Header Connector with 5 Pin, Female, Straight. Mounting: DIP.

Pitch: 2 mm.

This single-row female socket has circular holes.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
5 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Pitch
2 mm
Number of Rows
Single Row
Construction detail
Circular Holes

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
