Pin Header Connector

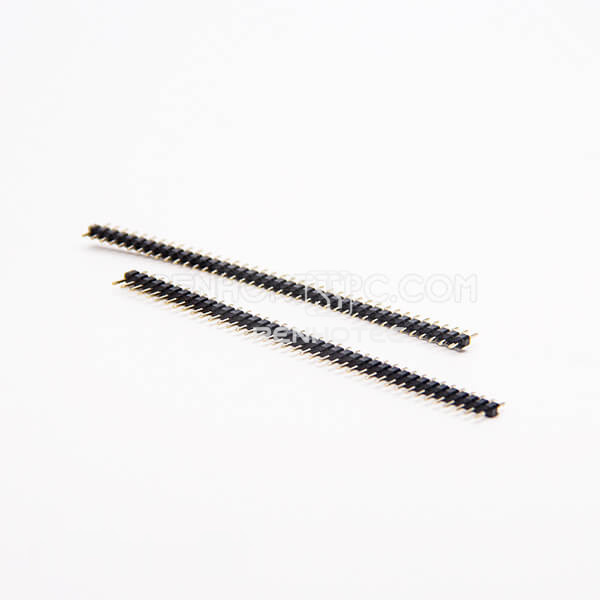

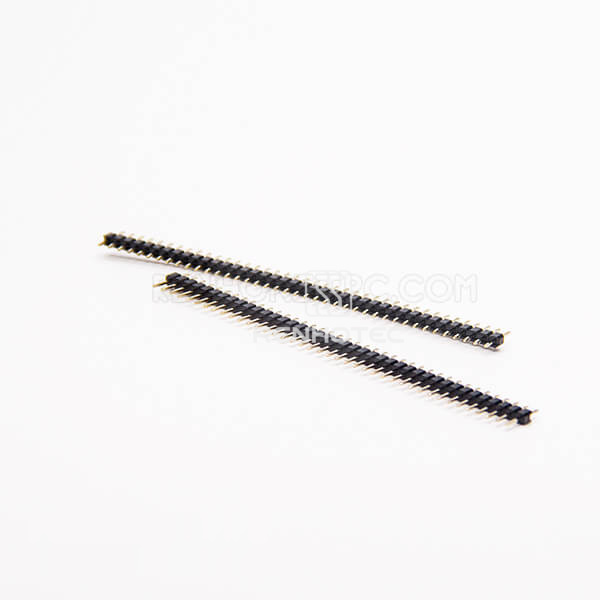

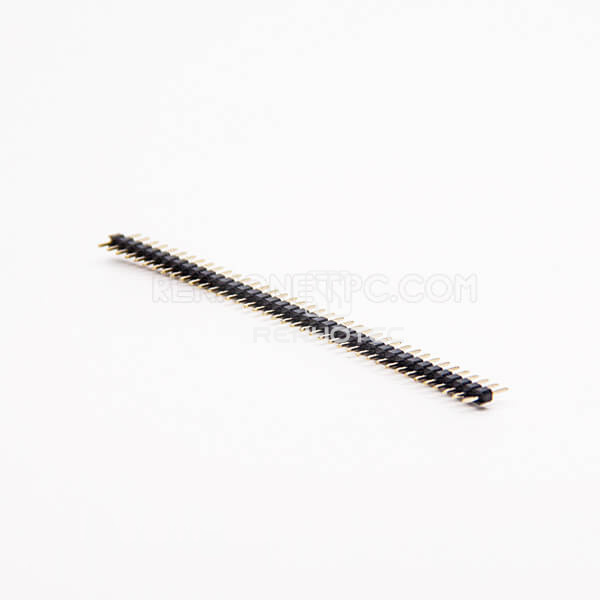

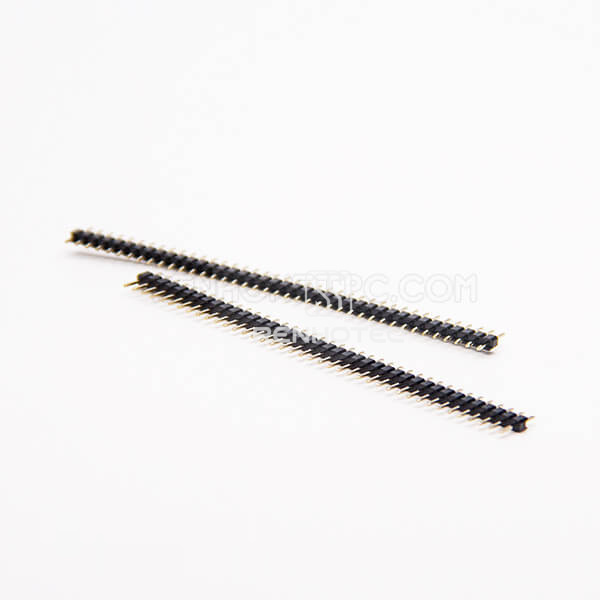

180 Degree 40 Pin Male Pin Header Single Row 2.0mm Through Hole
Pin Header Connector with 40 Pin, Male, Straight. Mounting: DIP, Through Hole.
- Pin Count40 Pin
- GenderMale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Pin Count
- 40 Pin
- Gender
- Male
- Orientation
- Straight
- Mounting Type
- DIP / Through Hole
- Pitch
- 2 mm
- Number of Rows
- Single Row
Material
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Before you specify
Selection guide
Pin Header Connector with 40 Pin, Male, Straight. Mounting: DIP, Through Hole.
Pitch: 2 mm.
RHT-603-3014
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
180 Degree 40 Pin Male Pin Header Single Row 2.0mm Through Hole- Product family
- Pin Header Connector
- Public Part No.
- RHT-603-3014
