Pin Header Connector

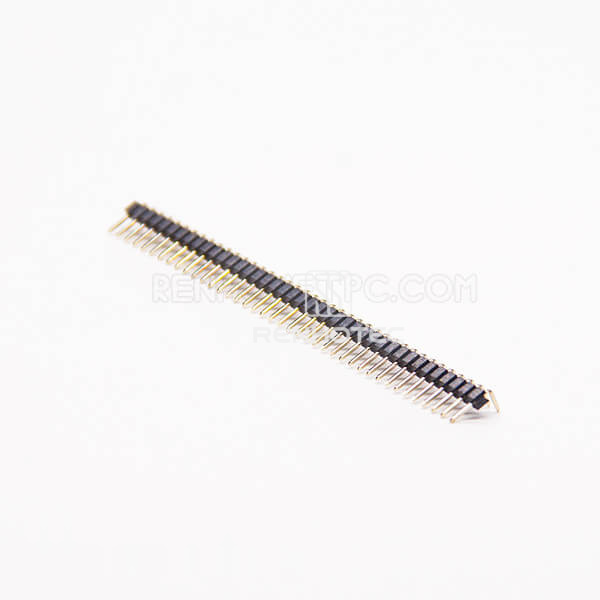

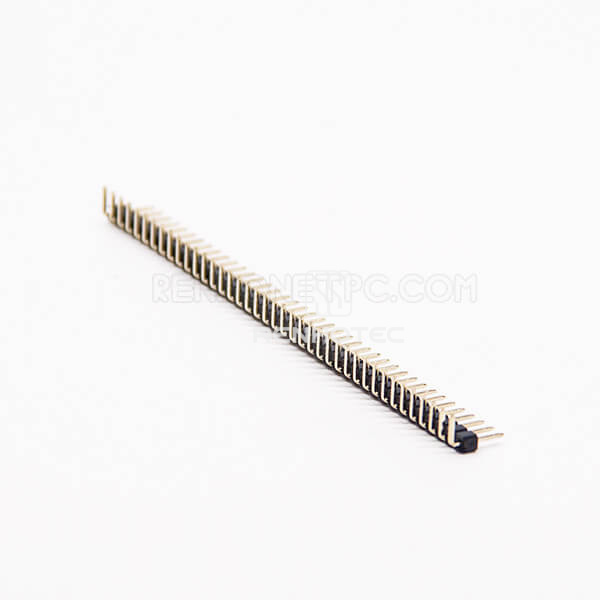

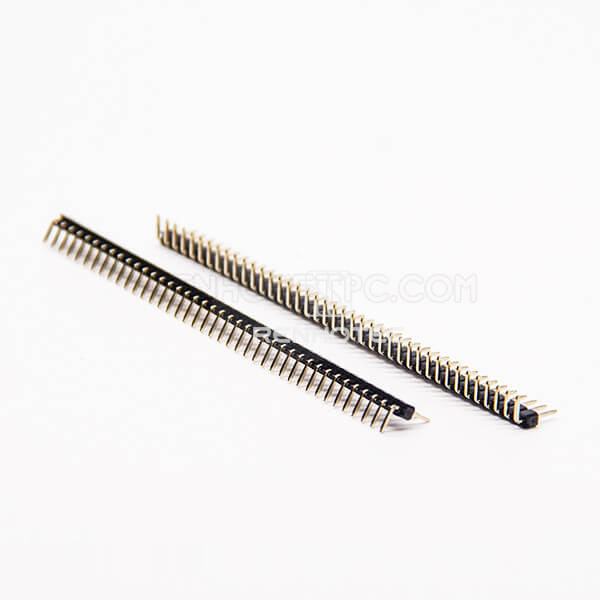

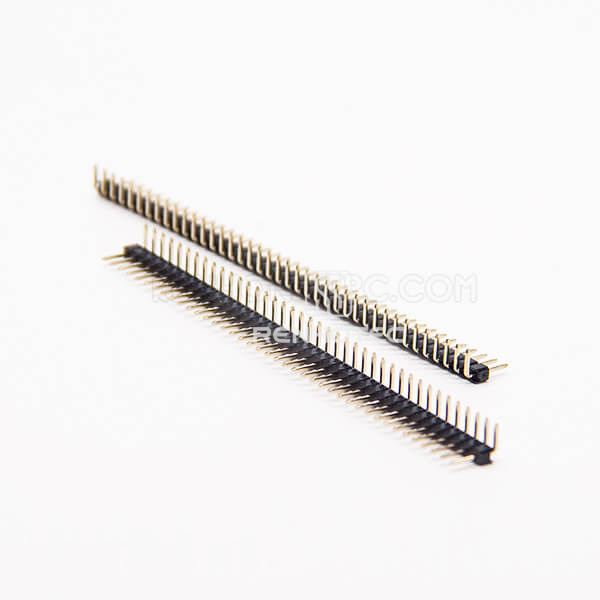

Single Row Pin Header Male 2.0×2.0 PH 40 Pin Right Angle

Public Part No. RHT-603-3013

Single Row Pin Header Male 2.0×2.0 PH 40 Pin Right Angle
Enlarge image
Single Row Pin Header Male 2.0×2.0 PH 40 Pin Right AngleSingle Row Pin Header Male 2.0×2.0 PH 40 Pin Right AngleSingle Row Pin Header Male 2.0×2.0 PH 40 Pin Right AngleSingle Row Pin Header Male 2.0×2.0 PH 40 Pin Right AngleSingle Row Pin Header Male 2.0×2.0 PH 40 Pin Right Angle

Key specifications

Pin Count
40 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

Pin Header Connector with 40 Pin, Male, Right Angle. Mounting: Through Hole.

Pitch: 2 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
40 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
Through Hole
Pitch
2 mm
Number of Rows
Single Row
Pitch notation
2.0 PH

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
