Pin Header Connector

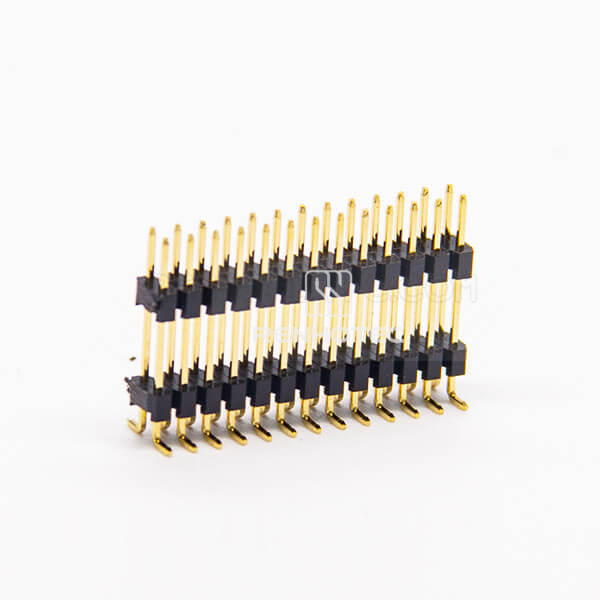

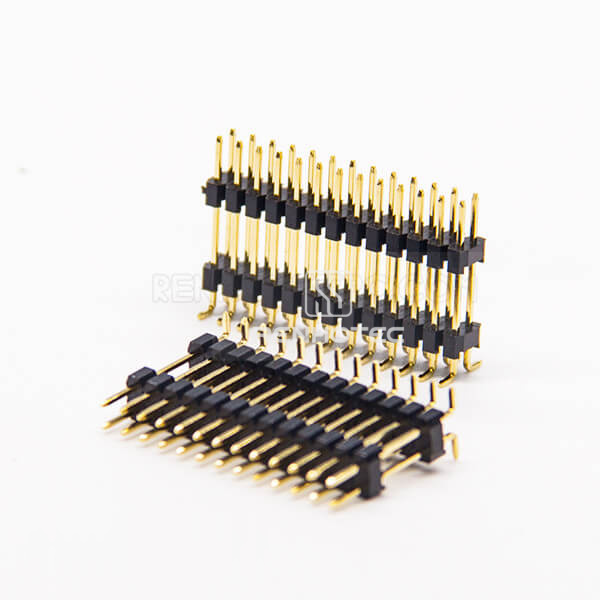

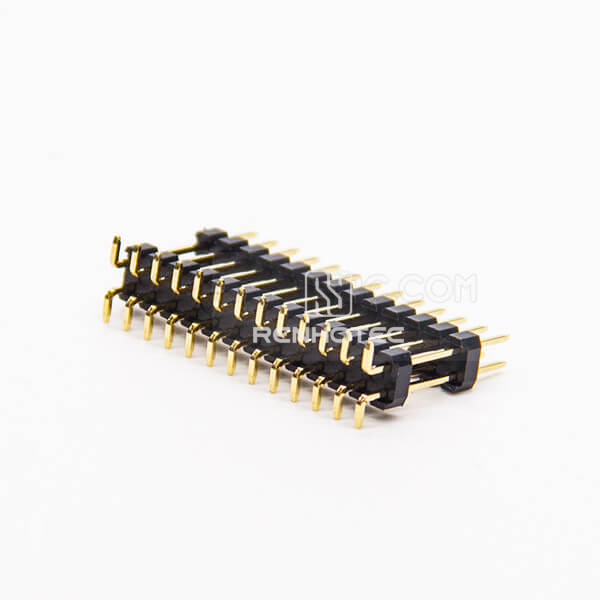

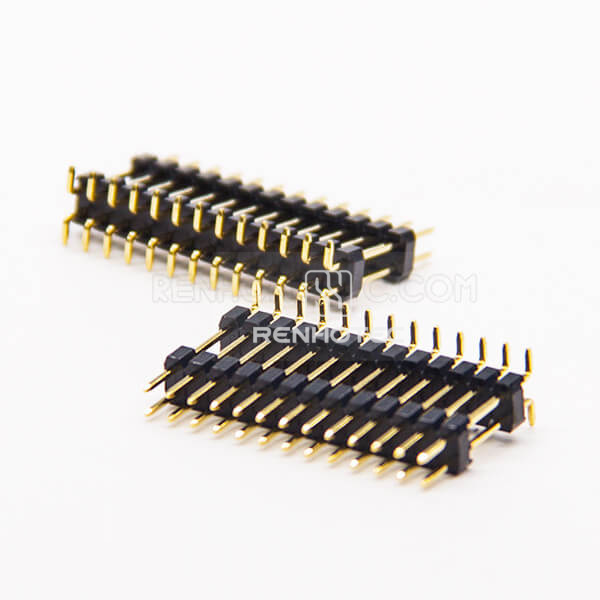

SMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual Row

Public Part No. RHT-603-3012

SMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual Row
Enlarge image
SMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual RowSMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual RowSMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual RowSMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual RowSMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual RowSMT Pin Header 180 Degree 26 Pin 2.0×2.0 PH Dual Row

Key specifications

Pin Count
26 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Request QuoteFull specifications

Overview

Pin Header Connector with 26 Pin, Male, Straight. Mounting: SMT.

Pitch: 2 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
26 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Pitch
2 mm
Number of Rows
Dual Row
Pitch notation
2.0 PH

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
