Pin Header Connector

Pin Header SMT Type Straight 16 Pin Dual Row 2.0×1.5 PH

Public Part No. RHT-603-3011

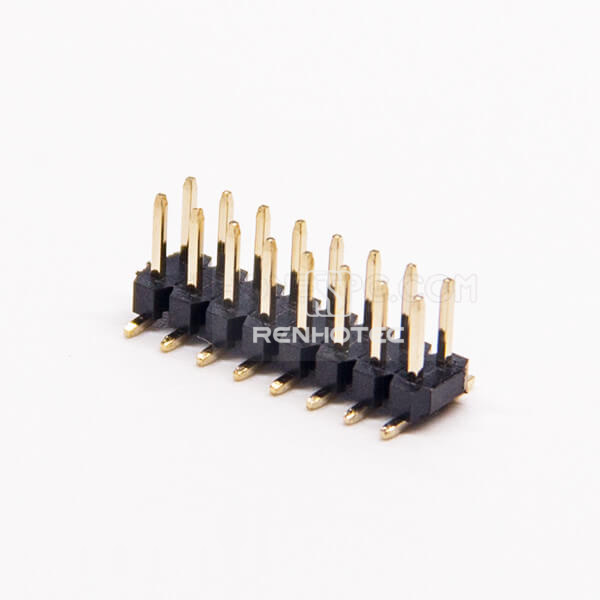

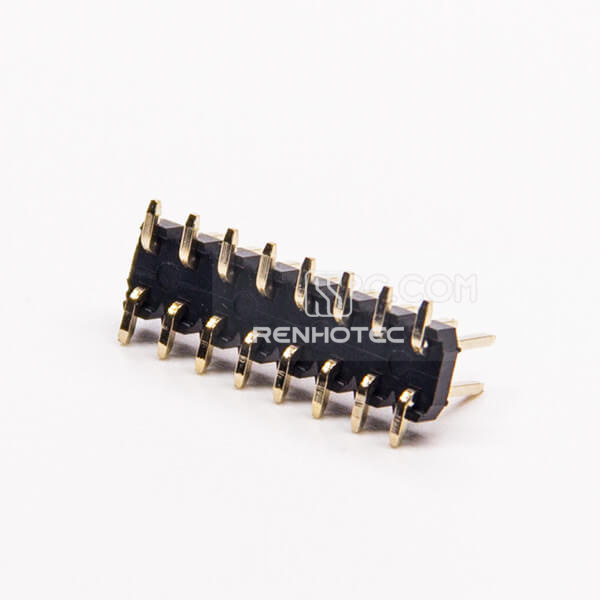

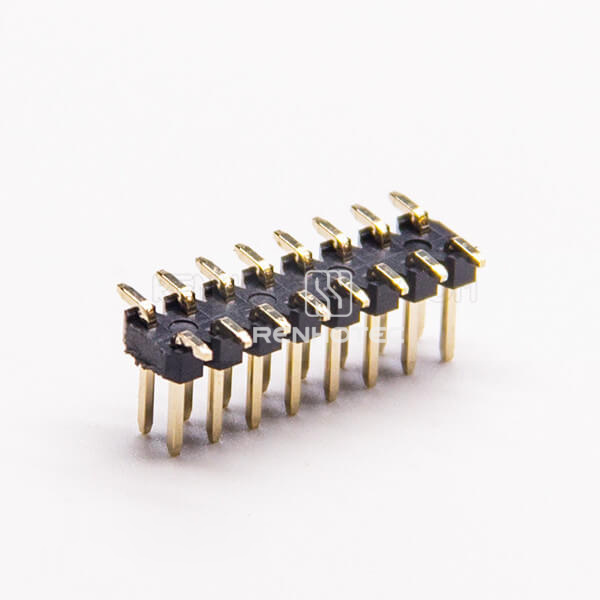

Pin Header SMT Type Straight 16 Pin Dual Row 2.0×1.5 PH
Enlarge image
Pin Header SMT Type Straight 16 Pin Dual Row 2.0×1.5 PHPin Header SMT Type Straight 16 Pin Dual Row 2.0×1.5 PHPin Header SMT Type Straight 16 Pin Dual Row 2.0×1.5 PHPin Header SMT Type Straight 16 Pin Dual Row 2.0×1.5 PH

Key specifications

Pin Count
16 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Request QuoteFull specifications

Overview

Pin Header Connector with 16 Pin, Male, Straight. Mounting: SMT.

Pitch: 2 mm.

The dual-row header uses the 2.0×1.5 PH layout specified for this part.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
16 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Pitch
2 mm
Number of Rows
Dual Row
Pitch notation
1.5 PH

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
