Pin Header Connector

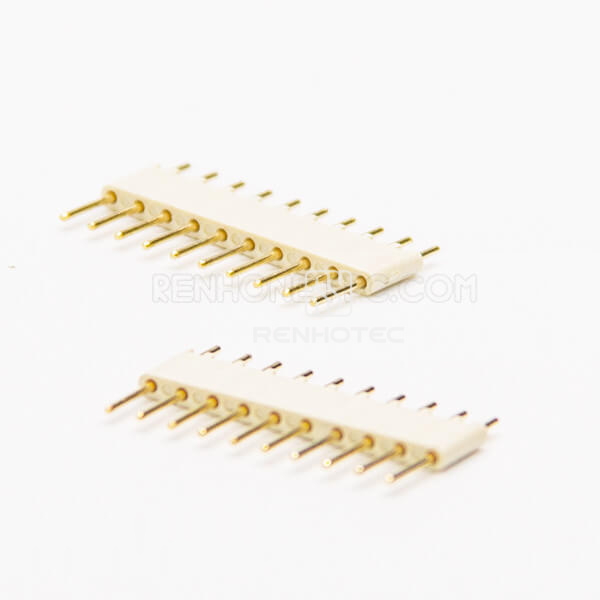

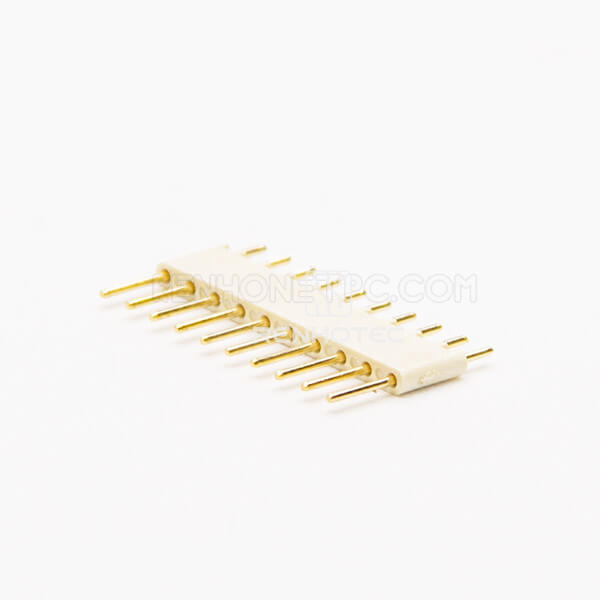

Pin Header Male 180 Degree 10 Pin Through Hole
Pin Header Connector with 10 Pin, Male, Straight. Mounting: Through Hole.
- Pin Count10 Pin
- GenderMale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Pin Count
- 10 Pin
- Gender
- Male
- Orientation
- Straight
- Mounting Type
- Through Hole
- Pitch
- 1.778 mm
- Number of Rows
- Single Row
Material
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Before you specify
Selection guide
Pin Header Connector with 10 Pin, Male, Straight. Mounting: Through Hole.
Pitch: 1.778 mm.
RHT-603-3009
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Pin Header Male 180 Degree 10 Pin Through Hole- Product family
- Pin Header Connector
- Public Part No.
- RHT-603-3009
