Pin Header Connector
Male Pin Header Right Angled Dual Row 1.27mm Center Spacing Through Hole

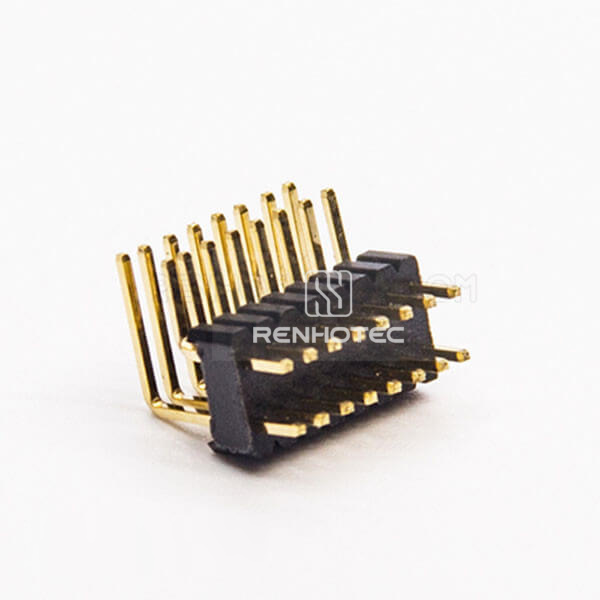

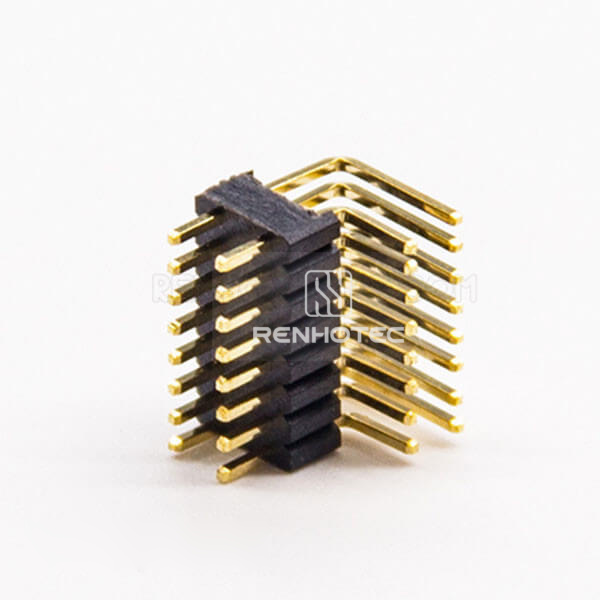

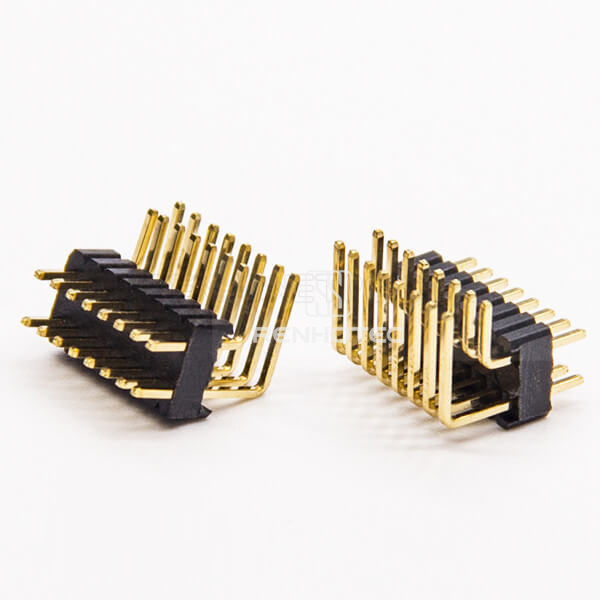

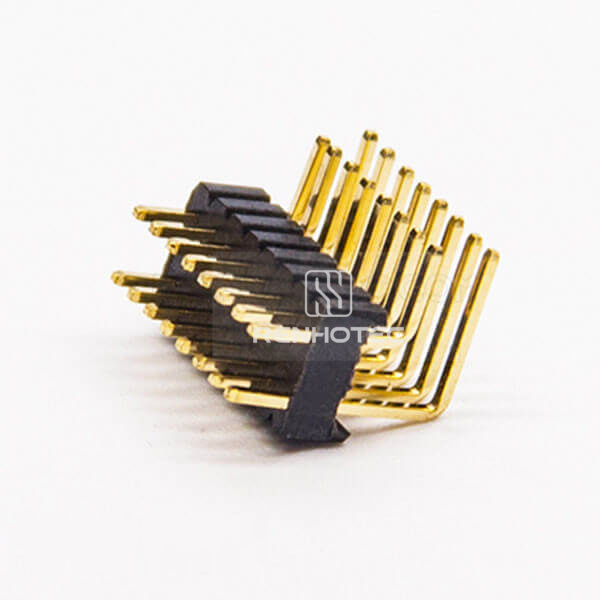

2×8 dual-row male header with 1.27 mm pitch; right-angle through-hole mounting.
- GenderMale
- OrientationRight Angle
- Mounting TypeDIP / Through Hole
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Gender
- Male
- Orientation
- Right Angle
- Mounting Type
- DIP / Through Hole
- Pitch
- 1.27 mm
- Number of Rows
- Dual Row
- Contact configuration
- 2×8PIN
Material
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Before you specify
Selection guide
Pin Header Connector with Male, Right Angle. Mounting: DIP, Through Hole.
Pitch: 1.27 mm.
The dual-row contact arrangement is 2×8.
RHT-603-3008
