Pin Header Connector

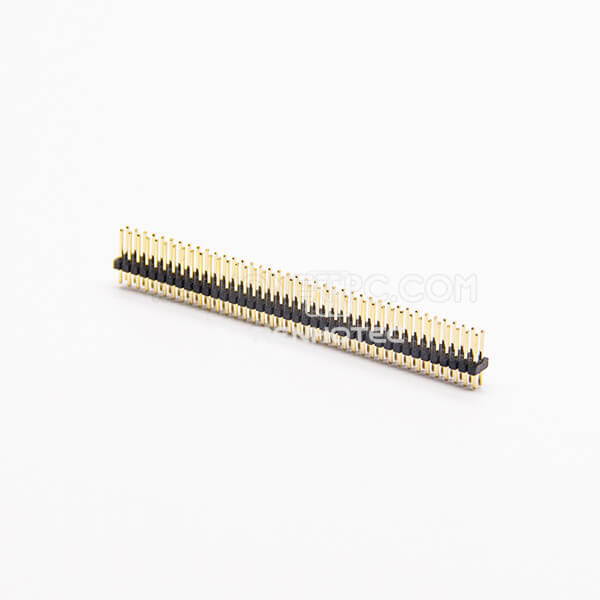

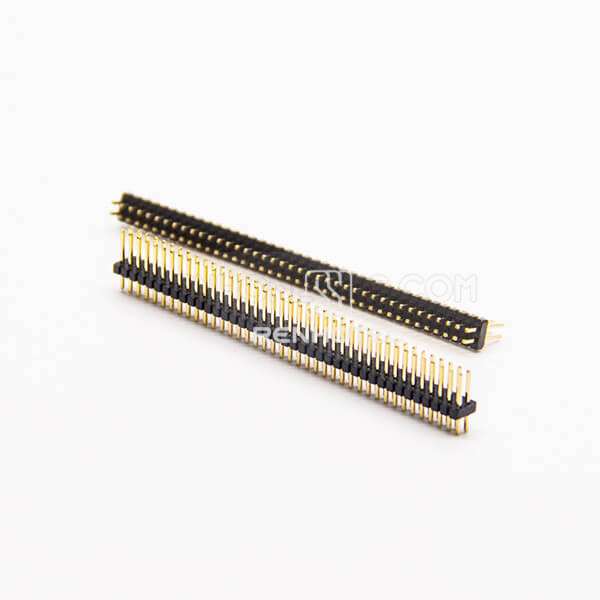

80-Pin Male Header, 2×40, 1.27 mm Pitch
- Pin Count80 Pin
- GenderMale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Gender
- Male
- Orientation
- Straight
- Mounting Type
- DIP / Through Hole
- Pitch
- 1.27 mm
- Number of Rows
- Dual Row
- Pin Count
- 80 Pin
- Contact configuration
- 2 × 40
Material
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Before you specify
Selection guide
Straight male header with two rows of 40 contacts, giving 80 contacts in total. It has 1.27 mm pitch and through-hole mounting.
RHT-603-3007
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
80-Pin Male Header, 2×40, 1.27 mm Pitch- Product family
- Pin Header Connector
- Public Part No.
- RHT-603-3007
