Pin Header Connector

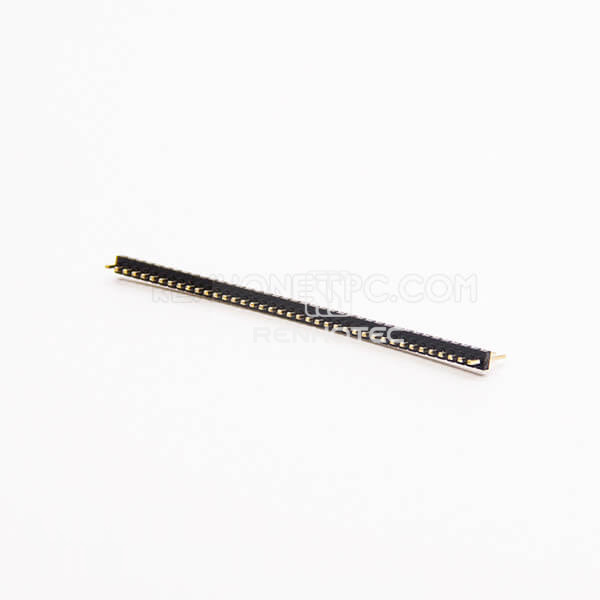

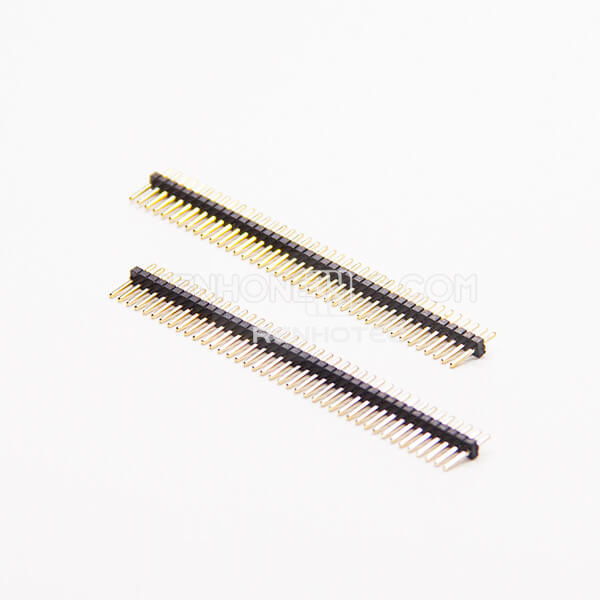

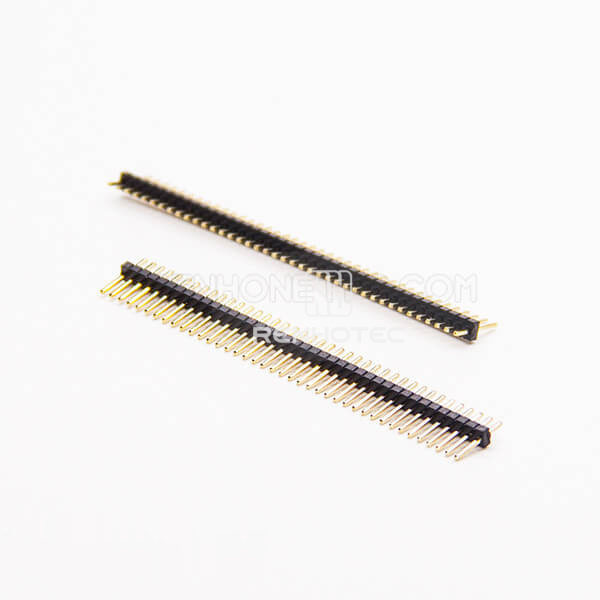

Straight Pin Header Male Single Row 1.27mm 1×40 PIN Through Hole

Public Part No. RHT-603-3006

Straight Pin Header Male Single Row 1.27mm 1×40 PIN Through Hole
Enlarge image
Straight Pin Header Male Single Row 1.27mm 1×40 PIN Through HoleStraight Pin Header Male Single Row 1.27mm 1×40 PIN Through HoleStraight Pin Header Male Single Row 1.27mm 1×40 PIN Through HoleStraight Pin Header Male Single Row 1.27mm 1×40 PIN Through Hole

Key specifications

Gender
Male
Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

Pin Header Connector with Male, Straight. Mounting: Through Hole.

Pitch: 1.27 mm.

The single-row contact arrangement is 1×40.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Male
Orientation
Straight
Mounting Type
Through Hole
Pitch
1.27 mm
Number of Rows
Single Row
Contact configuration
1×40PIN

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
