Pin Header Connector

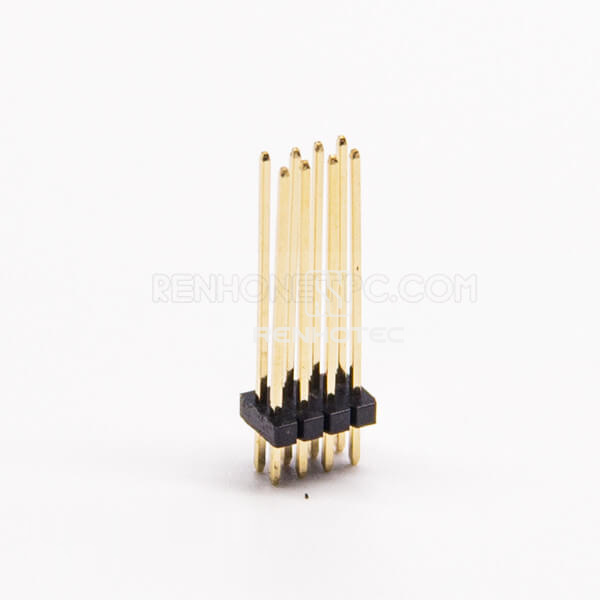

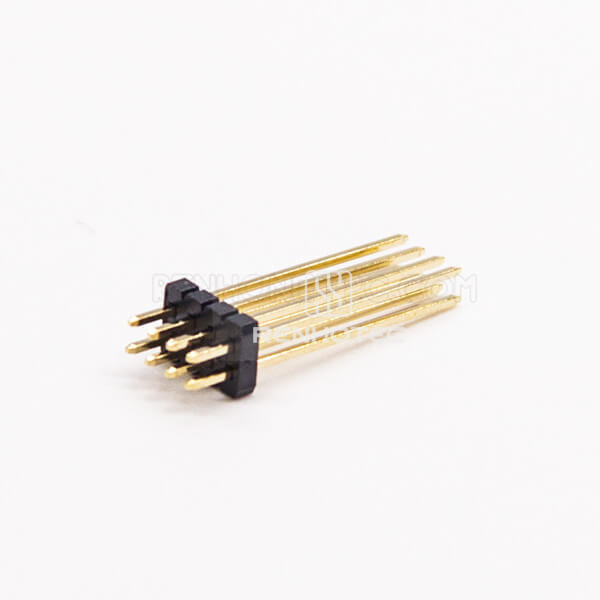

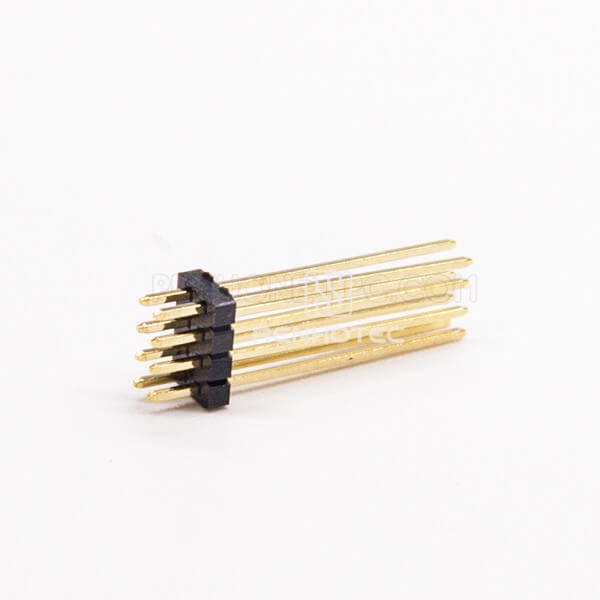

Pin Header Connector RHT-603-3005

Public Part No. RHT-603-3005

Pin Header Connector RHT-603-3005
Enlarge image
Pin Header Connector RHT-603-3005Pin Header Connector RHT-603-3005Pin Header Connector RHT-603-3005Pin Header Connector RHT-603-3005

Key specifications

Gender
Male
Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

Pin Header Connector with Male, Straight. Mounting: Through Hole.

Pitch: 1.27 mm.

The dual-row contact arrangement is 2×4.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Male
Orientation
Straight
Mounting Type
Through Hole
Pitch
1.27 mm
Number of Rows
Dual Row
Contact configuration
2×4PIN

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
