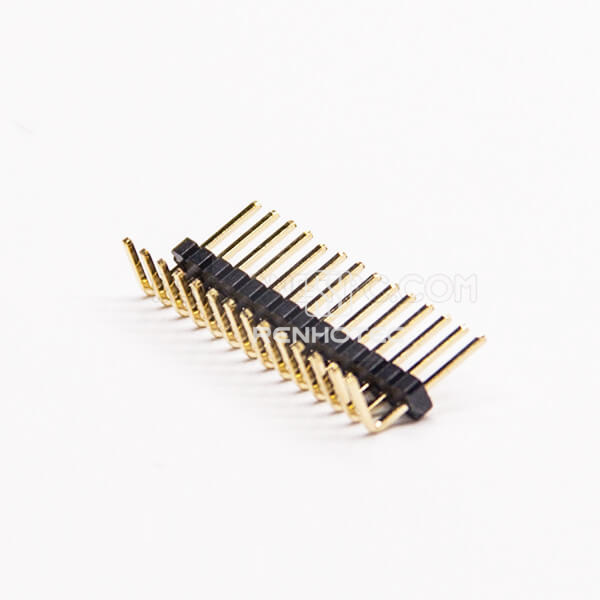

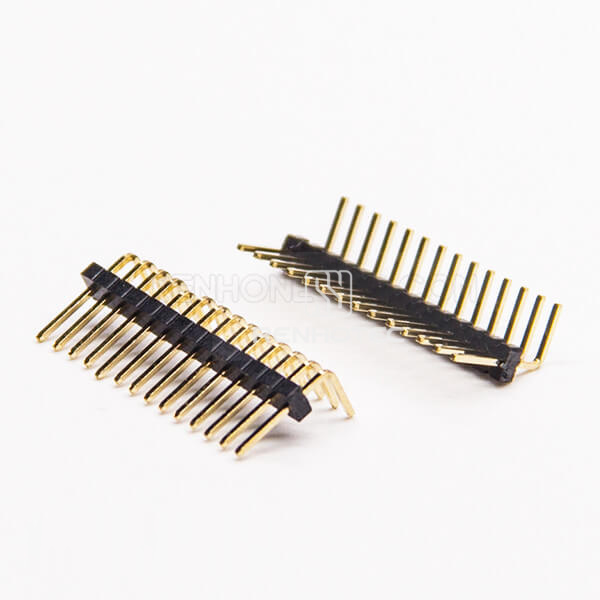

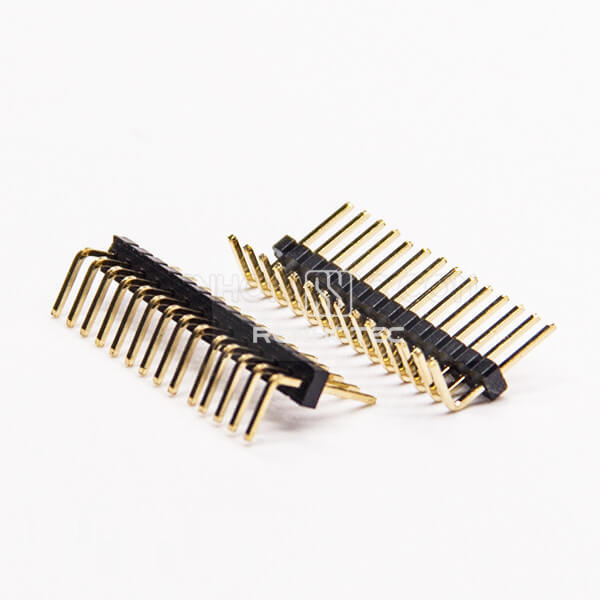

Pin Header Connector RHT-603-3004

Public Part No. RHT-603-3004

Pin Header Connector RHT-603-3004
Enlarge image
Pin Header Connector RHT-603-3004Pin Header Connector RHT-603-3004Pin Header Connector RHT-603-3004Pin Header Connector RHT-603-3004

Key specifications

Gender
Male
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Request QuoteFull specifications

Overview

Pin Header Connector with Male, Right Angle. Mounting: DIP, Through Hole.

Pitch: 1.27 mm.

The single-row contact arrangement is 1×14.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Male
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Pitch
1.27 mm
Number of Rows
Single Row
Contact configuration
1×14PIN

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
