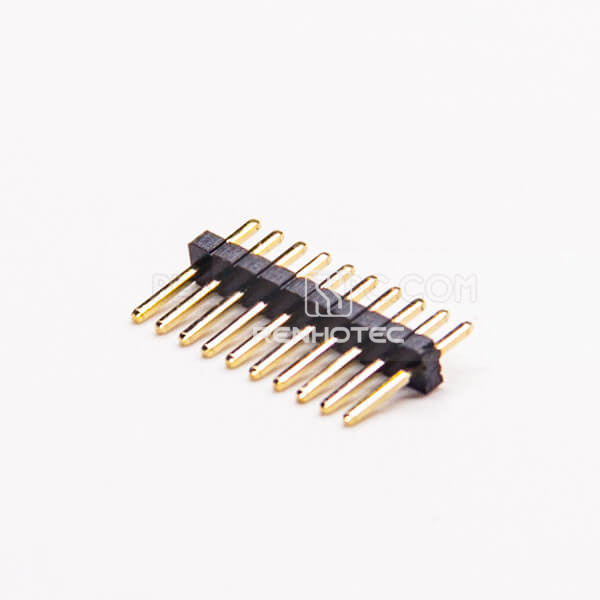

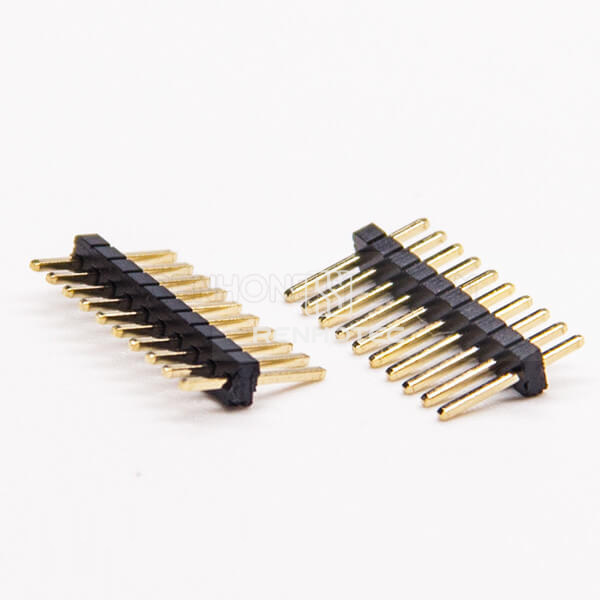

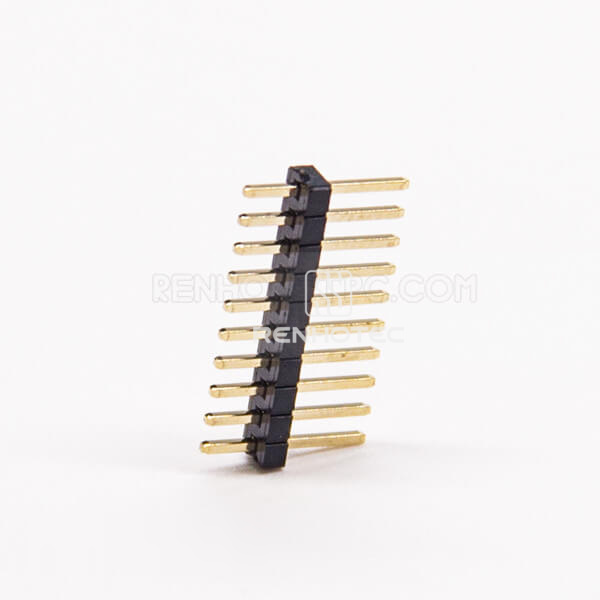

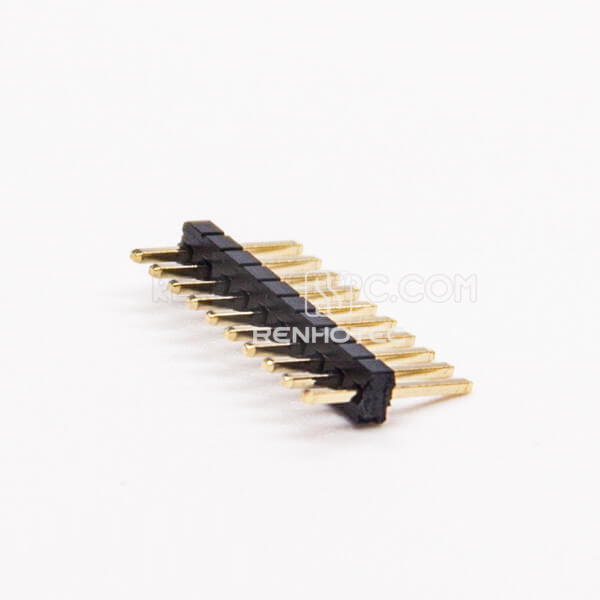

Pin Header Connector RHT-603-3003

Public Part No. RHT-603-3003

Pin Header Connector RHT-603-3003
Enlarge image
Pin Header Connector RHT-603-3003Pin Header Connector RHT-603-3003Pin Header Connector RHT-603-3003Pin Header Connector RHT-603-3003

Key specifications

Gender
Male
Orientation
Straight
Mounting Type
DIP
Request QuoteFull specifications

Overview

Pin Header Connector with Male, Straight. Mounting: DIP.

Pitch: 1.27 mm.

The single-row contact arrangement is 1×10.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Male
Orientation
Straight
Mounting Type
DIP
Pitch
1.27 mm
Number of Rows
Single Row
Contact configuration
1×10

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
