Pin Header Connector

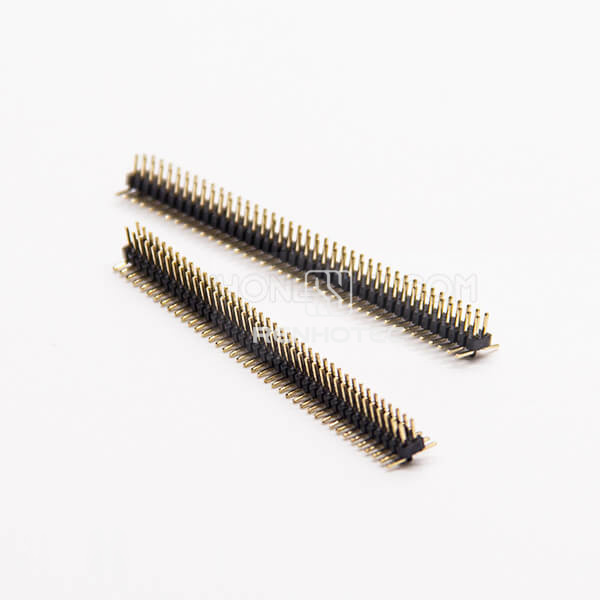

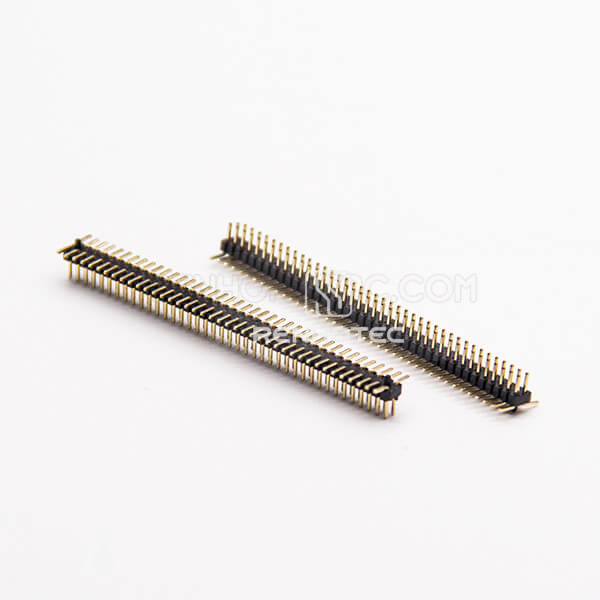

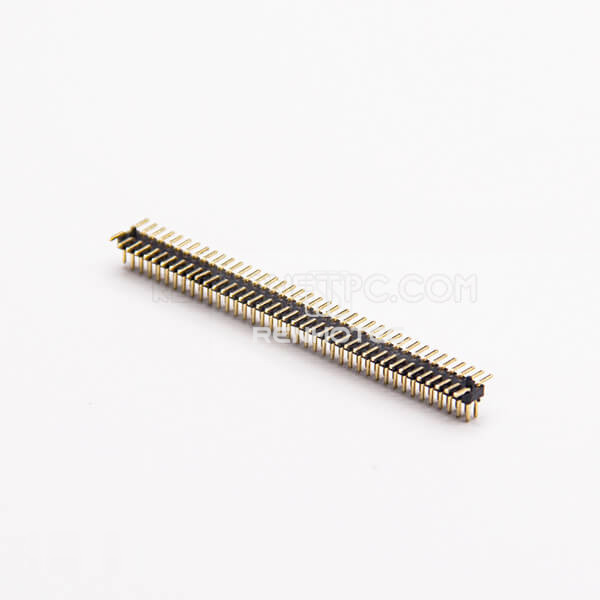

Pin Header Connector RHT-603-3002

Part No.RHT-603-3002

2×40 dual-row male header; straight SMT mounting. Pitch notation: 1.0 PH.

  • GenderMale
  • OrientationStraight
  • Mounting TypeSMT

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Male
Orientation
Straight
Mounting Type
SMT
Number of Rows
Dual Row
Pitch notation
1.0 PH
Contact configuration
2×40 PIN

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Before you specify

Selection guide

Pin Header Connector with Male, Straight. Mounting: SMT.

The dual-row contact arrangement is 2×40. The pitch notation is 1.0 PH.
