Terminal Blocks

Pluggable Terminal block Connector PCB Board-to-wire

Public Part No. RHT-665-2502

Pluggable Terminal block Connector PCB Board-to-wire
Enlarge image
Pluggable Terminal block Connector PCB Board-to-wirePluggable Terminal block Connector PCB Board-to-wirePluggable Terminal block Connector PCB Board-to-wirePluggable Terminal block Connector PCB Board-to-wire

Key specifications

Pin Count
12 Pin
Orientation
Right Angle
Mounting Type
PCB Mount
Termination Type
Crimp
Request QuoteFull specifications

Overview

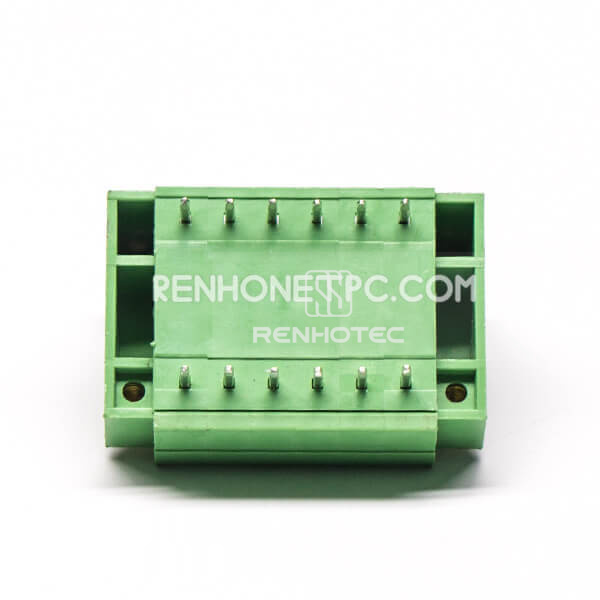

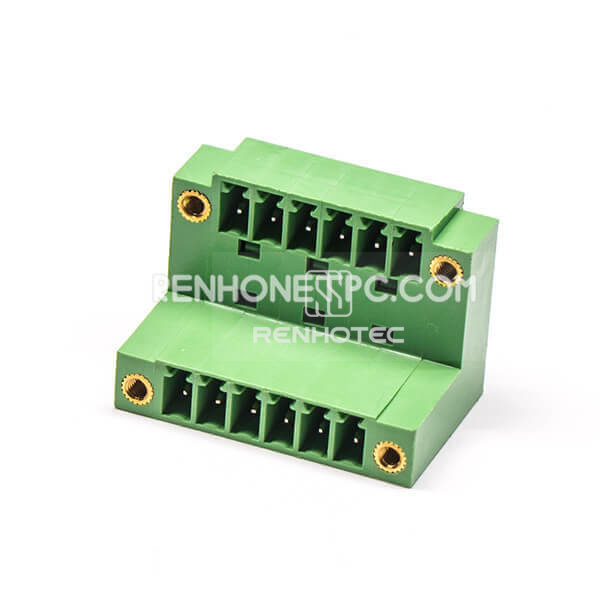

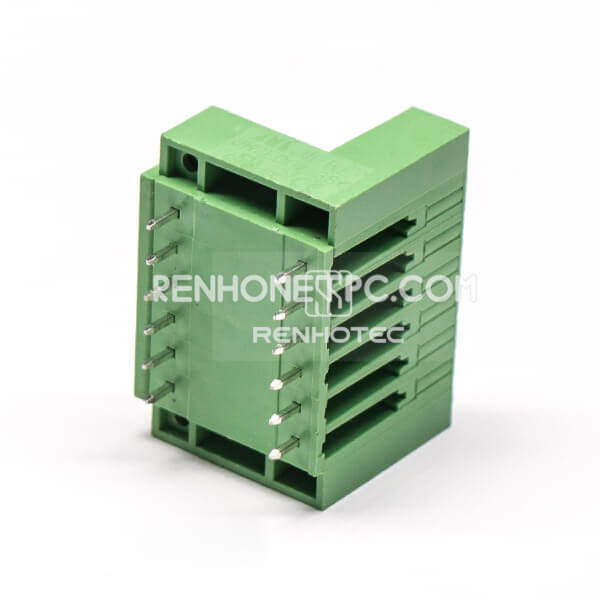

12-pin green pluggable terminal block with right-angle orientation, PCB mounting. Pitch options listed: 5.0mm/5.08mm. Confirm the required option before matching the footprint or mating part. Crimp termination. Rated current 20 A; rated voltage 300 V. Wire range: 14-22 AWG.

Full Specifications

Electrical

Current Rating
20A
Voltage Rating
300V
Rate current options
10A 15A 20A 30A
Withstanding voltage
AC2000V/1Min
Insulation resistance
5000MΩ/1000V

Mechanical

Pin Count
12 Pin
Orientation
Right Angle
Mounting Type
PCB Mount
Termination Type
Crimp
Pitch options
5.0mm/5.08mm
Contact-count options
2P-30P
Wire range
14-22AWG

Material

Color
Green

Environmental

Operating Temperature
-40 to 105 °C
MAX soldering
+250ºC for 5 sec
