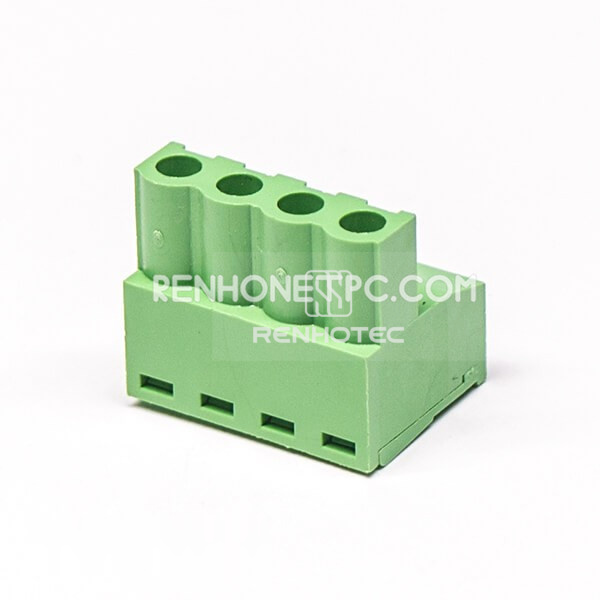

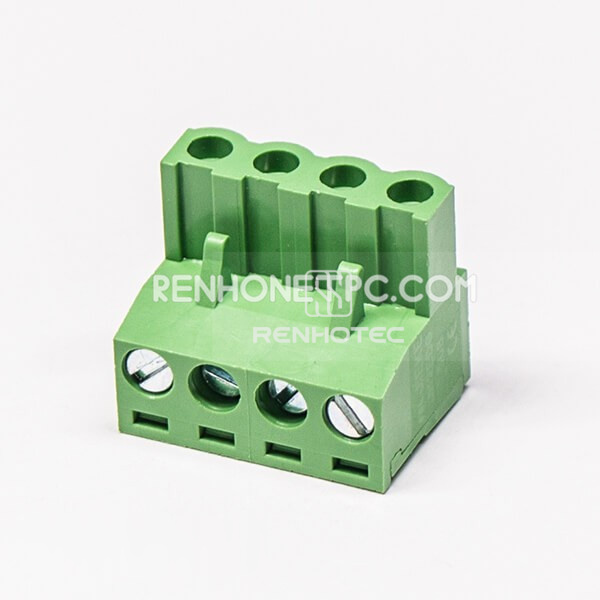

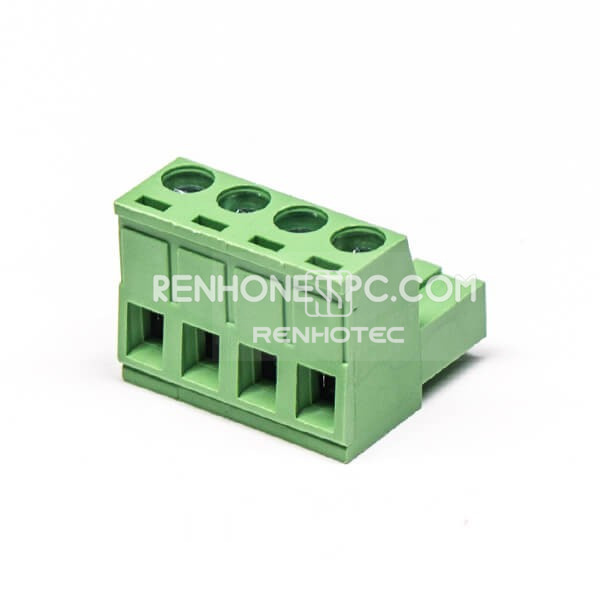

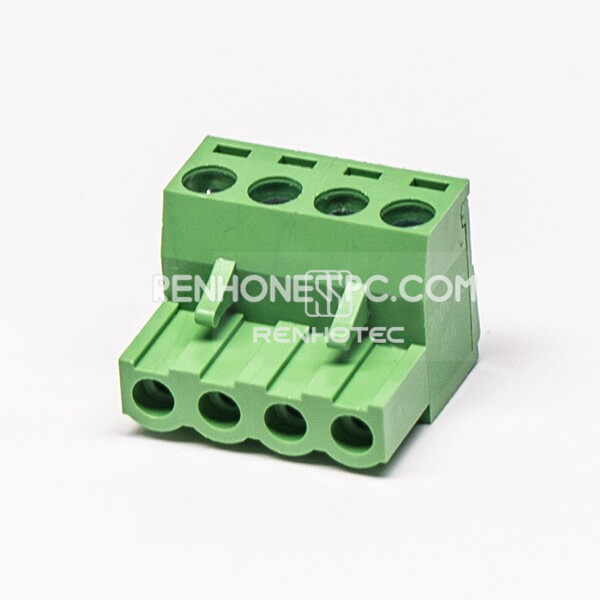

Pluggable Terminal Block 90 Degree Angled Hole Cable Connector

Public Part No. RHT-665-2559

Pluggable Terminal Block 90 Degree Angled Hole Cable Connector
Enlarge image
Pluggable Terminal Block 90 Degree Angled Hole Cable ConnectorPluggable Terminal Block 90 Degree Angled Hole Cable ConnectorPluggable Terminal Block 90 Degree Angled Hole Cable ConnectorPluggable Terminal Block 90 Degree Angled Hole Cable Connector

Key specifications

Orientation
Right Angle
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

Green pluggable terminal block with right-angle orientation, through-hole mounting. Pitch options listed: 5.00/5.08mm. Confirm the required option before matching the footprint or mating part. Rated current 20 A; rated voltage 300 V.

Full Specifications

Electrical

Current Rating
20A
Voltage Rating
300V

Mechanical

Orientation
Right Angle
Mounting Type
Through Hole
Pitch options
5.00/5.08mm

Material

Color
Green
