Terminal Blocks

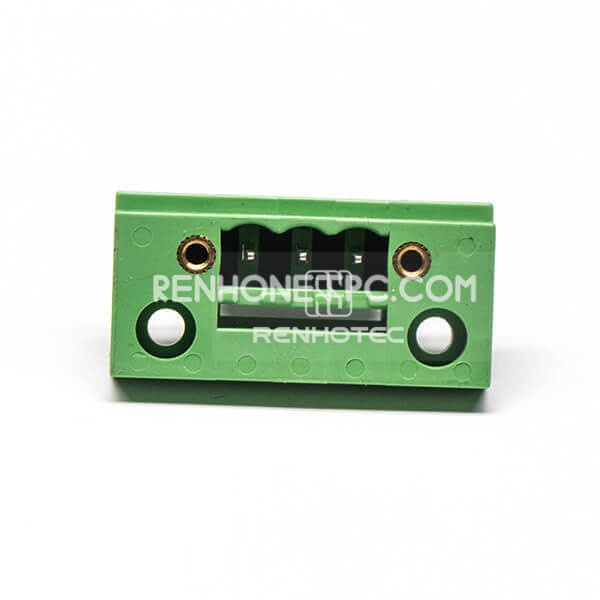

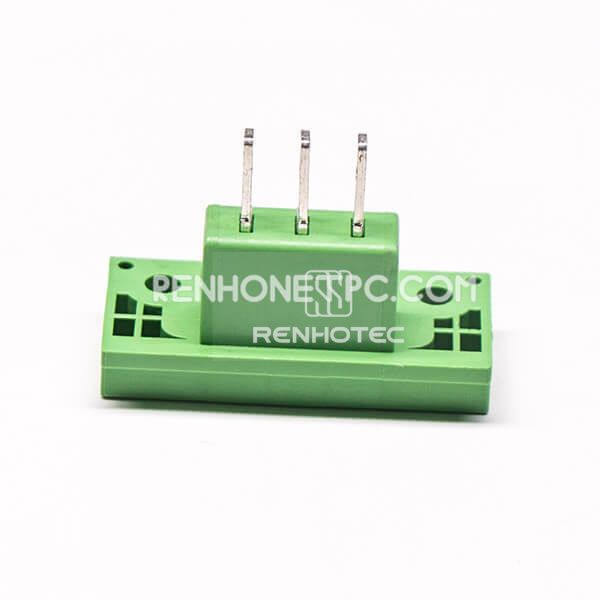

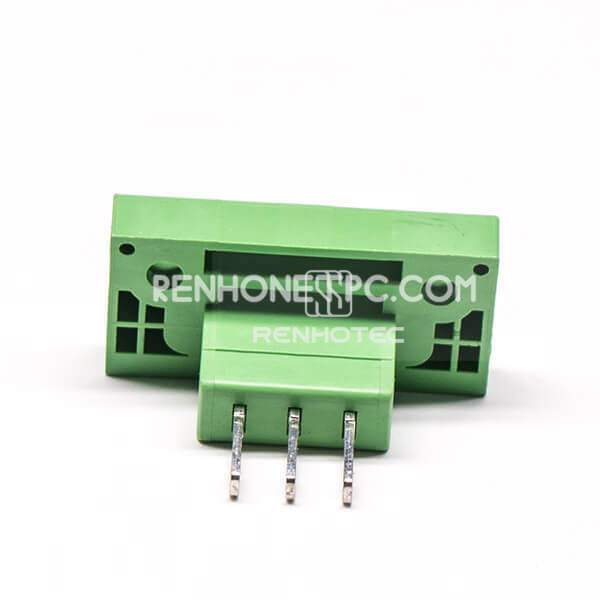

Plug in Terminal Block Connector 3 Pin with High Quality

Public Part No. RHT-665-2503

Plug in Terminal Block Connector 3 Pin with High Quality
Enlarge image
Plug in Terminal Block Connector 3 Pin with High QualityPlug in Terminal Block Connector 3 Pin with High QualityPlug in Terminal Block Connector 3 Pin with High QualityPlug in Terminal Block Connector 3 Pin with High Quality

Key specifications

Pin Count
3 Pin
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount
Request QuoteFull specifications

Overview

3-pin male green pluggable terminal block with straight orientation, PCB mounting. Pitch options listed: 5.0mm/5.08mm. Confirm the required option before matching the footprint or mating part. Rated current 20 A; rated voltage 300 V. Wire range: 14-22 AWG.

Full Specifications

Electrical

Current Rating
20A
Voltage Rating
300V
Rate current options
10A 15A 20A 30A
Withstanding voltage
AC2000V/1Min
Insulation resistance
5000MΩ/1000V

Mechanical

Pin Count
3 Pin
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount
Pitch options
5.0mm/5.08mm
Contact-count options
2P-30P
Wire range
14-22AWG

Material

Color
Green

Environmental

Operating Temperature
-40 to 105 °C
MAX soldering
+250ºC for 5 sec
