Terminal Blocks

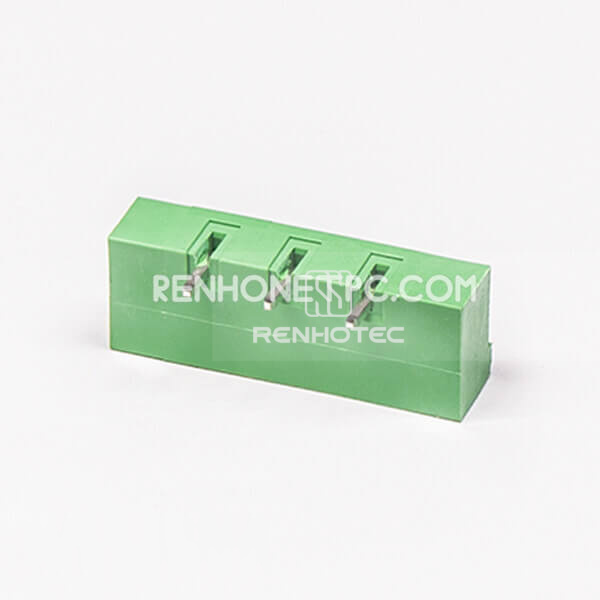

PCB Terminal Blocks 3pin Plug Headers with 2 Screw Holes Connector

Public Part No. RHT-665-2524

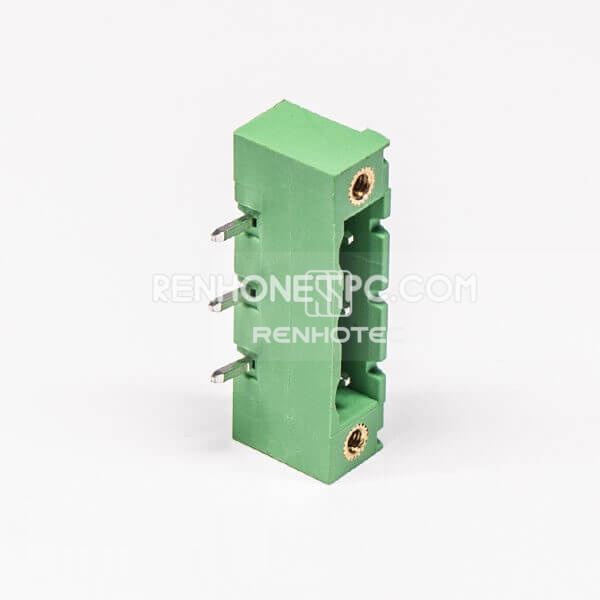

PCB Terminal Blocks 3pin Plug Headers with 2 Screw Holes Connector
Enlarge image
PCB Terminal Blocks 3pin Plug Headers with 2 Screw Holes ConnectorPCB Terminal Blocks 3pin Plug Headers with 2 Screw Holes Connector

Key specifications

Pin Count
3 Pin
Gender
Male
Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

3-pin male green pluggable terminal block with straight orientation, through-hole mounting. Pitch options listed: 3.50mm/3.81mm. Confirm the required option before matching the footprint or mating part. 2 screw holes. Rated current 10 A; rated voltage 300 V.

Full Specifications

Electrical

Current Rating
10A
Voltage Rating
300V

Mechanical

Pin Count
3 Pin
Gender
Male
Orientation
Straight
Mounting Type
Through Hole
Pitch options
3.50mm/3.81mm

Material

Color
Green
