Cable Assembly

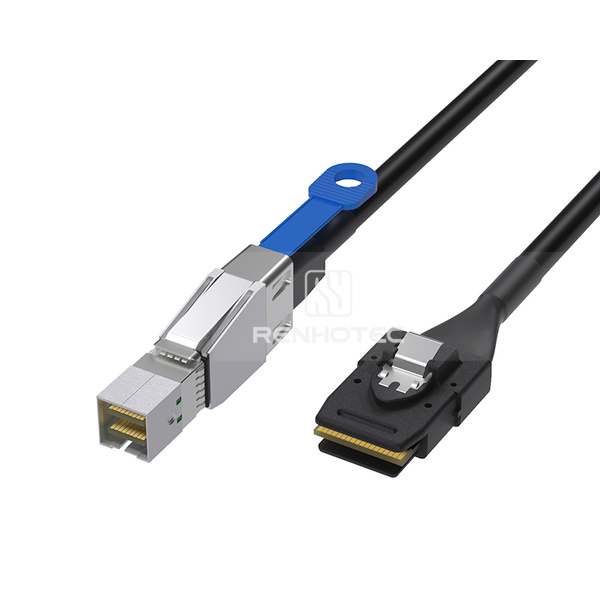

Mini-SAS HD SFF-8644 to SFF-8087 Cable

Public Part No. RHT-726-3019

Mini-SAS HD SFF-8644 to SFF-8087 Cable
Enlarge image

Key specifications

Connector Type
Mini-SAS / Mini-SAS HD
Request QuoteFull specifications Downloads

Overview

Cable assembly from Mini-SAS HD SFF-8644 to Mini-SAS SFF-8087.

An external Mini-SAS HD connector is paired with an internal Mini-SAS connector. Check the enclosure route between the external port and the internal SFF-8087 connection.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

Full Specifications

Mechanical

Connector Type
Mini-SAS / Mini-SAS HD
Connector A
Mini-SAS HD SFF-8644
Connector B
Mini-SAS SFF-8087
Connector A quantity
1
Connector B quantity
1

Downloads

Drawing (PDF)
