Cable Assembly

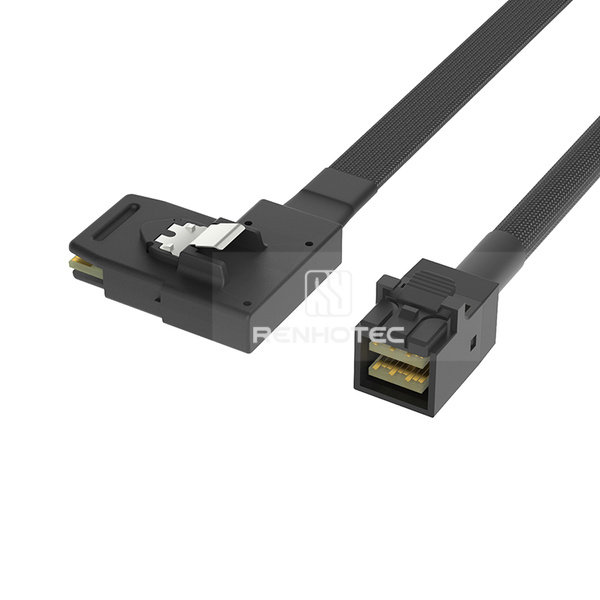

Mini-SAS HD SFF-8643 to SFF-8087 Cable, Right bend
Cable assembly from Mini-SAS HD SFF-8643 to Mini-SAS SFF-8087. Includes right bend connector B.
- Connector TypeMini-SAS / Mini-SAS HD
- Connector AMini-SAS HD SFF-8643
- Connector BMini-SAS SFF-8087
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Connection
- Connector Type
- Mini-SAS / Mini-SAS HD
- Connector A
- Mini-SAS HD SFF-8643
- Connector B
- Mini-SAS SFF-8087
- Connector A quantity
- 1
- Connector B quantity
- 1
Mechanical
- Connector B orientation
- Right bend
Engineering resources
Check fit and wiring.
RHT-726-3006
Open drawing PDF ↗Before you specify
Selection guide
Cable assembly from Mini-SAS HD SFF-8643 to Mini-SAS SFF-8087. Includes right bend connector B.
The bend is at the SFF-8087 Mini-SAS end. Check that exit direction when pairing it with the internal Mini-SAS HD connection.
Configuration details
- Connector B orientation: Right bend.
Selection information
Provide the mating connector references, required pin assignment and cable length when requesting a quotation.
RHT-726-3006
