Mini-SAS HD SFF-8643 to 4 x SATA Breakout Cable, Right angle

Public Part No. RHT-726-3005

Mini-SAS HD SFF-8643 to 4 x SATA Breakout Cable, Right angle
Enlarge image

Key specifications

Connector Type
Mini-SAS HD / SATA
Request QuoteFull specifications Downloads

Overview

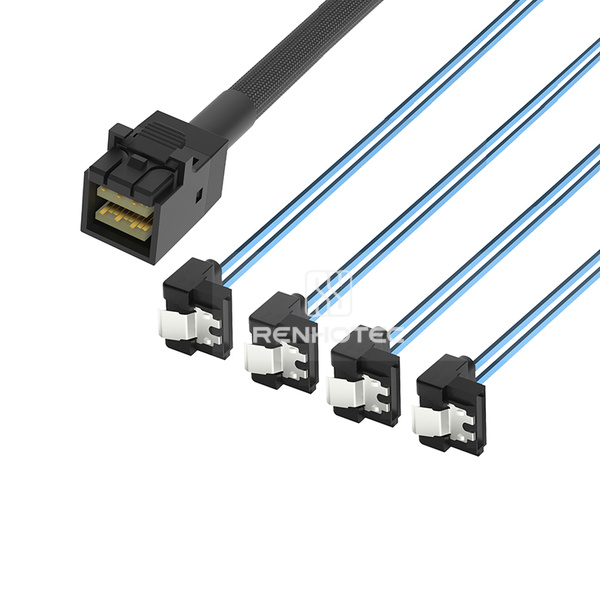

Cable assembly from Mini-SAS HD SFF-8643 to 4 SATA branches. Includes right angle connector B.

Four right-angle SATA ends provide angled exits at the drive connections. Check their orientation against the drive layout before routing the Mini-SAS HD cable.

Configuration details

  • Connector B orientation: Right angle.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

Full Specifications

Mechanical

Connector Type
Mini-SAS HD / SATA
Connector A
Mini-SAS HD SFF-8643
Connector B
SATA
Connector A quantity
1
Connector B quantity
4
Connector B orientation
Right angle
