Cable Assembly

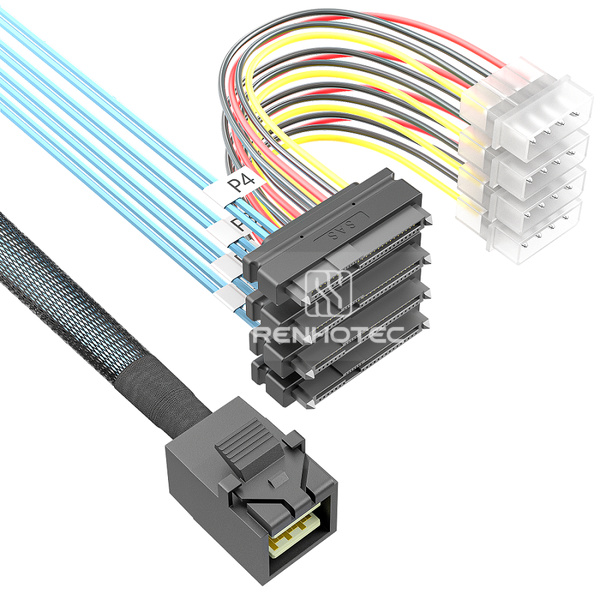

Mini-SAS HD SFF-8643 to 4 x SAS SFF-8482 Breakout Cable, 4-pin power
Cable assembly from Mini-SAS HD SFF-8643 to 4 SAS SFF-8482 branches. Includes 4-pin peripheral power connectors.
- Connector TypeMini-SAS HD / SAS
- Connector AMini-SAS HD SFF-8643
- Connector BSAS SFF-8482
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Connection
- Connector Type
- Mini-SAS HD / SAS
- Connector A
- Mini-SAS HD SFF-8643
- Connector B
- SAS SFF-8482
- Connector A quantity
- 1
- Connector B quantity
- 4
Mechanical
- Power connection
- 4-pin peripheral power connectors
Material
- Signal wire gauge
- 30 AWG
Engineering resources
Check fit and wiring.
RHT-726-3013
Open drawing PDF ↗Before you specify
Selection guide
Cable assembly from Mini-SAS HD SFF-8643 to 4 SAS SFF-8482 branches. Includes 4-pin peripheral power connectors.
The four SAS drive branches include four-pin peripheral power connections. Plan the drive-side signal and power routes together.
Configuration details
- Power connection: 4-pin peripheral power connectors.
- Signal wire gauge: 30 AWG.
Selection information
Provide the mating connector references, required pin assignment and cable length when requesting a quotation.
RHT-726-3013
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Mini-SAS HD SFF-8643 to 4 x SAS SFF-8482 Breakout Cable, 4-pin power- Product family
- Cable Assembly
- Public Part No.
- RHT-726-3013
