Cable Assembly

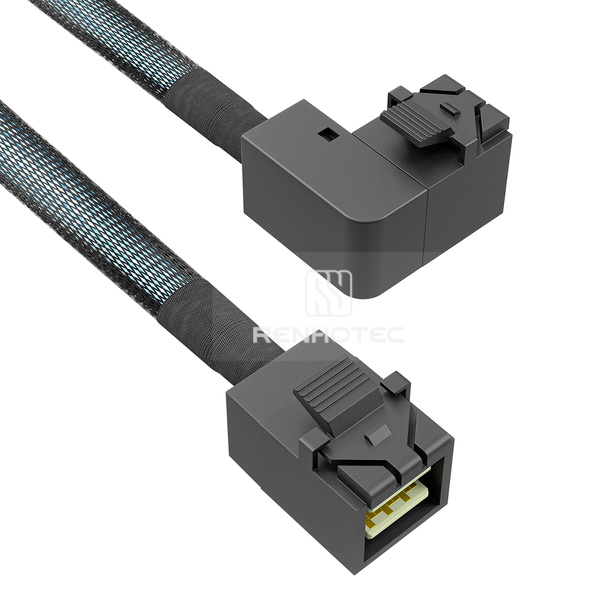

Mini-SAS HD SFF-8643 Cable, Left bend

Part No.RHT-726-3015

Cable assembly from Mini-SAS HD SFF-8643 to Mini-SAS HD SFF-8643. Includes left bend connector B.

  • Connector TypeMini-SAS HD
  • Connector AMini-SAS HD SFF-8643
  • Connector BMini-SAS HD SFF-8643

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Check the documents ↗

Connection

Connector Type
Mini-SAS HD
Connector A
Mini-SAS HD SFF-8643
Connector B
Mini-SAS HD SFF-8643
Connector A quantity
1
Connector B quantity
1

Mechanical

Connector B orientation
Left bend

Material

Signal wire gauge
30 AWG

Engineering resources

Check fit and wiring.

1 product document

Before you specify

Selection guide

Cable assembly from Mini-SAS HD SFF-8643 to Mini-SAS HD SFF-8643. Includes left bend connector B.

This version has a left-bend cable exit at one Mini-SAS HD end. Match the bend direction to the equipment layout and retain access to the release latch.

Configuration details

  • Connector B orientation: Left bend.
  • Signal wire gauge: 30 AWG.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

RHT-726-3015
