Cable Assembly

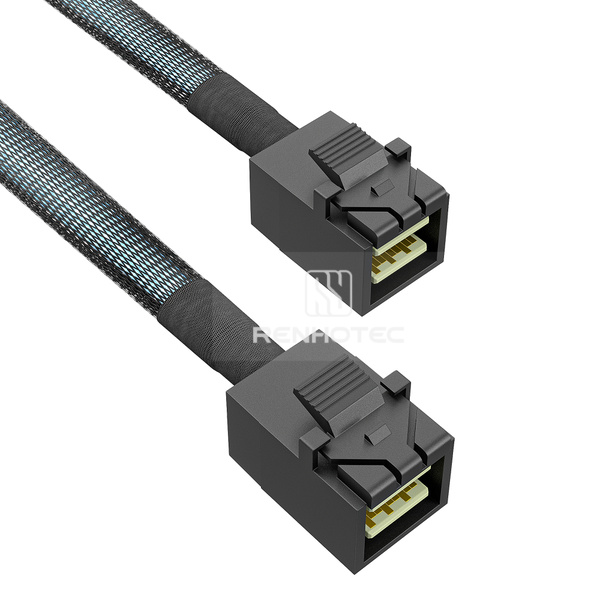

Mini-SAS HD SFF-8643 Cable
Cable assembly from Mini-SAS HD SFF-8643 to Mini-SAS HD SFF-8643.
- Connector TypeMini-SAS HD
- Connector AMini-SAS HD SFF-8643
- Connector BMini-SAS HD SFF-8643
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Connection
- Connector Type
- Mini-SAS HD
- Connector A
- Mini-SAS HD SFF-8643
- Connector B
- Mini-SAS HD SFF-8643
- Connector A quantity
- 1
- Connector B quantity
- 1
Engineering resources
Check fit and wiring.
RHT-726-3008
Open drawing PDF ↗Before you specify
Selection guide
Cable assembly from Mini-SAS HD SFF-8643 to Mini-SAS HD SFF-8643.
A single internal Mini-SAS HD connector is fitted at each end. Match the end-to-end wiring and allow room for the cable and release latches.
Selection information
Provide the mating connector references, required pin assignment and cable length when requesting a quotation.
RHT-726-3008
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Mini-SAS HD SFF-8643 Cable- Product family
- Cable Assembly
- Public Part No.
- RHT-726-3008
