Cable Assembly

Mini-SAS HD SFF-8643 8i to 2 x SlimSAS SFF-8654 4i Breakout Cable

Public Part No. RHT-726-3016

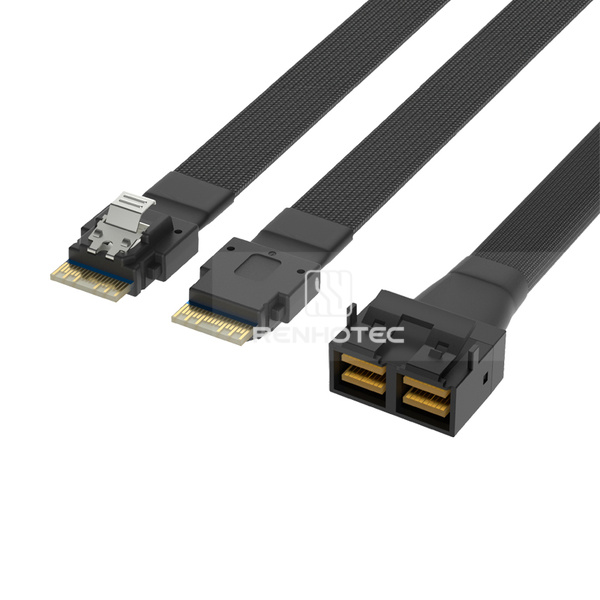

Mini-SAS HD SFF-8643 8i to 2 x SlimSAS SFF-8654 4i Breakout Cable
Enlarge image

Key specifications

Connector Type
Mini-SAS HD / SlimSAS
Request QuoteFull specifications

Overview

Cable assembly from Mini-SAS HD SFF-8643 8i to 2 SlimSAS SFF-8654 4i branches.

Two SlimSAS 4i branches are paired with one Mini-SAS HD 8i end. Check the branch allocation and all three mating positions.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

Full Specifications

Mechanical

Connector Type
Mini-SAS HD / SlimSAS
Connector A
Mini-SAS HD SFF-8643 8i
Connector B
SlimSAS SFF-8654 4i
Connector A quantity
1
Connector B quantity
2

Connector requirement

Request a quote

Share your connector requirements and the specifications you need.
