Cable Assembly

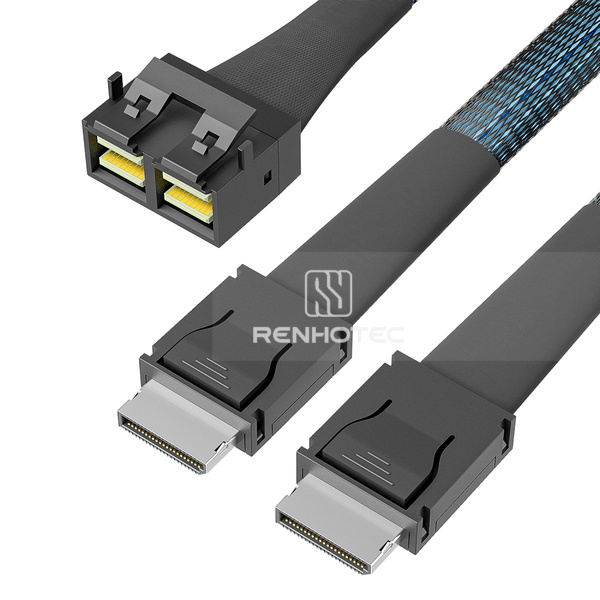

Mini-SAS HD SFF-8643 8i to 2 x OCuLink SFF-8611 Breakout Cable
Cable assembly from Mini-SAS HD SFF-8643 8i to 2 OCuLink SFF-8611 branches.
- Connector TypeMini-SAS HD / OCuLink
- Connector AMini-SAS HD SFF-8643 8i
- Connector BOCuLink SFF-8611
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Connection
- Connector Type
- Mini-SAS HD / OCuLink
- Connector A
- Mini-SAS HD SFF-8643 8i
- Connector B
- OCuLink SFF-8611
- Connector A quantity
- 1
- Connector B quantity
- 2
Material
- Signal wire gauge
- 32 AWG
Engineering resources
Check fit and wiring.
RHT-726-3009
Open drawing PDF ↗Before you specify
Selection guide
Cable assembly from Mini-SAS HD SFF-8643 8i to 2 OCuLink SFF-8611 branches.
Two OCuLink branches are paired with a single Mini-SAS HD 8i end. Confirm the lane assignment for each branch and the equipment pinout.
Configuration details
- Signal wire gauge: 32 AWG.
Selection information
Provide the mating connector references, required pin assignment and cable length when requesting a quotation.
RHT-726-3009
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Mini-SAS HD SFF-8643 8i to 2 x OCuLink SFF-8611 Breakout Cable- Product family
- Cable Assembly
- Public Part No.
- RHT-726-3009
